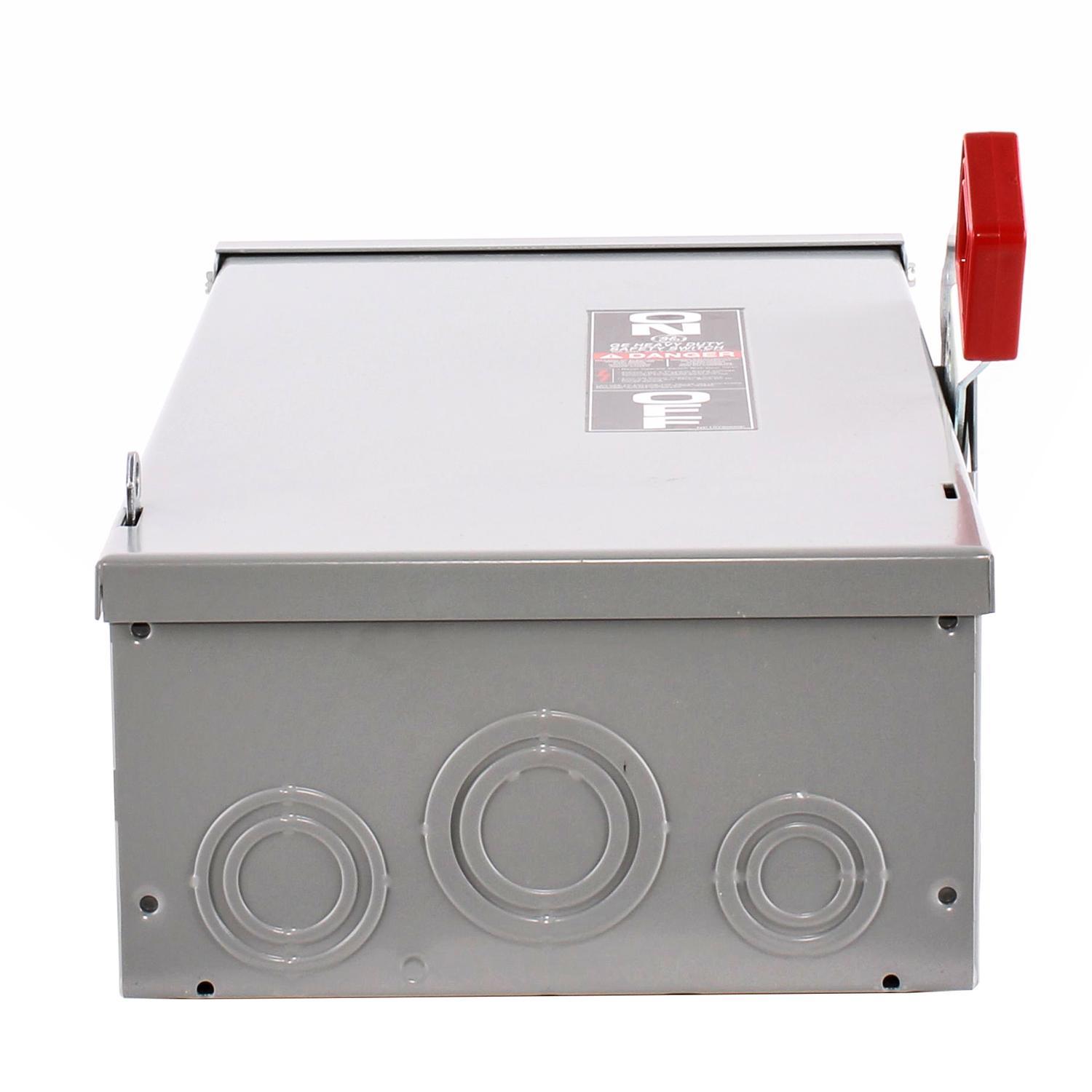

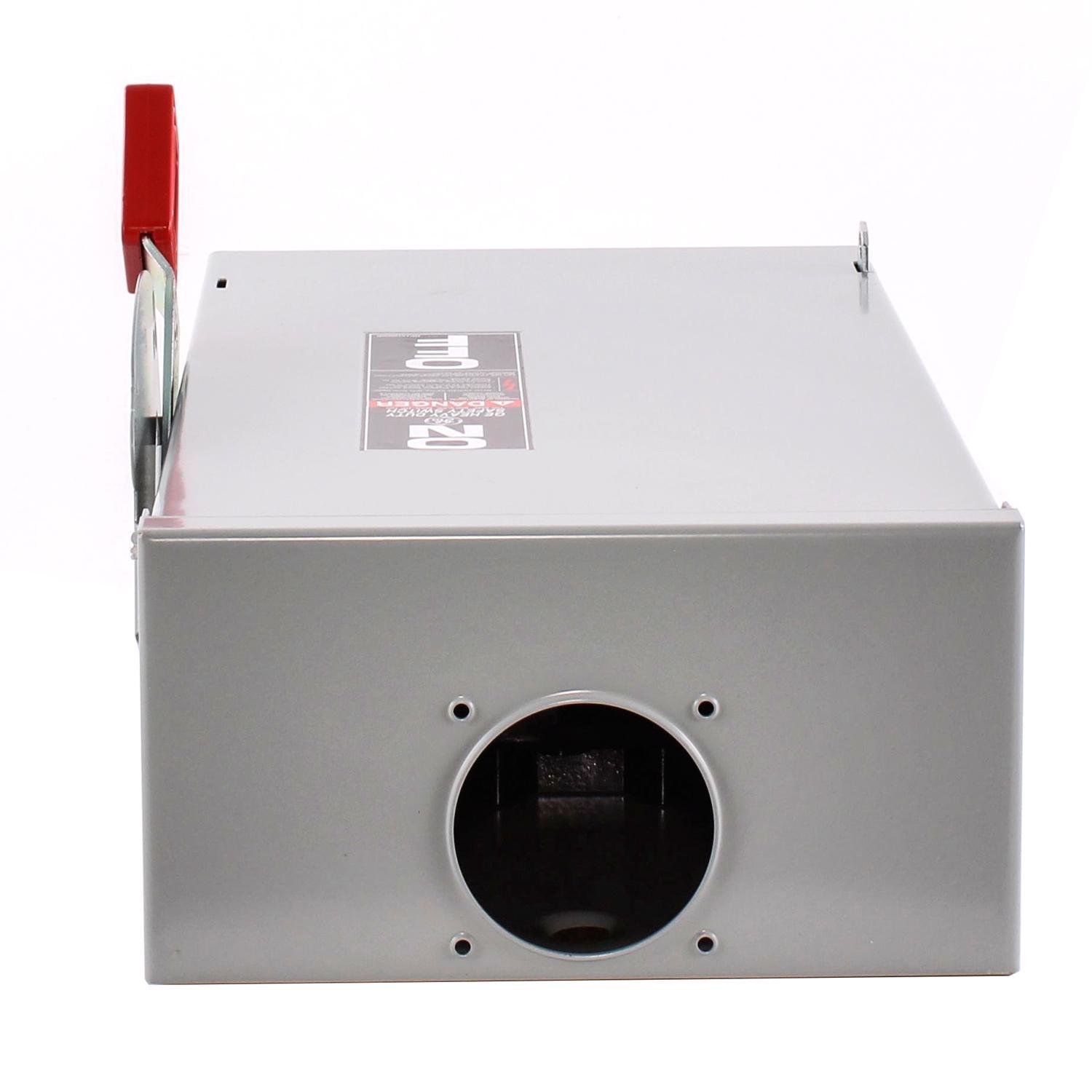

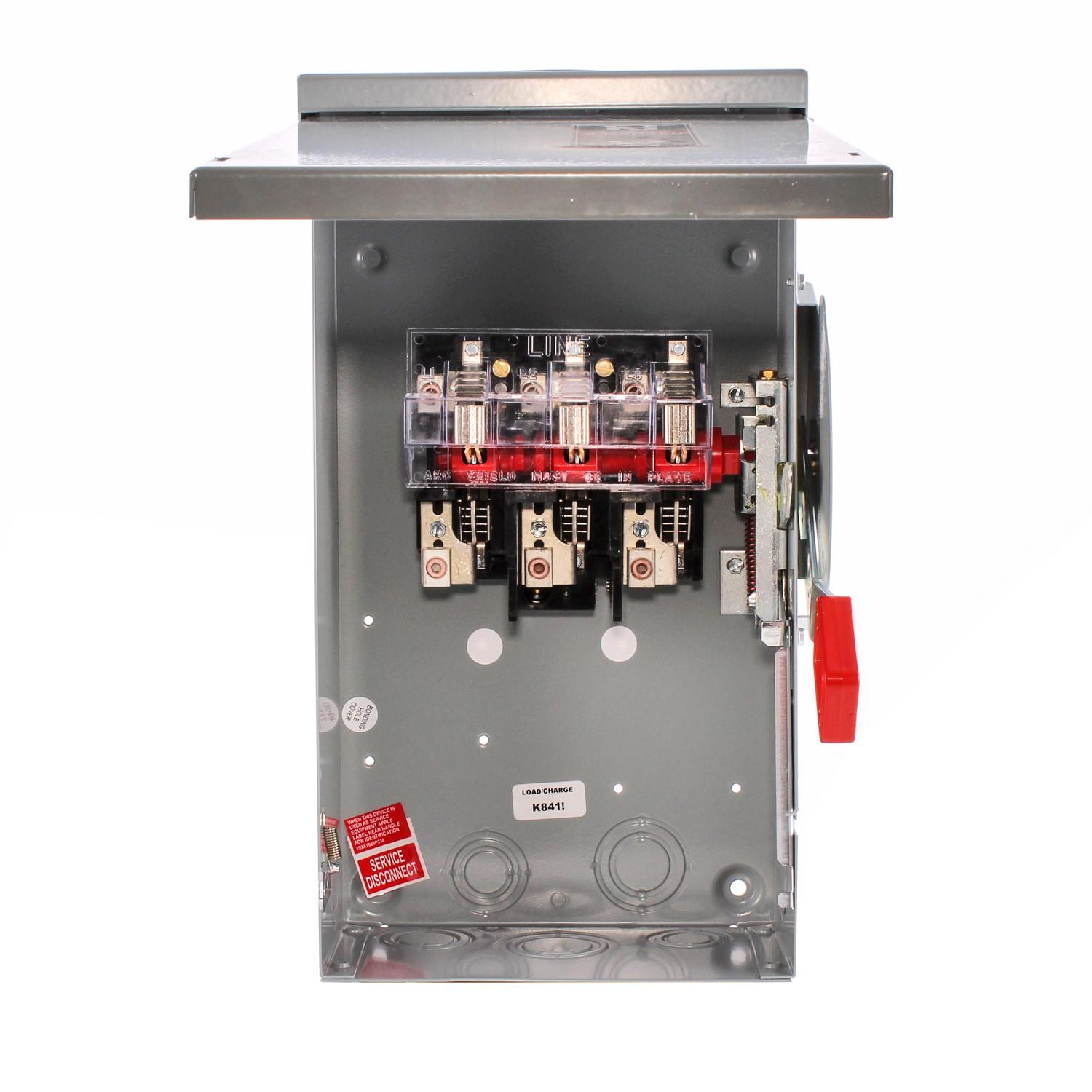

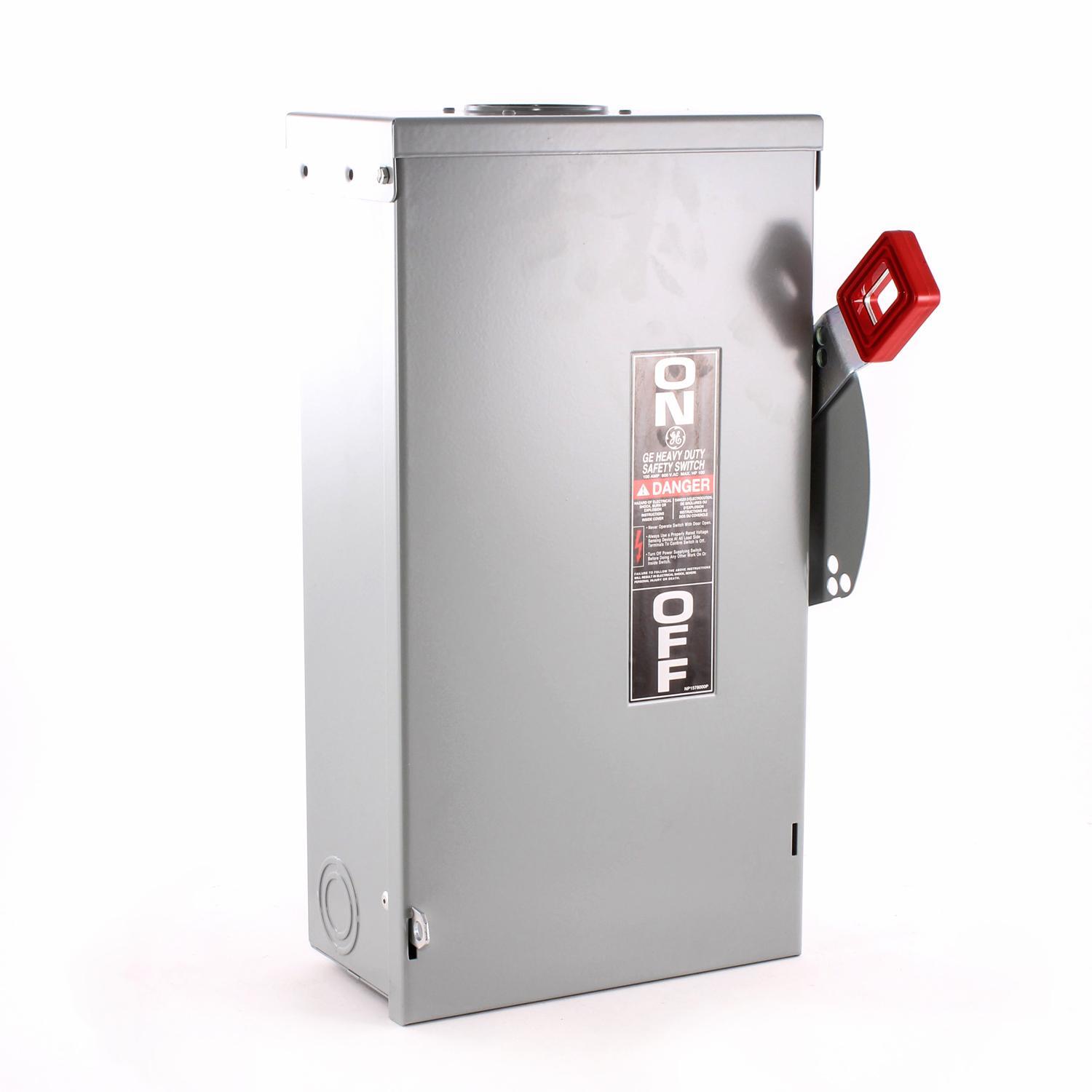

Description: GE Spec-Setter™ Safety Switch, Heavy Duty Non-Fusible, Series: THN, 600 V AC, 100 A, 100 hp, 3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, 60/75 deg C, 17.3 in H x 9.3 in W x 4.9 in D Dimensions

Manufacturer PN: THN3363R

UPC:  78316401133

Kendall Electric Inc PN: 2025686

Invoice Description:

THN3363R GE DISCONNECT SW


SPEC SHEET

How Can We Make This Page Better?

GE Spec-Setter™ THN3363R Heavy Duty Non-Fusible Safety Switch, 600 V AC, 100 A, 100 hp, 3 Poles

Log In for Pricing and Availability




Description

Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. listed to UL standard 98 enclosed and dead front switches. suitable for use as service equipment when installed in accordance with the national electrical code certified to CSA standard 22.2 no 4-04 enclosed and dead front switches. meets or exceeds NEMA KS1 standard for enclosed switches, type HD. fusible and non-fusible switches available (consult BuyLog for interrupt ratings). quick-make, quick-break mechanism. 60/75 deg C conductor rating. full cover interlocks.
GE Spec-Setter™ Safety Switch, Heavy Duty Non-Fusible, Series: THN, 600 V AC, 100 A, 100 hp, 3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, 60/75 deg C, 17.3 in H x 9.3 in W x 4.9 in D Dimensions

Specifications

 Actuator Type Handle
 Amperage Rating 100 A
 Application Commercial, Industrial, Electrical Distribution and Control Applications
 Brand Name GE
 Dimensions 17.3 in H x 9.3 in W x 4.9 in D
 Enclosure NEMA 3R
 Frequency Rating 50/60 Hz
 Horsepower 100 hp
 Manufacturer Part Number THN3363R
 Mounting Type Surface
 Number of Poles 3
 Number of Wires 3
 PART NUMBER KEYWORDS THN3363R ; 7650189 ; 783164011333 ; 78316401133 ; 00783164011333
 Phase 3
 Series THN
 Short Circuit Current Rating 200 kA
 Standards/Approvals Yes
 Temperature Rating 60/75 deg C
 Type Heavy Duty Non-Fusible
 Voltage Rating 600 V AC

Features

▪ Switches rated 800 to 1200 A use class L fuses and have a UL listed short circuit rating of 10000 rms symmetrical A
▪ Donut handle ideal for hook stick operation and accepts 3 padlocks in the off position
▪ Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication
▪ Self-leveling, 3-point mounting system
▪ Coin-proof, defeatable interlock
▪ Visible confirmation of plated blade contact positions
▪ Spring reinforced fuse clips assure reliable contact for cool operation
▪ Suitable for class H, K, J or R fuses, where applicable
▪ With class R fuses or J fuses, 30 to 600 A switches have UL listed short circuit rating of 200000 rms symmetrical A
▪ UL listed as service entrance equipment when installed in accordance with the national electric code
