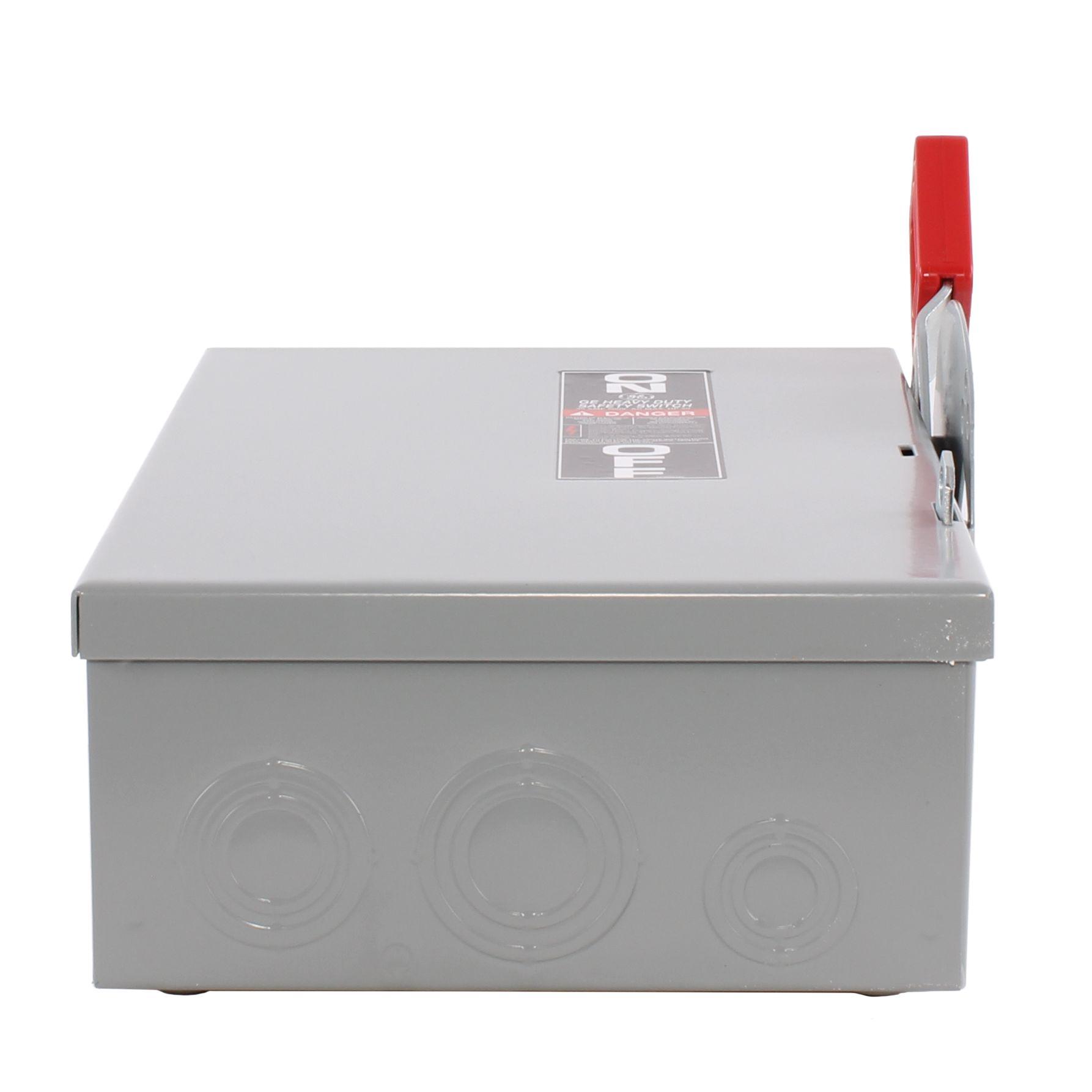

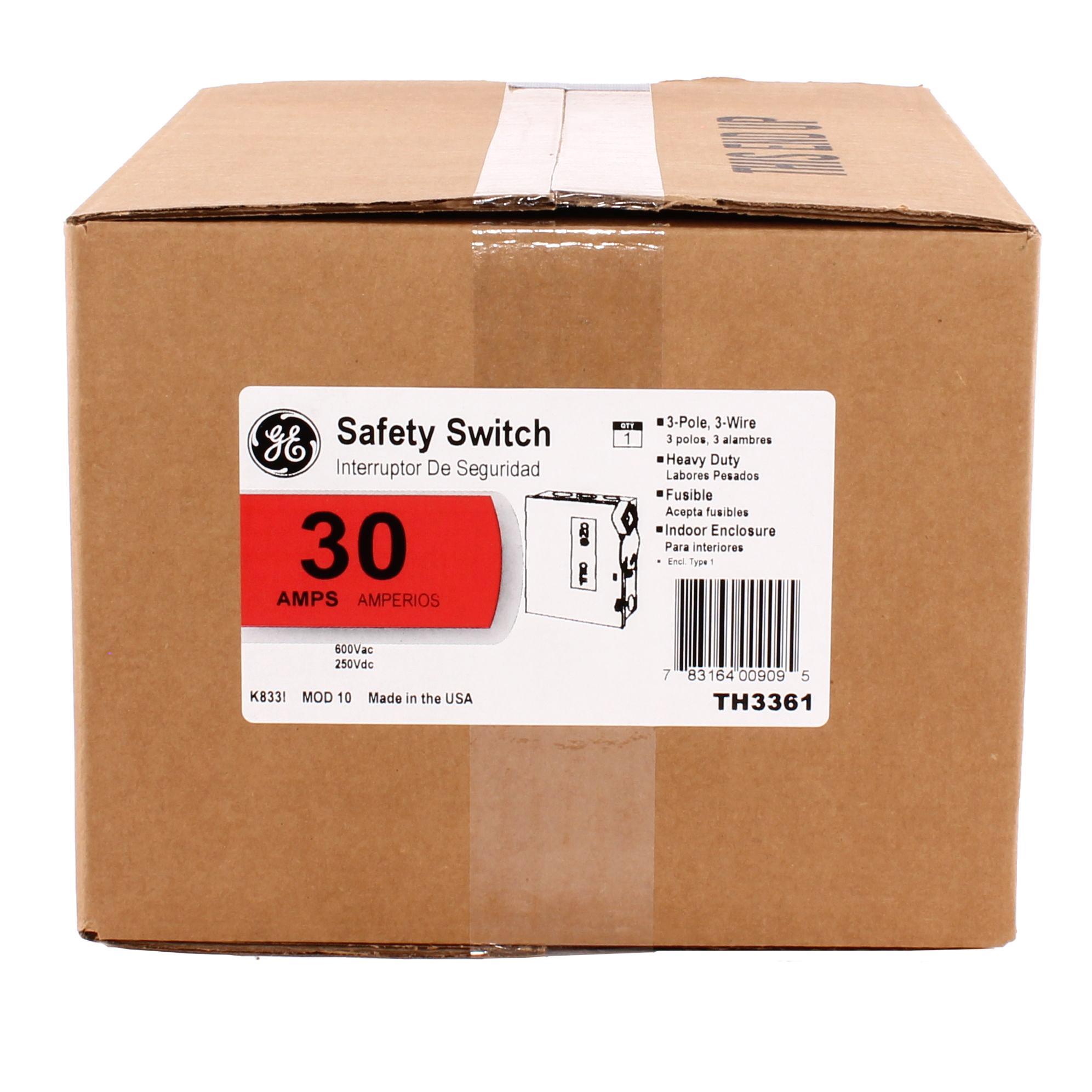

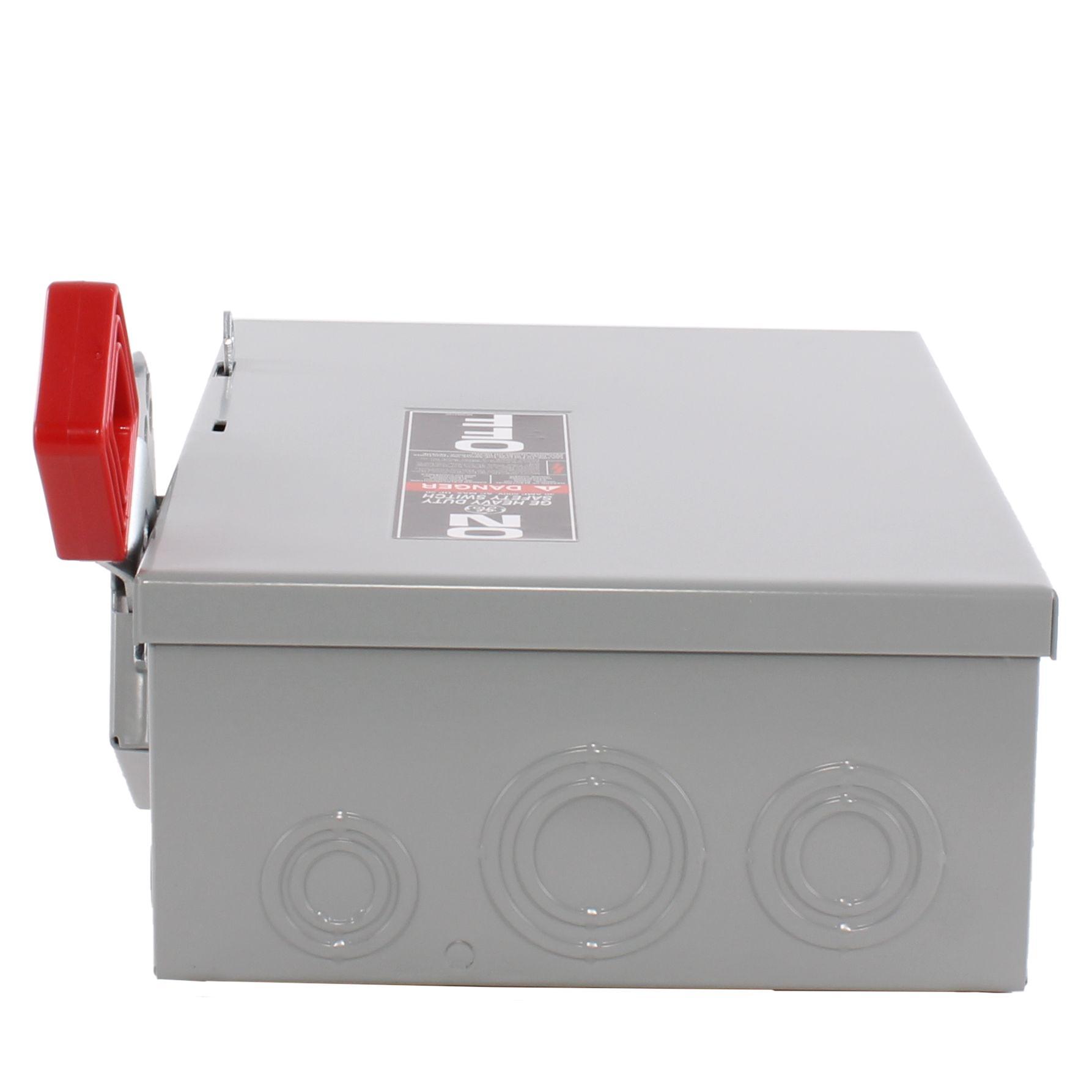

  • TH3361 GE 30A-600V-3P SW FUSIBLE
  • TH3361 GE 30A-600V-3P SW FUSIBLE
  • TH3361 GE 30A-600V-3P SW FUSIBLE
  • TH3361 GE 30A-600V-3P SW FUSIBLE
  • TH3361 GE 30A-600V-3P SW FUSIBLE
  • TH3361 GE 30A-600V-3P SW FUSIBLE

Description: GE Spec-Setter™ Safety Switch, Fusible Heavy Duty, Series: TH Series, 600 V AC, 30 A, 7-1/2 hp Standard Fuse/20 hp Time Delay, 3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, 60/75 deg C, 12.6 in H x 8.3 in W x 4 in D Dimensions

Manufacturer PN: TH3361

UPC:  78316400909

Kendall Electric Inc PN: 2019526

Invoice Description:

TH3361 GE 30A-600V-3P SW FUSIBLE


SPEC SHEET

How Can We Make This Page Better?

GE Spec-Setter™ TH3361 TH Series Fusible Heavy Duty Safety Switch, 600 V AC, 30 A, 7-1/2 hp Standard Fuse/20 hp Time Delay, 3 Poles

Log In for Pricing and Availability




Description

Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. listed to UL standard 98 enclosed and dead front switches. suitable for use as service equipment when installed in accordance with the national electrical code certified to CSA standard 22.2 no 4-04 enclosed and dead front switches. meets or exceeds NEMA KS1 standard for enclosed switches, type HD. fusible and non-fusible switches available (consult BuyLog for interrupt ratings). quick-make, quick-break mechanism. 60/75 deg C conductor rating. full cover interlocks.
GE Spec-Setter™ Safety Switch, Fusible Heavy Duty, Series: TH Series, 600 V AC, 30 A, 7-1/2 hp Standard Fuse/20 hp Time Delay, 3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, 60/75 deg C, 12.6 in H x 8.3 in W x 4 in D Dimensions

Specifications

 Actuator Type Handle
 Amperage Rating 30 A
 Application Commercial, Industrial, Electrical Distribution and Control Applications
 Brand Name GE
 Dimensions 12.6 in H x 8.3 in W x 4 in D
 Enclosure NEMA 1
 Frequency Rating 50/60 Hz
 Horsepower 7-1/2 hp Standard Fuse/20 hp Time Delay
 Manufacturer Part Number TH3361
 Mounting Type Surface
 Number of Poles 3
 Number of Wires 3
 PART NUMBER KEYWORDS TH3361 ; 7649112 ; 783164009095 ; 78316400909 ; 00783164009095
 Phase 3
 Series TH Series
 Short Circuit Current Rating 200 kA
 Standards/Approvals UL 98|CSA C22.2 No. 4-04|Federal Specification W-S-865C|NEMA KS1 - 2013|Seismic Certified
 Temperature Rating 60/75 deg C
 Type Fusible Heavy Duty
 Voltage Rating 600 V AC

Features

▪ Donut handle ideal for hook stick operation and accepts 3 padlocks in the off position
▪ Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication
▪ Self-leveling, 3-point mounting system
▪ Coin-proof, defeatable interlock
▪ Visible confirmation of plated blade contact positions
▪ Spring reinforced fuse clips assure reliable contact for cool operation
▪ With class R fuses or J fuses, 30 to 600 A switches have UL listed short circuit rating of 200000 rms symmetrical A
▪ Switches rated 800 to 1200 A use class L fuses and have a UL listed short circuit rating of 10000 rms symmetrical A
▪ UL listed as service entrance equipment when installed in accordance with the national electric code
