ABB

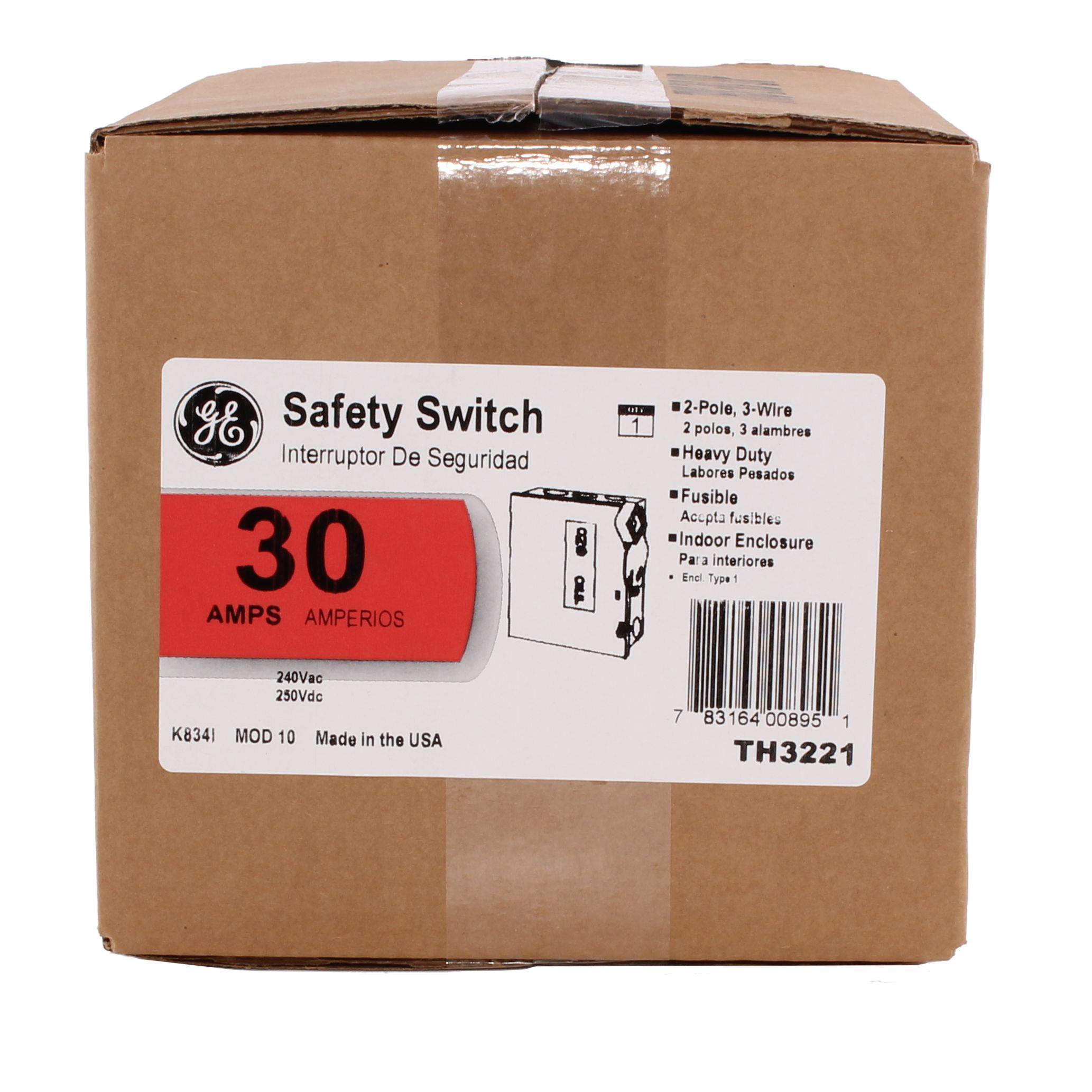

  • TH3221 GE 30A-240V-2P SW FUSIBLE
  • TH3221 GE 30A-240V-2P SW FUSIBLE
  • TH3221 GE 30A-240V-2P SW FUSIBLE
  • TH3221 GE 30A-240V-2P SW FUSIBLE

Description: GE Spec-Setter™ Safety Switch, Fused Heavy Duty, 240 V AC, 30 A, 1-1/2 hp, 3 hp, 1 ph, 50/60 Hz Frequency, 2 Pole, 3 Wires, 200 kA Short Circuit, Handle Actuator, Class H/J/K/R Insulation, NEMA 1 Enclosure, 3-Point/Self-Leveling Mounting, Line/Load Lug Terminal, 60 to 75 deg C, 7.1 in W x 6.1 in D x 10.3 in H Dimensions, Stainless Steel, Hot Dipped Galvanized/Powder Coated

Manufacturer PN: TH3221

UPC:  78316400895

Kendall Electric Inc PN: 2019512

Invoice Description:

TH3221 GE 30A-240V-2P SW FUSIBLE


SPEC SHEET

▸ See All in Heavy Duty Safety Switches


How Can We Make This Page Better?

GE Spec-Setter™ TH3221 Fused Heavy Duty Safety Switch, 240 V AC, 30 A, 1-1/2 hp, 3 hp, 2 Poles

Log In for Pricing and Availability




Description

Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. listed to UL standard 98 enclosed and dead front switches. suitable for use as service equipment when installed in accordance with the national electrical code certified to CSA standard 22.2 no 4-04 enclosed and dead front switches. meets or exceeds NEMA KS1 standard for enclosed switches, type HD. fusible and non-fusible switches available (consult BuyLog for interrupt ratings). quick-make, quick-break mechanism. 60/75 deg C conductor rating. full cover interlocks.
GE Spec-Setter™ Safety Switch, Fused Heavy Duty, 240 V AC, 30 A, 1-1/2 hp, 3 hp, 1 ph, 50/60 Hz Frequency, 2 Pole, 3 Wires, 200 kA Short Circuit, Handle Actuator, Class H/J/K/R Insulation, NEMA 1 Enclosure, 3-Point/Self-Leveling Mounting, Line/Load Lug Terminal, 60 to 75 deg C, 7.1 in W x 6.1 in D x 10.3 in H Dimensions, Stainless Steel, Hot Dipped Galvanized/Powder Coated

Specifications

 Actuator Type Handle
 Amperage Rating 30 A
 Application Commercial, Industrial, Electrical Distribution and Control Applications
 Brand Name GE
 Dimensions 7.1 in W x 6.1 in D x 10.3 in H
 Enclosure NEMA 1
 Finish Hot Dipped Galvanized/Powder Coated
 Frequency Rating 50/60 Hz
 Horsepower 1-1/2 hp, 3 hp
 Manufacturer Part Number TH3221
 Material Stainless Steel
 Mounting Type 3-Point/Self-Leveling
 Number of Poles 2
 Number of Wires 3
 Phase 1
 Short Circuit Current Rating 200 kA
 Standards/Approvals CSA C22.2 No. 4-04|cUL Listed|Federal Specification WS865C|Seismic Certified|UL Listed
 Temperature Rating 60 to 75 deg C
 Terminal Type Line/Load Lug
 Type Fused Heavy Duty
 Voltage Rating 240 V AC

Features

▪ 3 hp at 240 VAC time delay, 7 hp at 240 VAC time delay, 5 hp at 600 VDC horsepower rating
▪ Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearance
▪ Coin-proof, defeatable dual interlocks meet all safety inspection requirements
▪ Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
▪ 3-point mounting pattern speeds installation and simplifies ganging in close quarters
▪ Clear line shield allows visual verification of blade position while guarding against accidental contact with live parts
▪ Plated blades provide visible confirmation of contact position
▪ Direct drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life
▪ Spring reinforced fuse clips assure reliable contact for cool operation
▪ Suitable for class H, K, J or R fuses
