ABB

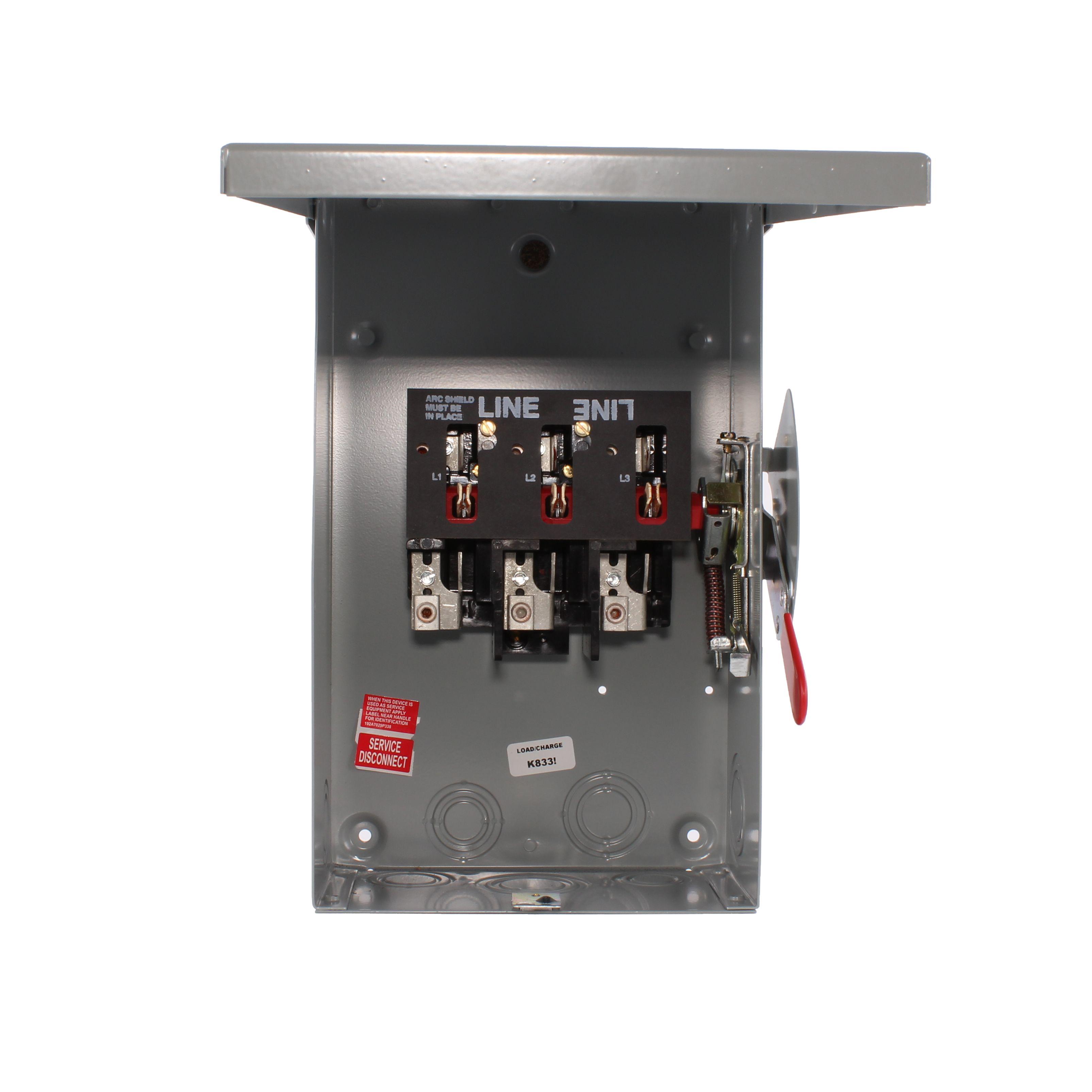

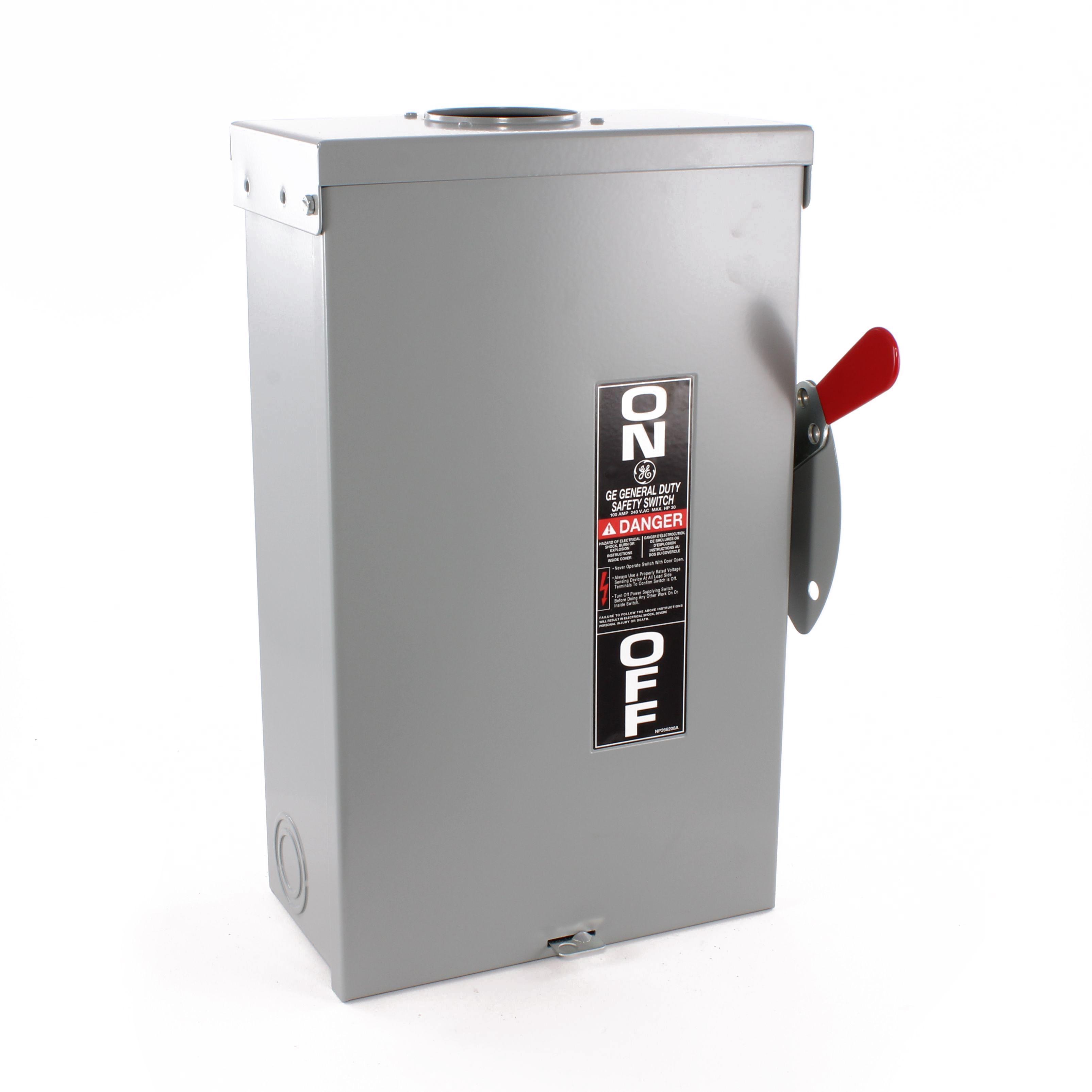

  • TGN3323R GE 100-240V 3P NO-FUSE N3R SAFETY SWITCH
  • TGN3323R GE 100-240V 3P NO-FUSE N3R SAFETY SWITCH
  • TGN3323R GE 100-240V 3P NO-FUSE N3R SAFETY SWITCH
  • TGN3323R GE 100-240V 3P NO-FUSE N3R SAFETY SWITCH
  • TGN3323R GE 100-240V 3P NO-FUSE N3R SAFETY SWITCH
  • TGN3323R GE 100-240V 3P NO-FUSE N3R SAFETY SWITCH

Description: GE Spec-Setter™ Safety Switch, General Duty Non-Fusible, Series: TGN, 240 V AC, 100 A, 15/hp Standard Fuse/30 hp Time Delay, 1/3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, 60/75 deg C, 15.55 in H x 9.3 in W x 5 in D Dimensions, Steel

Manufacturer PN: TGN3323R

UPC:  78316400881

Kendall Electric Inc PN: 2559011

Invoice Description:

TGN3323R GE 100-240V 3P NO-FUSE N3R SAFETY SWITCH


SPEC SHEET

▸ See All in General Duty Safety Switches


How Can We Make This Page Better?

GE Spec-Setter™ TGN3323R General Duty Non-Fusible Safety Switch, 240 V AC, 100 A, 15/hp Standard Fuse/30 hp Time Delay, 3 Poles

Log In for Pricing and Availability




Description

Designed for residential and light commercial applications where duty is not severe. listed to UL standard 98 enclosed and dead front switches. certified to CSA standard 22.2 no. 4-04 enclosed and dead front switches. meets or exceeds NEMA KS1 standard for enclosed switches, type GD. fusible and non-fusible switches available (consult BuyLog for interrupt ratings). quick-make, quick-break mechanism (30 to 200 A). 60/75 deg C conductor rating.
GE Spec-Setter™ Safety Switch, General Duty Non-Fusible, Series: TGN, 240 V AC, 100 A, 15/hp Standard Fuse/30 hp Time Delay, 1/3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, 60/75 deg C, 15.55 in H x 9.3 in W x 5 in D Dimensions, Steel

Specifications

 Actuator Type Handle
 Amperage Rating 100 A
 Application Residential, Light Commercial, Electrical Distribution and Control Applications
 Brand Name GE
 Dimensions 15.55 in H x 9.3 in W x 5 in D
 Enclosure NEMA 3R
 Frequency Rating 50/60 Hz
 Horsepower 15/hp Standard Fuse/30 hp Time Delay
 Manufacturer Part Number TGN3323R
 Material Steel
 Mounting Type Surface
 Number of Poles 3
 Number of Wires 3
 Phase 1/3
 Series TGN
 Short Circuit Current Rating 100 kA
 Standards/Approvals UL 98|CSA C22.2 No. 4-04|cUL Listed|Federal Specification WS-865C|NEMA KS1-2013|Seismic Certified
 Temperature Rating 60/75 deg C
 Type General Duty Non-Fusible
 Voltage Rating 240 V AC

Features

▪ Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication
▪ Self-leveling, 3-point mounting system
▪ Integral cover interlock
▪ Visible confirmation of plated blade contact positions
▪ Spring reinforced fuse clips assure reliable contact for cool operation
▪ Suitable for class H, K, J or R fuses, where applicable
▪ UL listed short circuit rating is 10000 rms symmetrical amps standard
▪ With class R fuses and fuse kits installed, 30 to 200 A switches have UL listed short circuit rating of 100000 rms symmetrical A
▪ UL listed as service entrance equipment when installed in accordance with the national electric code

Resources

 Catalog Page
 Product Data Sheet
