ABB

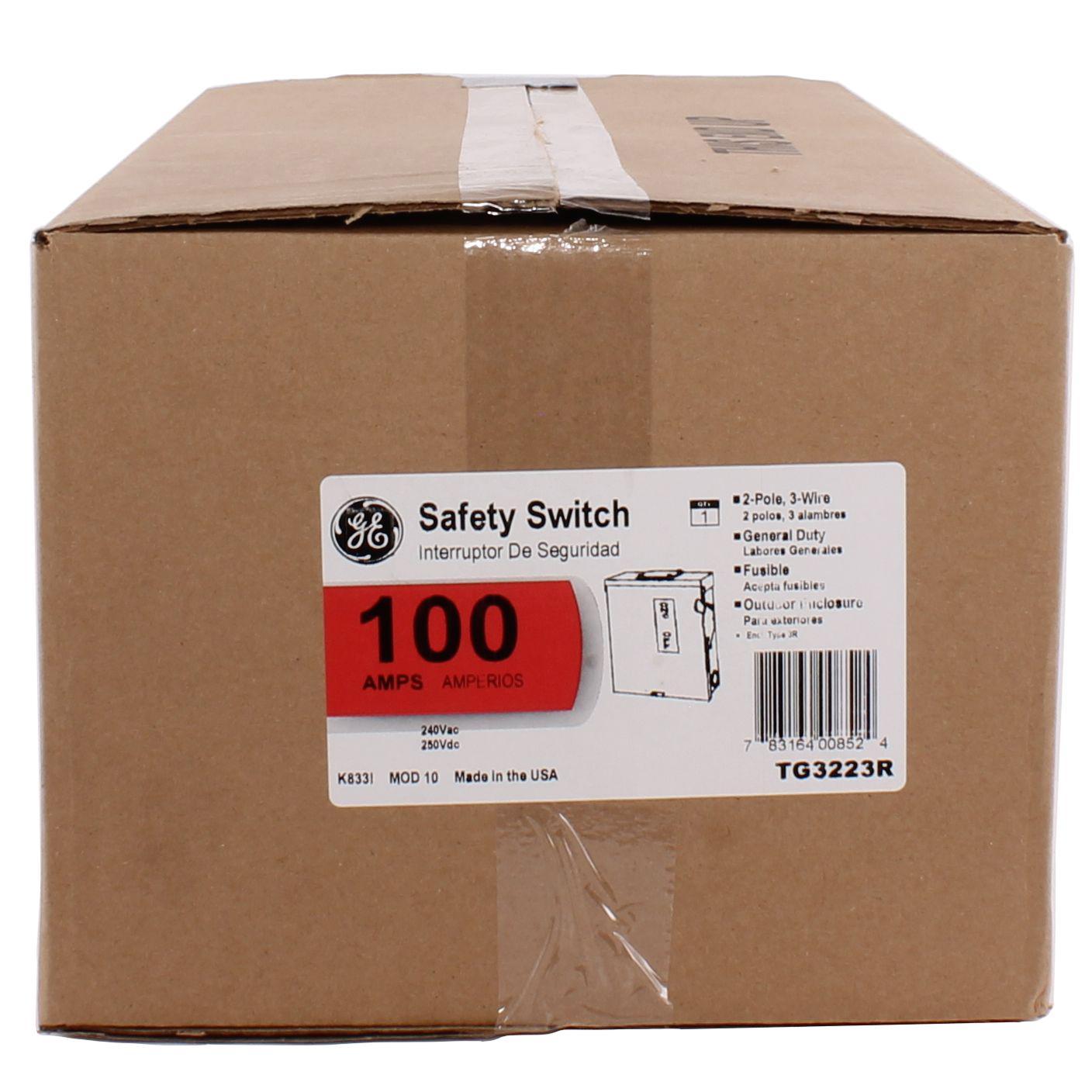

  • TG3223R GE 100A-240V-2-FUSE N3R SAFETY SWITCH, W/NEUTRAL
  • TG3223R GE 100A-240V-2-FUSE N3R SAFETY SWITCH, W/NEUTRAL
  • TG3223R GE 100A-240V-2-FUSE N3R SAFETY SWITCH, W/NEUTRAL
  • TG3223R GE 100A-240V-2-FUSE N3R SAFETY SWITCH, W/NEUTRAL

Description: GE Spec-Setter™ Safety Switch, Fusible General Duty, Series: TG Series, 240 V AC, 100 A, 7-1/2 hp Standard Fuse/15 hp Time Delay, 1 ph, 50/60 Hz Frequency, 2 Pole, 3 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, 60/75 deg C, 21.05 in H x 9.3 in W x 5 in D Dimensions, Steel

Manufacturer PN: TG3223R

UPC:  78316400852

Kendall Electric Inc PN: 2493766

Invoice Description:

TG3223R GE 100A-240V-2-FUSE N3R SAFETY SWITCH, W/NEUTRAL


SPEC SHEET

▸ See All in General Duty Safety Switches


How Can We Make This Page Better?

GE Spec-Setter™ TG3223R TG Series Fusible General Duty Safety Switch, 240 V AC, 100 A, 7-1/2 hp Standard Fuse/15 hp Time Delay, 2 Poles

Log In for Pricing and Availability




Description

Designed for residential and light commercial applications where duty is not severe. listed to UL standard 98 enclosed and dead front switches. suitable for use as service equipment when installed in accordance with the national electrical code certified to CSA standard 22.2 no 4-04 enclosed and dead front switches. meets or exceeds NEMA KS1 standard for enclosed switches - type GD. fusible and non-fusible switches available (consult BuyLog for interrupt ratings). quick-make, quick-break mechanism (30 to 200 A). 60/75 deg C conductor rating.
GE Spec-Setter™ Safety Switch, Fusible General Duty, Series: TG Series, 240 V AC, 100 A, 7-1/2 hp Standard Fuse/15 hp Time Delay, 1 ph, 50/60 Hz Frequency, 2 Pole, 3 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, 60/75 deg C, 21.05 in H x 9.3 in W x 5 in D Dimensions, Steel

Specifications

 Actuator Type Handle
 Amperage Rating 100 A
 Application Residential, Light Commercial, Electrical Distribution and Control Applications
 Brand Name GE
 Dimensions 21.05 in H x 9.3 in W x 5 in D
 Enclosure NEMA 3R
 Frequency Rating 50/60 Hz
 Horsepower 7-1/2 hp Standard Fuse/15 hp Time Delay
 Manufacturer Part Number TG3223R
 Material Steel
 Mounting Type Surface
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS TG3223R ; 7648681 ; 783164008524 ; 78316400852 ; 00783164008524
 Phase 1
 Series TG Series
 Short Circuit Current Rating 100 kA
 Standards/Approvals UL 98|CSA C22.2 No. 4-04|cUL Listed|Federal Specification WS-865C|NEMA KS1-2013|Seismic Certified
 Temperature Rating 60/75 deg C
 Type Fusible General Duty
 Voltage Rating 240 V AC

Features

▪ Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication
▪ Self-leveling, 3-point mounting system
▪ Integral cover interlock
▪ Visible confirmation of plated blade contact positions
▪ Spring reinforced fuse clips assure reliable contact for cool operation
▪ Suitable for class H, K, J or R fuses, where applicable
▪ UL listed short circuit rating is 10000 rms symmetrical amps standard
▪ With class R fuses and fuse kits installed, 30 to 200 A switches have UL listed short circuit rating of 100000 rms symmetrical A
▪ UL listed as service entrance equipment when installed in accordance with the national electric code

Resources

 Catalog Page
 Product Data Sheet
