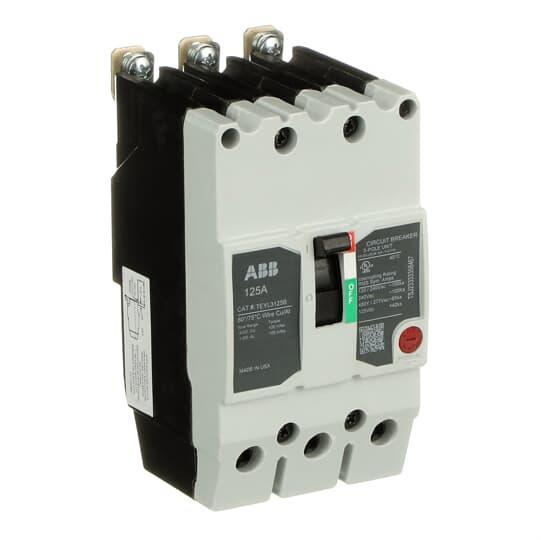

  • TEYL3125B GE TEYX CIRCUIT BREAKER 3P 125A

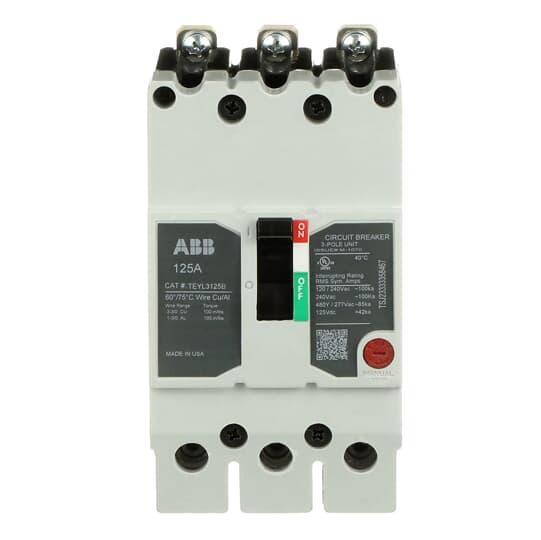

  • TEYL3125B GE TEYX CIRCUIT BREAKER 3P 125A

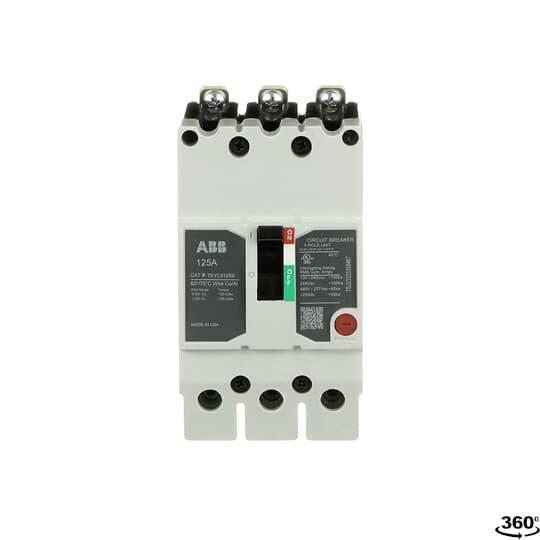

  • TEYL3125B GE TEYX CIRCUIT BREAKER 3P 125A
  • TEYL3125B GE TEYX CIRCUIT BREAKER 3P 125A
  • TEYL3125B GE TEYX CIRCUIT BREAKER 3P 125A

Description: GE Lighting Panel Circuit Breaker, Compact, Series: TEYL, 120/240/277/480 VAC, 250 VDC, 125 A, 50/60 Hz Frequency, 35/42/65/100 kA Interrupt, TEYL Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Handle Actuator, Load Lug Connection, 4 to 2/0 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in W x 3-1/16 in D x 5-1/4 in H Dimensions, Plastic

Manufacturer PN: TEYL3125B

UPC:  78316446265

Kendall Electric Inc PN: 3749758

Invoice Description:

TEYL3125B GE TEYX CIRCUIT BREAKER 3P 125A


SPEC SHEET

▸ See All in Lighting Panel Circuit Breakers


How Can We Make This Page Better?

GE TEYL3125B Compact Lighting Panel Circuit Breaker, 120/240/277/480 VAC, 250 VDC, 125 A, 35/42/65/100 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. all TEY circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEYD breakers are available in 1, 2 and 3-pole versions, 2 and 3-pole versions can be ordered with auxiliary contact, shunt trip, under voltage release or bell alarm accessories.
GE Lighting Panel Circuit Breaker, Compact, Series: TEYL, 120/240/277/480 VAC, 250 VDC, 125 A, 50/60 Hz Frequency, 35/42/65/100 kA Interrupt, TEYL Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Handle Actuator, Load Lug Connection, 4 to 2/0 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in W x 3-1/16 in D x 5-1/4 in H Dimensions, Plastic

Specifications

 Actuator Type Handle
 Amperage Rating 125 A
 Application For health care facilities, elevators, emergency systems and legally required standby systems such as generators and many other critical load scenarios, industries, electrical distribution and control applications
 Brand Name GE
 Connection Type Load Lug
 Dimensions 3 in W x 3-1/16 in D x 5-1/4 in H
 Frame TEYL
 Frequency Rating 50/60 Hz
 Manufacturer Part Number TEYL3125B
 Material Plastic
 Mounting Type Bolted-On
 Number of Poles 3
 PART NUMBER KEYWORDS TEYL3125B ; 11763424 ; 783164462654 ; 78316446265 ; 00783164462654
 Phase 3
 Series TEYL
 Standards/Approvals E11592
 Temperature Rating 40 deg C
 Type Compact
 Voltage Rating 120/240/277/480 V AC/250 V DC

Features

▪ Ambient compensated
▪ Multiple short circuit tiers
▪ Cost effective protection
▪ Mounting base for unit mount installations
▪ 100 kA at 120/240 VAC, 100 kA at 240 VAC, 65 kA at 480Y/277 VAC, 42 kA at 125 VDC, 35 kA at 250 VDC interrupt rating
