ABB

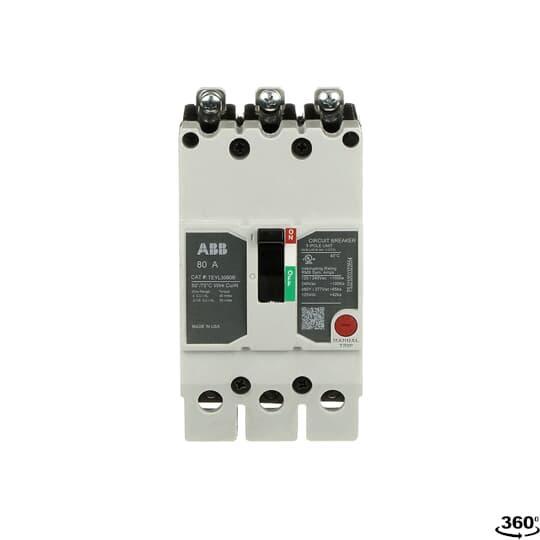

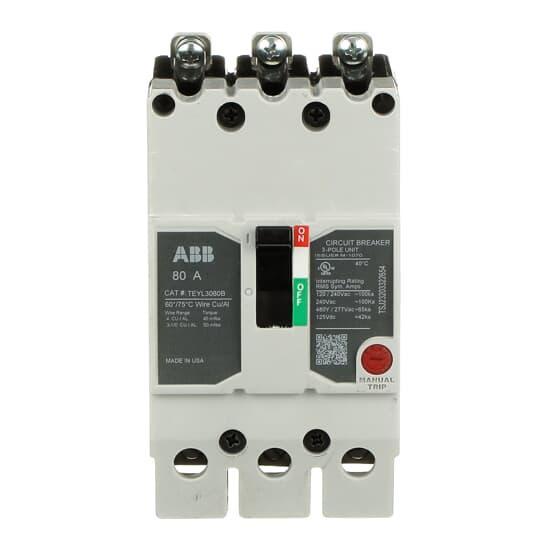

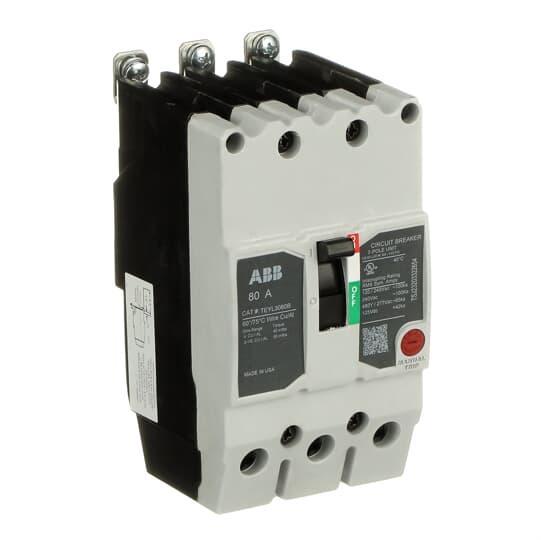

  • TEYL3080B GE TEYX CIRCUIT BREAKER 3P 80A
  • TEYL3080B GE TEYX CIRCUIT BREAKER 3P 80A
  • TEYL3080B GE TEYX CIRCUIT BREAKER 3P 80A
  • TEYL3080B GE TEYX CIRCUIT BREAKER 3P 80A
  • TEYL3080B GE TEYX CIRCUIT BREAKER 3P 80A

Description: GE Lighting Panel Circuit Breaker, Compact, Series: TEYL, 120/240/277/480 VAC, 250 VDC, 80 A, 50/60 Hz Frequency, 35/42/65/100 kA Interrupt, TEYL Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Handle Actuator, Load Lug Connection, 4 to 2/0 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in W x 3-1/16 in D x 5-1/4 in H Dimensions, Plastic

Manufacturer PN: TEYL3080B

UPC:  78316446261

Kendall Electric Inc PN: 3968356

Invoice Description:

TEYL3080B GE TEYX CIRCUIT BREAKER 3P 80A


SPEC SHEET

How Can We Make This Page Better?

GE TEYL3080B Compact Lighting Panel Circuit Breaker, 120/240/277/480 VAC, 250 VDC, 80 A, 35/42/65/100 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. all TEY circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEYD breakers are available in 1, 2 and 3-pole versions, 2 and 3-pole versions can be ordered with auxiliary contact, shunt trip, under voltage release or bell alarm accessories.
GE Lighting Panel Circuit Breaker, Compact, Series: TEYL, 120/240/277/480 VAC, 250 VDC, 80 A, 50/60 Hz Frequency, 35/42/65/100 kA Interrupt, TEYL Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Handle Actuator, Load Lug Connection, 4 to 2/0 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in W x 3-1/16 in D x 5-1/4 in H Dimensions, Plastic

Specifications

 Actuator Type Handle
 Amperage Rating 80 A
 Application For health care facilities, elevators, emergency systems and legally required standby systems such as generators and many other critical load scenarios
 Brand Name GE
 Connection Type Load Lug
 Dimensions 3 in W x 3-1/16 in D x 5-1/4 in H
 Frame TEYL
 Frequency Rating 50/60 Hz
 Manufacturer Part Number TEYL3080B
 Material Plastic
 Mounting Type Bolted-On
 Number of Poles 3
 PART NUMBER KEYWORDS TEYL3080B ; 11763420 ; 783164462616 ; 78316446261 ; 00783164462616
 Phase 3
 Series TEYL
 Standards/Approvals E11592
 Temperature Rating 40 deg C
 Type Compact
 Voltage Rating 120/240/277/480 V AC/250 V DC

Features

▪ Ambient compensated
▪ Multiple short circuit tiers
▪ Cost effective protection
▪ Mounting base for unit mount installations
▪ 100 kA at 120/240 VAC, 100 kA at 240 VAC, 65 kA at 480Y/277 VAC, 42 kA at 125 VDC, 35 kA at 250 VDC interrupt rating

Resources

 Catalog Page
 Product Data Sheet
