ABB

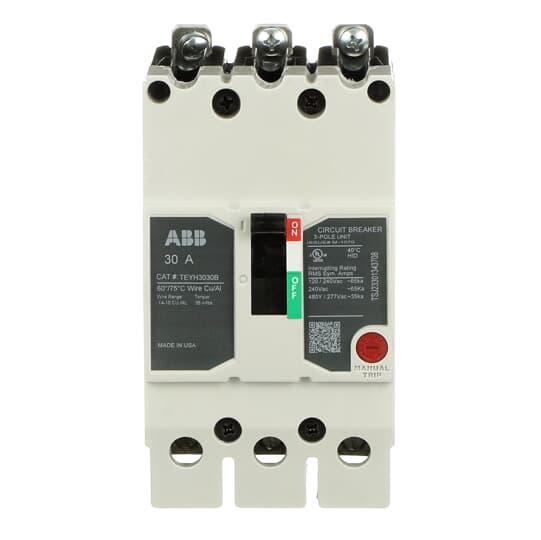

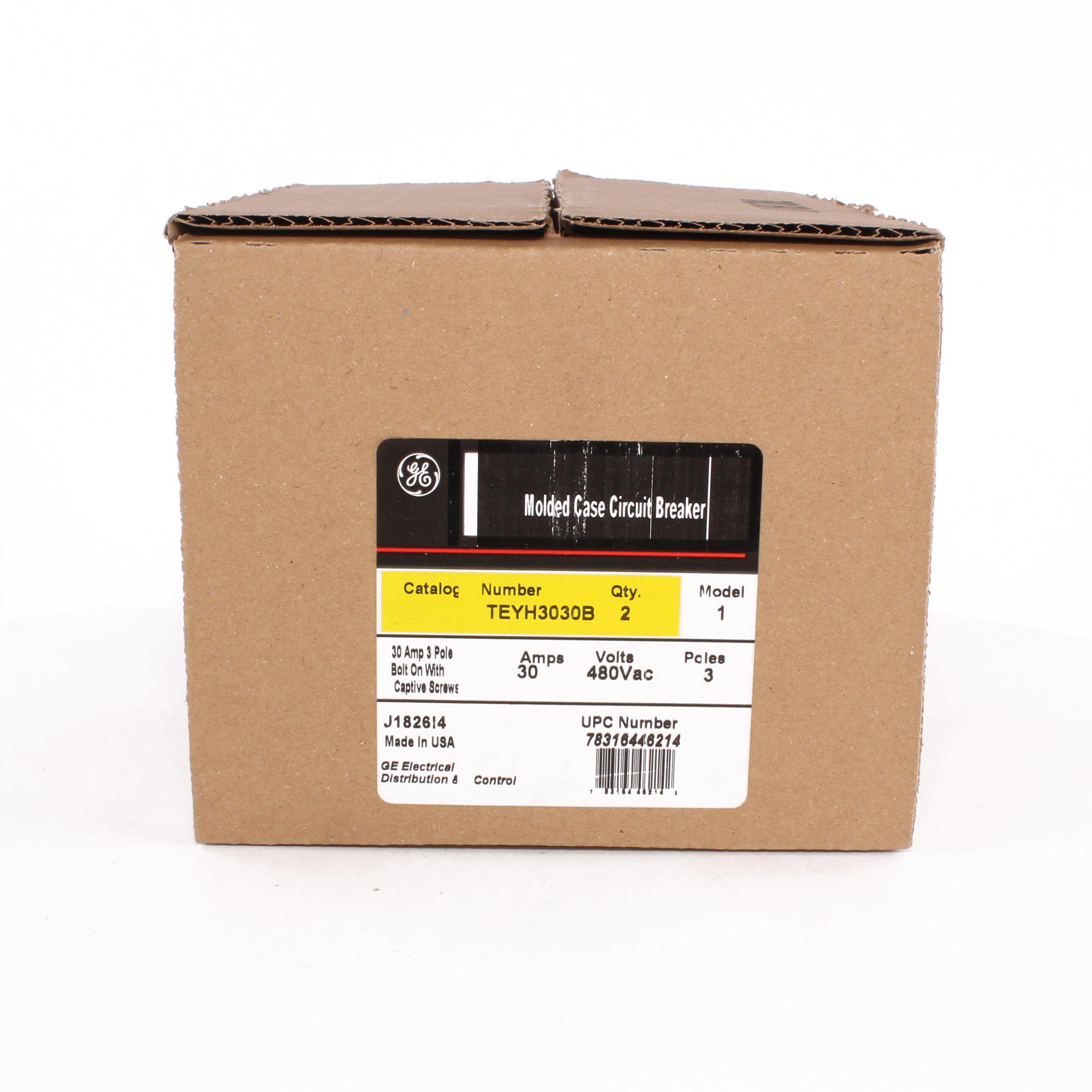

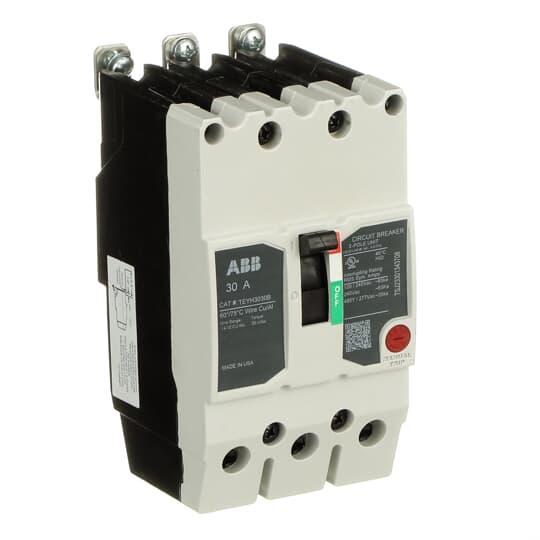

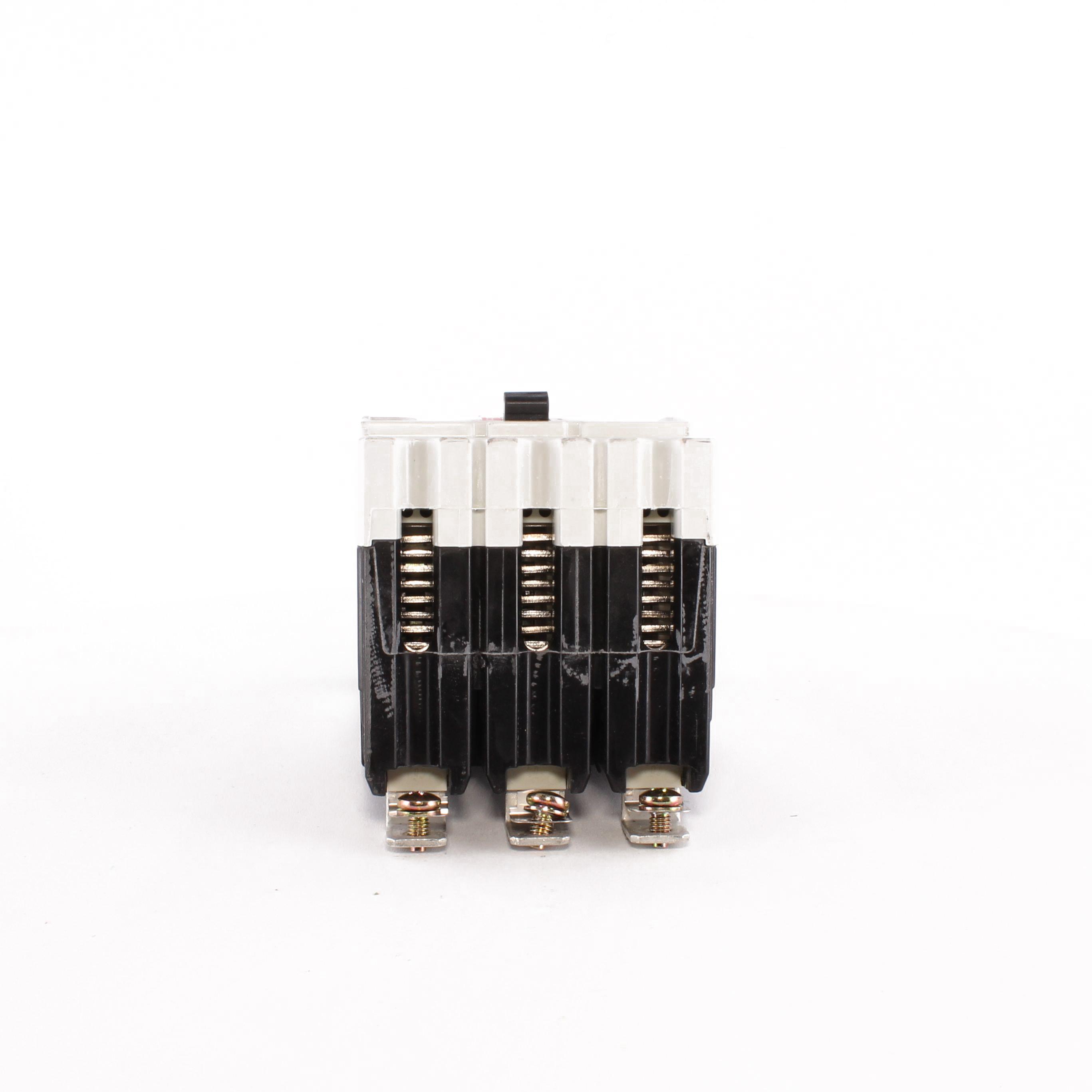

  • TEYH3030B GE TEYX CIRCUIT BREAKER 3P 30A
  • TEYH3030B GE TEYX CIRCUIT BREAKER 3P 30A
  • TEYH3030B GE TEYX CIRCUIT BREAKER 3P 30A
  • TEYH3030B GE TEYX CIRCUIT BREAKER 3P 30A
  • TEYH3030B GE TEYX CIRCUIT BREAKER 3P 30A
  • TEYH3030B GE TEYX CIRCUIT BREAKER 3P 30A

Description: GE Lighting Panel Circuit Breaker, Type TEY Compact, Series: TEYH, 120/240/277/480 VAC, 250 VDC, 30 A, 50/60 Hz Frequency, 35/65 kA Interrupt, TEYH Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 10 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in W x 3-1/16 in D x 5-1/4 in H Dimensions, Plastic

Manufacturer PN: TEYH3030B

UPC:  78316446214

Kendall Electric Inc PN: 3669990

Invoice Description:

TEYH3030B GE TEYX CIRCUIT BREAKER 3P 30A


SPEC SHEET

▸ See All in Lighting Panel Circuit Breakers


How Can We Make This Page Better?

GE TEYH3030B Type TEY Compact Lighting Panel Circuit Breaker, 120/240/277/480 VAC, 250 VDC, 30 A, 35/65 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. all TEY circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2 and 3-pole versions and can be ordered with auxiliary contact and shunt trip accessories.
GE Lighting Panel Circuit Breaker, Type TEY Compact, Series: TEYH, 120/240/277/480 VAC, 250 VDC, 30 A, 50/60 Hz Frequency, 35/65 kA Interrupt, TEYH Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 10 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in W x 3-1/16 in D x 5-1/4 in H Dimensions, Plastic

Specifications

 Actuator Type Pivot/Toggle Handle
 Amperage Rating 30 A
 Application For health care facilities, elevators, emergency systems and legally required standby systems such as generators and many other critical load scenarios, industries, electrical distribution and control applications
 Brand Name GE
 Connection Type Load Lug
 Dimensions 3 in W x 3-1/16 in D x 5-1/4 in H
 Frame TEYH
 Frequency Rating 50/60 Hz
 Manufacturer Part Number TEYH3030B
 Material Plastic
 Mounting Type Bolted-On
 Number of Poles 3
 PART NUMBER KEYWORDS TEYH3030B ; 11763373 ; 783164462142 ; 78316446214 ; 00783164462142
 Phase 3
 Series TEYH
 Standards/Approvals cUL Listed File No. E11592|UL Listed File No. E11592
 Temperature Rating 40 deg C
 Type Type TEY Compact
 Voltage Rating 120/240/277/480 V AC/250 V DC

Features

▪ Ambient compensated
▪ Multiple short circuit tiers
▪ Cost effective protection
▪ Mounting base for unit mount installations
▪ 65 kA at 120/240 VAC, 65 kA at 240 VAC, 35 kA at 480Y/277 VAC interrupt rating
