ABB

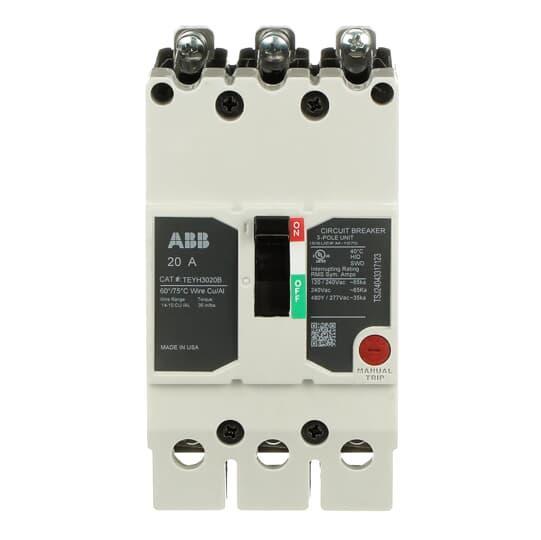

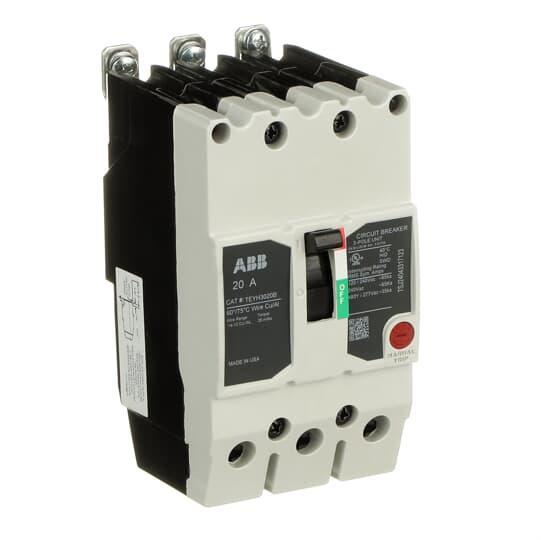

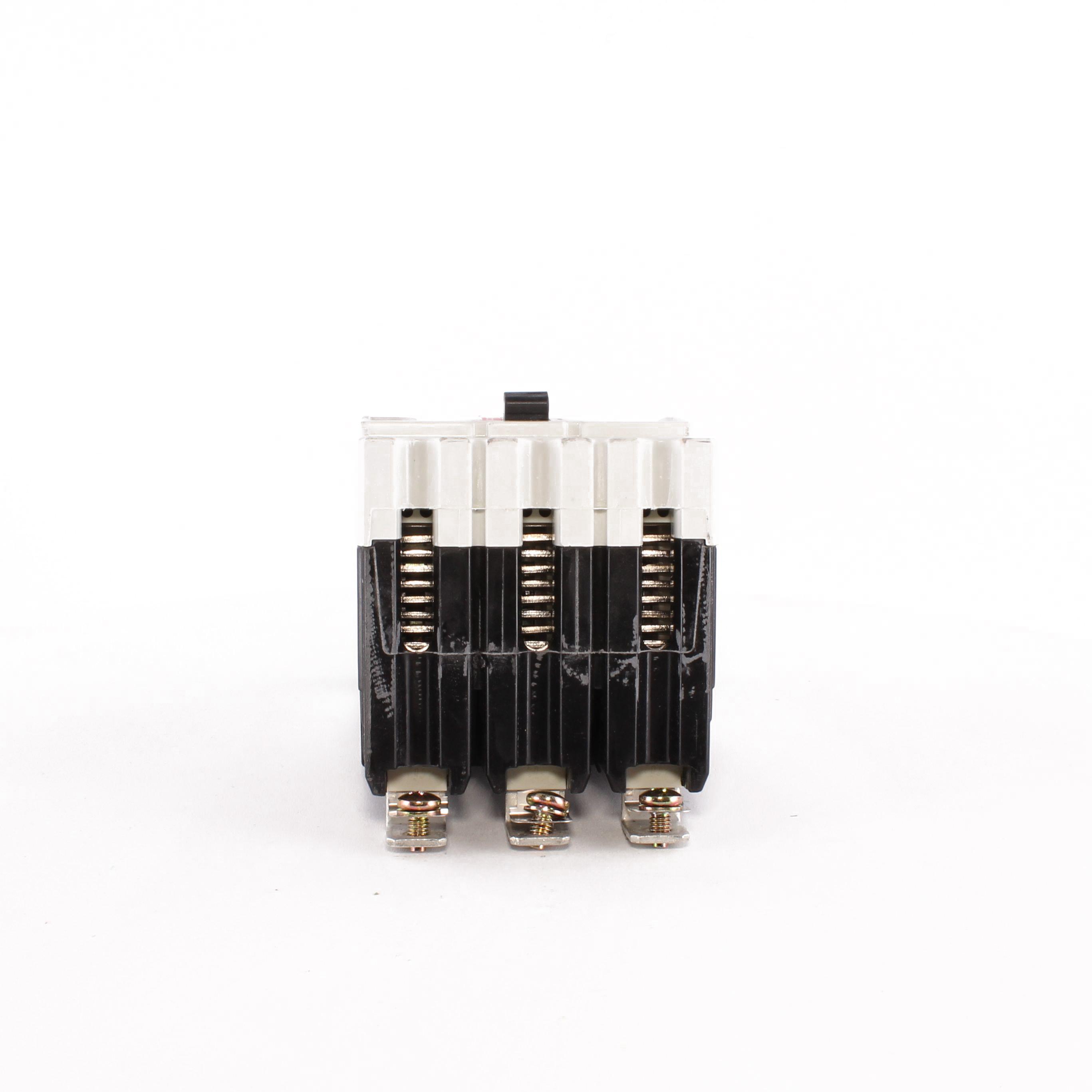

  • TEYH3020B GE 20A 3POLE 35KA 480/277 CKT BKR
  • TEYH3020B GE 20A 3POLE 35KA 480/277 CKT BKR
  • TEYH3020B GE 20A 3POLE 35KA 480/277 CKT BKR
  • TEYH3020B GE 20A 3POLE 35KA 480/277 CKT BKR
  • TEYH3020B GE 20A 3POLE 35KA 480/277 CKT BKR

Description: GE Lighting Panel Circuit Breaker, Compact, 277/480 V AC, 20 A, 35 kA Interrupt, TEYH Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Load Lug Connection, 14 to 10 AWG Wire, Bolted-On Mounting, 40 deg C, 5.2 in H x 3 in W x 3 in D Dimensions

Manufacturer PN: TEYH3020B

UPC:  78316446212

Kendall Electric Inc PN: 4004065

Invoice Description:

TEYH3020B GE 20A 3POLE 35KA 480/277 CKT BKR


SPEC SHEET

▸ See All in Lighting Panel Circuit Breakers


How Can We Make This Page Better?

GE TEYH3020B Compact Lighting Panel Circuit Breaker, 277/480 V AC, 20 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature quick-make/quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEYH breakers are available in 1, 2 and 3-pole versions, 2 and 3-pole versions can be ordered with auxiliary contact, shunt trip, under voltage release or bell alarm accessories.
GE Lighting Panel Circuit Breaker, Compact, 277/480 V AC, 20 A, 35 kA Interrupt, TEYH Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Load Lug Connection, 14 to 10 AWG Wire, Bolted-On Mounting, 40 deg C, 5.2 in H x 3 in W x 3 in D Dimensions

Specifications

 Amperage Rating 20 A
 Application Electrical Distribution and Control Applications
 Brand Name GE
 Connection Type Load Lug
 Dimensions 5.2 in H x 3 in W x 3 in D
 Frame TEYH
 Manufacturer Part Number TEYH3020B
 Mounting Type Bolted-On
 Number of Poles 3
 PART NUMBER KEYWORDS TEYH3020B ; 11763371 ; 783164462128 ; 78316446212 ; 00783164462128
 Phase 3
 Standards/Approvals UL/cUL File No. E11592
 Temperature Rating 40 deg C
 Type Compact
 Voltage Rating 277/480 V AC

Features

▪ For use with GE as lighting panels
▪ Suitable for unit mount/lug-lug connected applications
▪ Fixed instantaneous trip function
▪ 65 kA at 120/240 VAC, 65 kA at 240 VAC, 35 kA at 480Y/277 VAC interrupt rating
