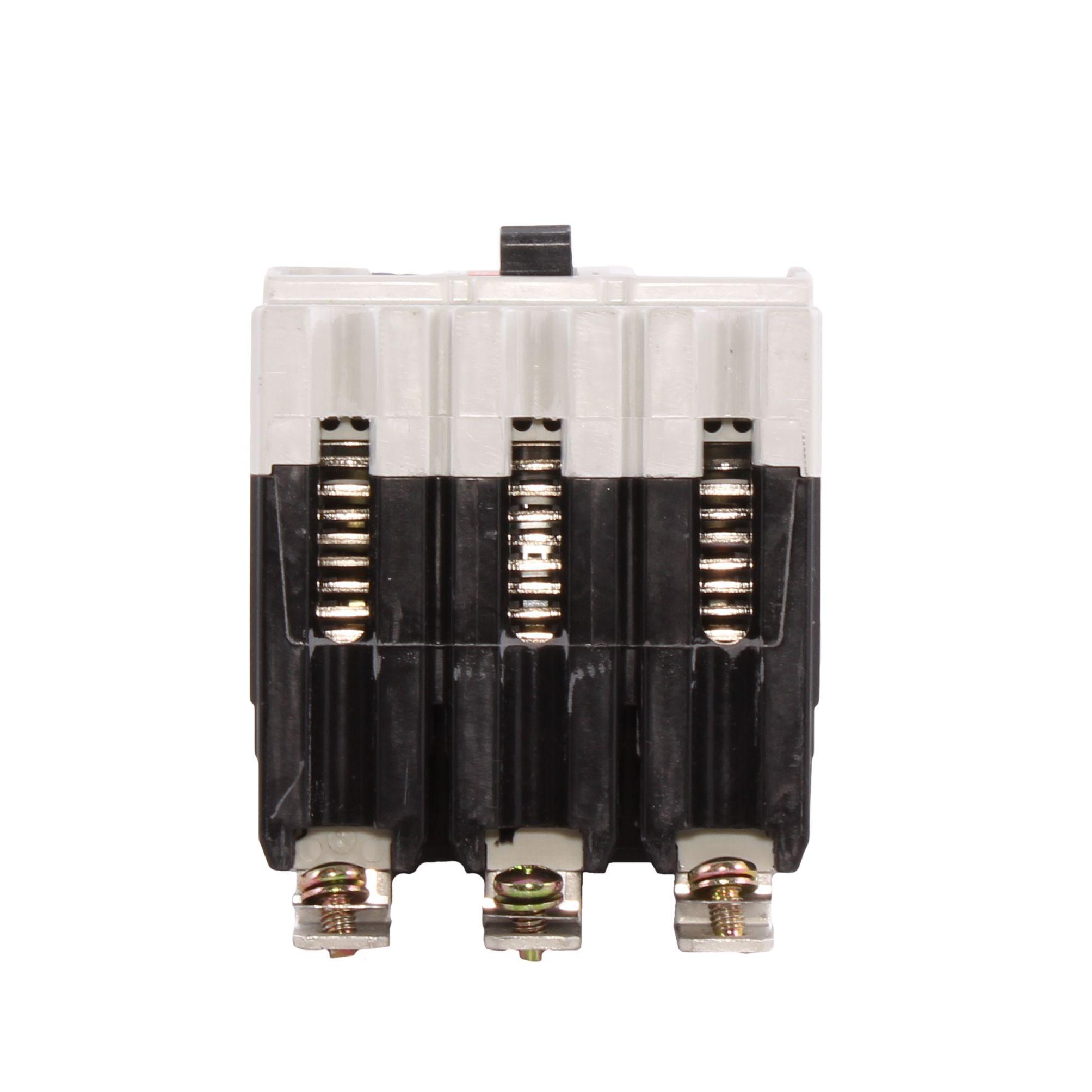

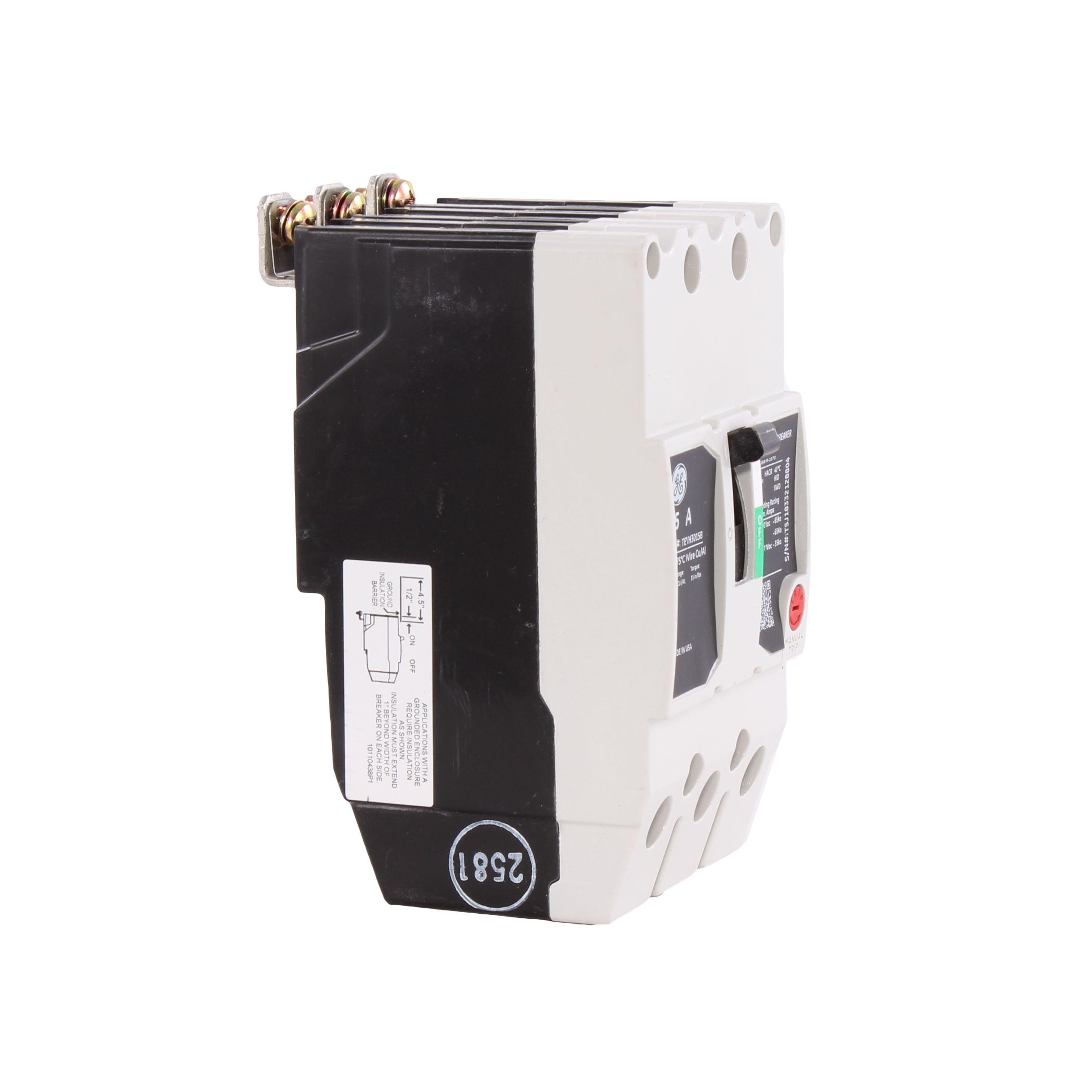

  • TEYH3015B GE TEYX CIRCUIT BREAKER 3P 15A 78316446211
  • TEYH3015B GE TEYX CIRCUIT BREAKER 3P 15A 78316446211
  • TEYH3015B GE TEYX CIRCUIT BREAKER 3P 15A 78316446211
  • TEYH3015B GE TEYX CIRCUIT BREAKER 3P 15A 78316446211
  • TEYH3015B GE TEYX CIRCUIT BREAKER 3P 15A 78316446211
  • TEYH3015B GE TEYX CIRCUIT BREAKER 3P 15A 78316446211

Description: GE Lighting Panel Circuit Breaker, Type TEY Compact, 120/240/277/480 V AC/250 V DC, 15 A, 50/60 Hz Frequency, 65 kA, 35 kA kA Interrupt, TEYH Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 14 to 10 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 3 in W x 3-1/16 in D Dimensions, Plastic

Manufacturer PN: TEYH3015B

UPC:  78316446211

Kendall Electric Inc PN: 3592584

Invoice Description:

TEYH3015B GE TEYX CIRCUIT BREAKER 3P 15A 78316446211


SPEC SHEET

How Can We Make This Page Better?

GE TEYH3015B Type TEY Compact Lighting Panel Circuit Breaker With Cu/Al Load Lug, 120/240/277/480 V AC/250 V DC, 15 A, 65 kA, 35 kA kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature quick make/quick break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEYH breakers are available in 1, 2 and 3-pole versions, 2 and 3-pole versions can be ordered with auxiliary contact, shunt trip, under voltage release or bell alarm accessories.
GE Lighting Panel Circuit Breaker, Type TEY Compact, 120/240/277/480 V AC/250 V DC, 15 A, 50/60 Hz Frequency, 65 kA, 35 kA kA Interrupt, TEYH Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 14 to 10 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 3 in W x 3-1/16 in D Dimensions, Plastic

Specifications

 Actuator Type Pivot/Toggle Handle
 Amperage Rating 15 A
 Application For health care facilities, elevators, emergency systems and legally required standby systems such as generators and many other critical load scenarios, industries, electrical distribution and control applications
 Brand Name GE
 Connection Type Load Lug
 Dimensions 5-1/4 in H x 3 in W x 3-1/16 in D
 Frame TEYH
 Frequency Rating 50/60 Hz
 Manufacturer Part Number TEYH3015B
 Material Plastic
 Mounting Type Bolted-On
 Number of Poles 3
 PART NUMBER KEYWORDS TEYH3015B ; 11763370 ; 783164462111 ; 78316446211 ; 00783164462111
 Phase 3
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E11592|cUL File No. E11592
 Temperature Rating 40 deg C
 Type Type TEY Compact
 Voltage Rating 120/240/277/480 V AC/250 V DC

Features

▪ Ambient compensated
▪ Multiple short circuit tiers
▪ Cost effective protection
▪ Mounting base for unit mount installations
▪ 65 kA at 120/240 VAC, 65 kA at 240 VAC, 35 kA at 480Y/277 VAC interrupt rating
