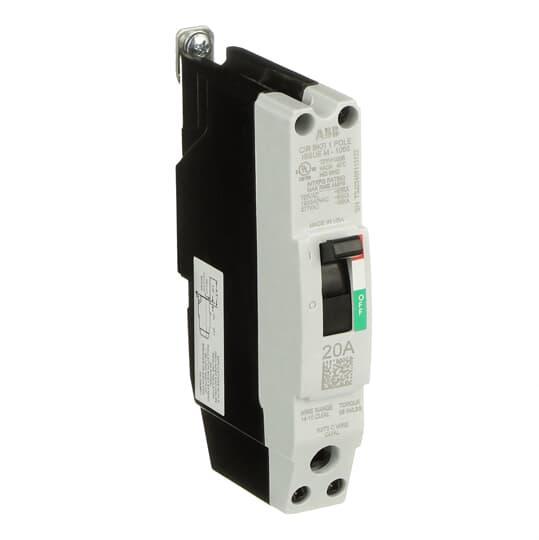

  • TEYH1020B GE 20A 1POLE 35KA 480/277 CKT BKR
  • TEYH1020B GE 20A 1POLE 35KA 480/277 CKT BKR
  • TEYH1020B GE 20A 1POLE 35KA 480/277 CKT BKR
  • TEYH1020B GE 20A 1POLE 35KA 480/277 CKT BKR

Description: GE Lighting Panel Circuit Breaker, Compact, Series: TEYH, 120/240/277/480 VAC, 125 VDC, 20 A, 50/60 Hz Frequency, 35/65 kA Interrupt, TEYH Frame, Thermal Magnetic Trip, 1 Pole, 1 ph, Handle Actuator, Saddle Clamp Connection, 14 to 10 AWG Wire, Bolted-On Mounting, 40 deg C, 1 in W x 3-1/16 in D x 5-1/4 in H Dimensions, Plastic

Manufacturer PN: TEYH1020B

UPC:  78316446187

Kendall Electric Inc PN: 3859968

Invoice Description:

TEYH1020B GE 20A 1POLE 35KA 480/277 CKT BKR


SPEC SHEET

▸ See All in Lighting Panel Circuit Breakers


How Can We Make This Page Better?

GE TEYH1020B Compact Lighting Panel Circuit Breaker, 120/240/277/480 VAC, 125 VDC, 20 A, 35/65 kA Interrupt, 1 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. all TEY circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEYD breakers are available in 1, 2 and 3-pole versions, 2 and 3-pole versions can be ordered with auxiliary contact, shunt trip, under voltage release or bell alarm accessories.
GE Lighting Panel Circuit Breaker, Compact, Series: TEYH, 120/240/277/480 VAC, 125 VDC, 20 A, 50/60 Hz Frequency, 35/65 kA Interrupt, TEYH Frame, Thermal Magnetic Trip, 1 Pole, 1 ph, Handle Actuator, Saddle Clamp Connection, 14 to 10 AWG Wire, Bolted-On Mounting, 40 deg C, 1 in W x 3-1/16 in D x 5-1/4 in H Dimensions, Plastic

Specifications

 Actuator Type Handle
 Amperage Rating 20 A
 Application For health care facilities, elevators, emergency systems and legally required standby systems such as generators and many other critical load scenarios, industries, electrical distribution and control applications
 Brand Name GE
 Connection Type Saddle Clamp
 Dimensions 1 in W x 3-1/16 in D x 5-1/4 in H
 Frame TEYH
 Frequency Rating 50/60 Hz
 Manufacturer Part Number TEYH1020B
 Material Plastic
 Mounting Type Bolted-On
 Number of Poles 1
 PART NUMBER KEYWORDS TEYH1020B ; 11763346 ; 783164461879 ; 78316446187 ; 00783164461879
 Phase 1
 Series TEYH
 Standards/Approvals cUL Listed File No. E11592|UL Listed File No. E11592
 Temperature Rating 40 deg C
 Type Compact
 Voltage Rating 120/240/277/480 V AC/125 V DC

Features

▪ Ambient compensated
▪ Multiple short circuit tiers
▪ Cost effective protection
▪ Mounting base for unit mount installations
▪ 65 kA at 120 VAC, 65 kA at 120/240 VAC, 35 kA at 277 VAC interrupt rating
