ABB

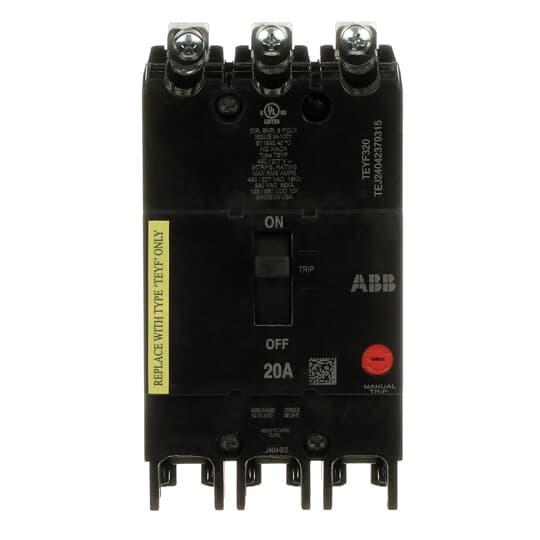

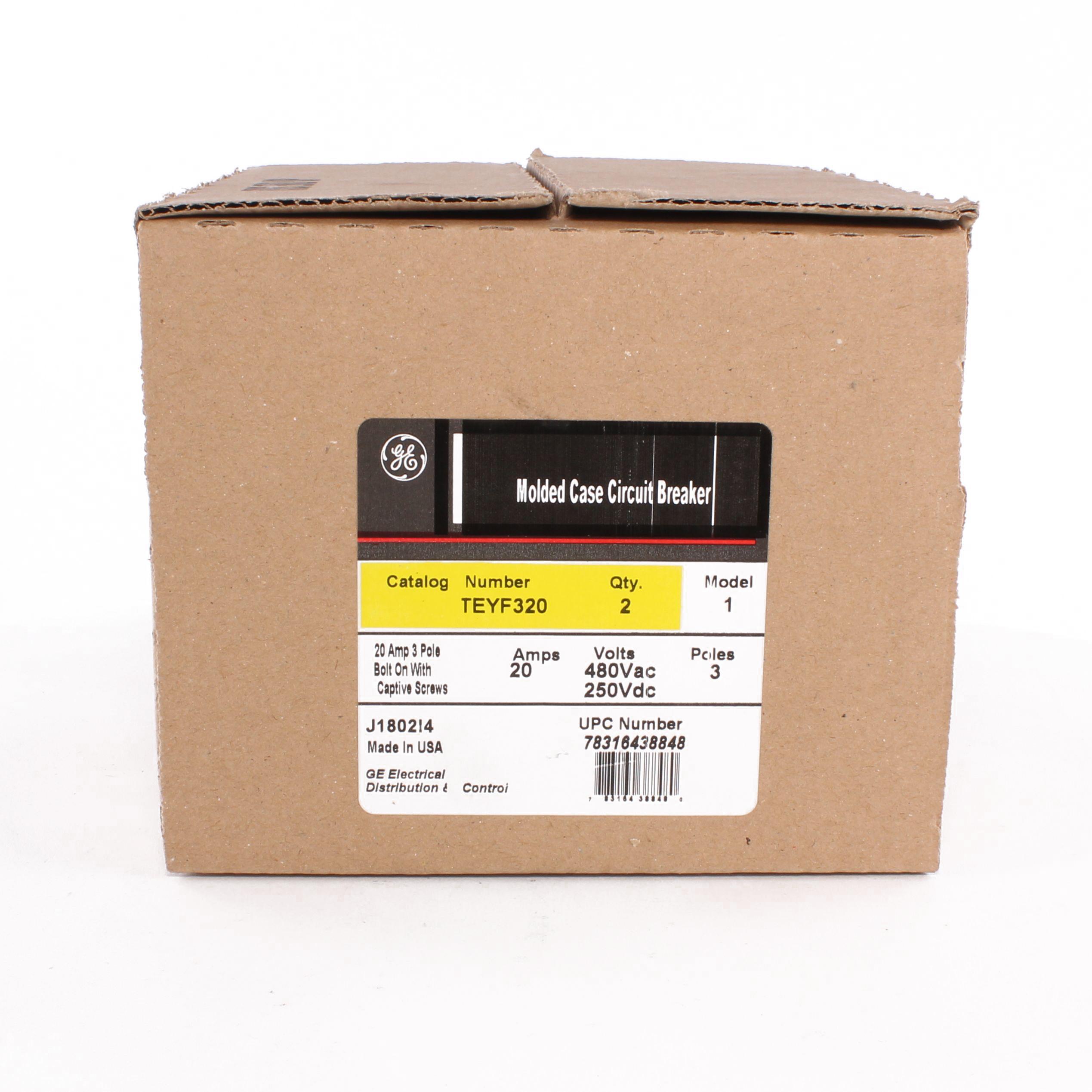

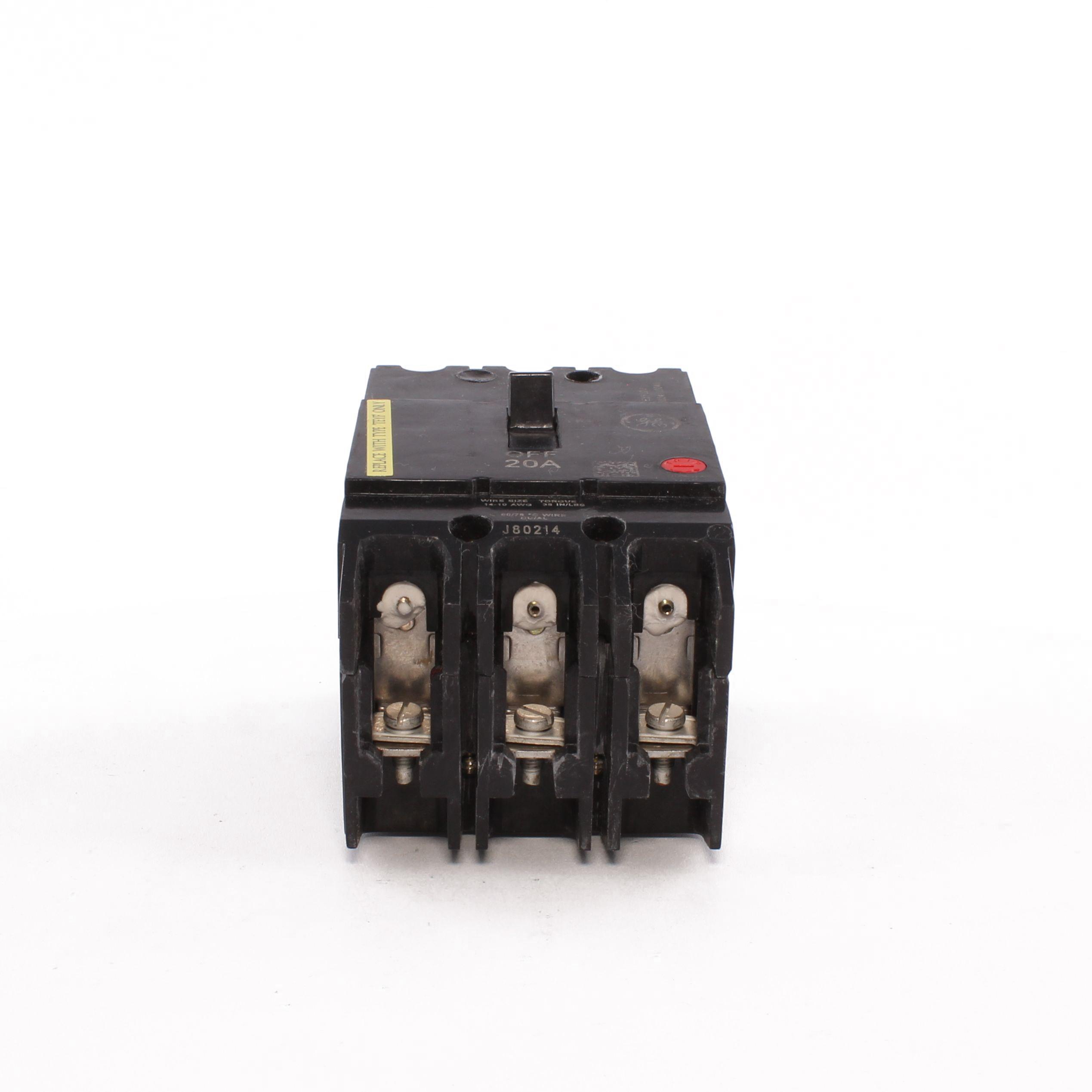

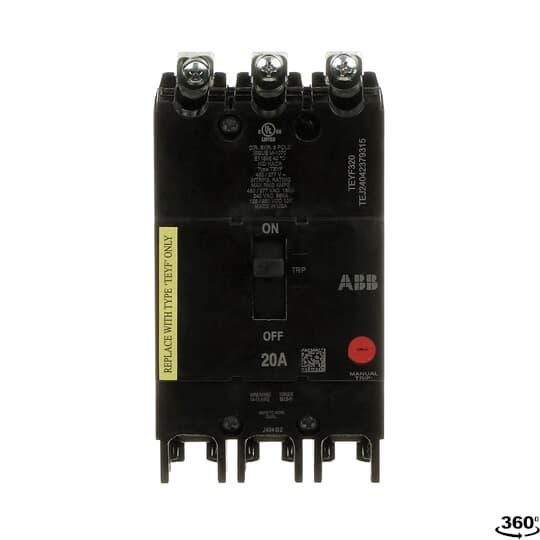

  • TEYF320 GE TEYF 3 POLE 20 AMP 78316438848
  • TEYF320 GE TEYF 3 POLE 20 AMP 78316438848
  • TEYF320 GE TEYF 3 POLE 20 AMP 78316438848
  • TEYF320 GE TEYF 3 POLE 20 AMP 78316438848
  • TEYF320 GE TEYF 3 POLE 20 AMP 78316438848
  • TEYF320 GE TEYF 3 POLE 20 AMP 78316438848

Description: GE Lighting Panel Circuit Breaker, Type TEY Compact, Series: TEYF, 120/240/277/480 V AC, 20 A, 50/60 Hz Frequency, 18/65 kA Interrupt, TEYF Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 14 to 10 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in W x 3-1/16 in D x 5-1/4 in H Dimensions, Plastic

Manufacturer PN: TEYF320

UPC:  78316438848

Kendall Electric Inc PN: 2902469

Invoice Description:

TEYF320 GE TEYF 3 POLE 20 AMP 78316438848


SPEC SHEET

How Can We Make This Page Better?

GE TEYF320 Type TEY Compact Lighting Panel Circuit Breaker, 120/240/277/480 V AC, 20 A, 18/65 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The TEYF is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEYF suitable for varied applications as a lug-lug breaker. all TEYF circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEYF breakers are available in 1, 2 and 3-pole versions and can be ordered with auxiliary contact and shunt trip accessories.
GE Lighting Panel Circuit Breaker, Type TEY Compact, Series: TEYF, 120/240/277/480 V AC, 20 A, 50/60 Hz Frequency, 18/65 kA Interrupt, TEYF Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 14 to 10 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in W x 3-1/16 in D x 5-1/4 in H Dimensions, Plastic

Specifications

 Actuator Type Pivot/Toggle Handle
 Amperage Rating 20 A
 Application Health Care Facilities, Elevators, Emergency Systems and Legally Required Standby Systems Such As Generators and Many Other Critical Load Scenarios, Industries, Electrical Distribution and Control Applications
 Brand Name GE
 Connection Type Load Lug
 Dimensions 3 in W x 3-1/16 in D x 5-1/4 in H
 Frame TEYF
 Frequency Rating 50/60 Hz
 Includes Integral Copper/Aluminum Load Lug
 Manufacturer Part Number TEYF320
 Material Plastic
 Mounting Type Bolted-On
 Number of Poles 3
 PART NUMBER KEYWORDS TEYF320 ; 11702807 ; 783164388480 ; 78316438848 ; 00783164388480
 Phase 3
 Series TEYF
 Standards/Approvals CSA Certified File No. LR57114|cUL Listed File No. E11592|HACR Rated|UL Listed File No. E11592
 Temperature Rating 40 deg C
 Type Type TEY Compact
 Voltage Rating 120/240/277/480 V AC

Features

▪ Ambient compensated
▪ Multiple short circuit tiers
▪ Cost effective protection
▪ Mounting base for unit mount installations
▪ 18 kA at 277 VAC, 65 kA at 120/240 VAC, 65 kA at 240 VAC, 18 kA at 480/277 VAC interrupt rating
