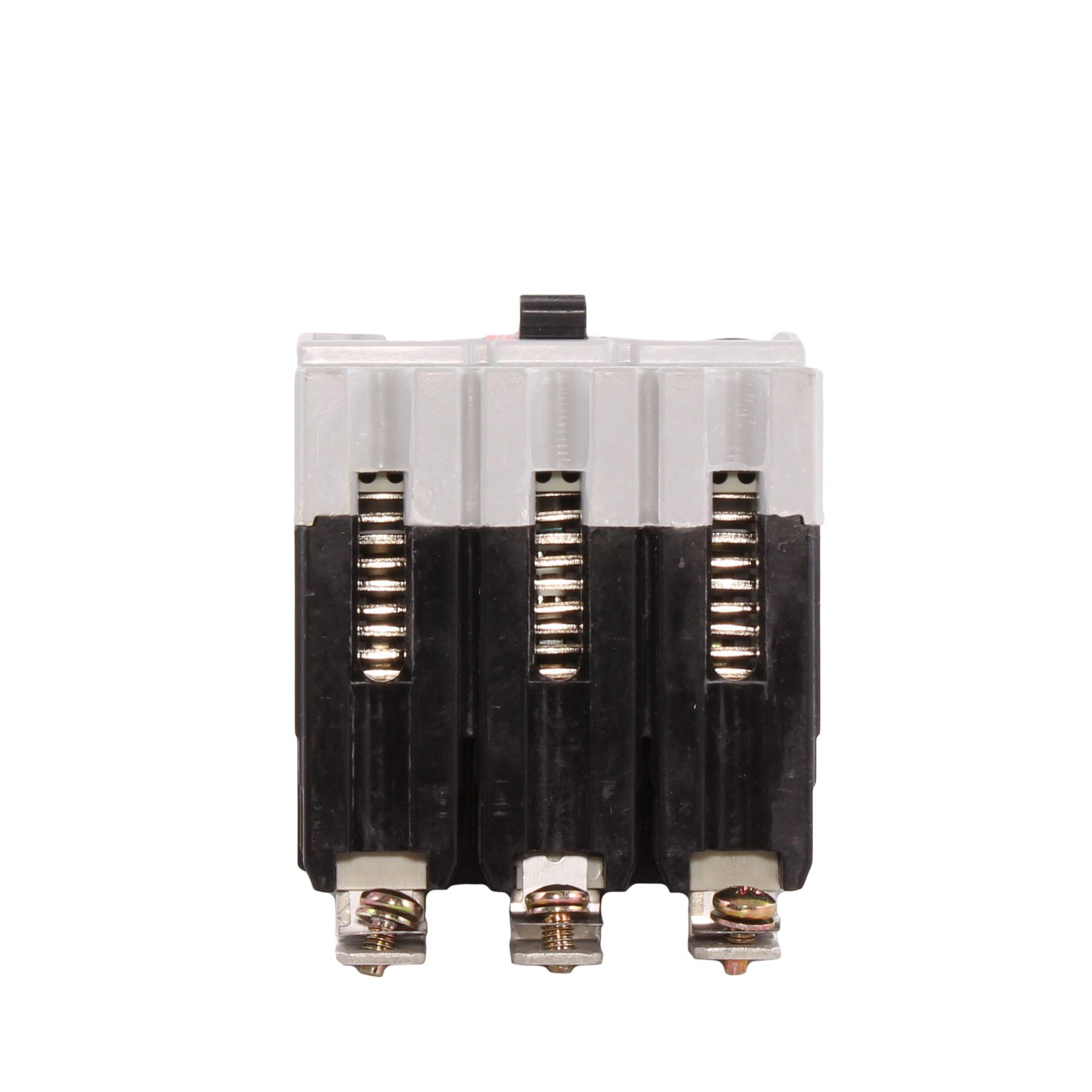

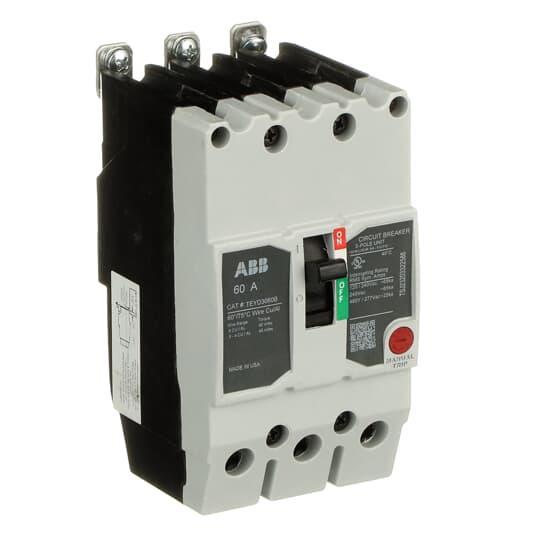

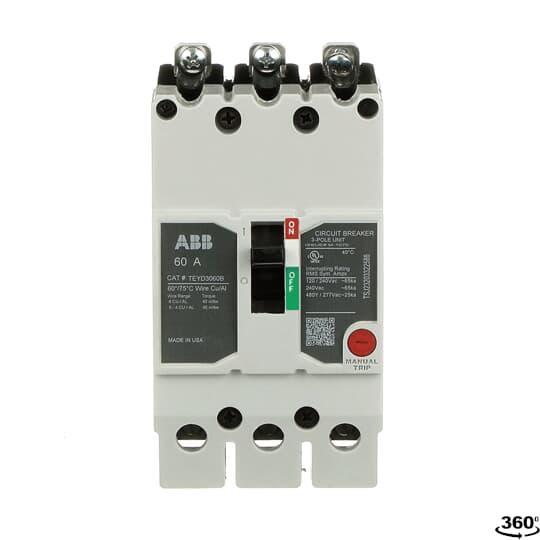

Description: GE Lighting Panel Circuit Breaker, Compact, 120/240/277/480 VAC, 250 VDC, 60 A, 50/60 Hz Frequency, 65/25 kA Interrupt, TEYD Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Handle Actuator, Load Lug Connection, 10 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 3 in W x 3-1/16 in D Dimensions, Plastic

Manufacturer PN: TEYD3060B

UPC:  78316446179

Kendall Electric Inc PN: 3597567

Invoice Description:

TEYD3060B GE TEYX CIRCUIT BREAKER 3P 60A 78316446179


SPEC SHEET

▸ See All in Lighting Panel Circuit Breakers


How Can We Make This Page Better?

GE TEYD3060B Compact Lighting Panel Circuit Breaker, 120/240/277/480 VAC, 250 VDC, 60 A, 65/25 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature quick-make/quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEYH breakers are available in 1, 2 and 3-pole versions, 2 and 3-pole versions can be ordered with auxiliary contact, shunt trip, under voltage release or bell alarm accessories.
GE Lighting Panel Circuit Breaker, Compact, 120/240/277/480 VAC, 250 VDC, 60 A, 50/60 Hz Frequency, 65/25 kA Interrupt, TEYD Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Handle Actuator, Load Lug Connection, 10 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 3 in W x 3-1/16 in D Dimensions, Plastic

Specifications

 Actuator Type Handle
 Amperage Rating 60 A
 Application For health care facilities, elevators, emergency systems, legally required standby systems such as generators, many other critical load scenarios, electrical distribution and control applications
 Brand Name GE
 Connection Type Load Lug
 Dimensions 5-1/4 in H x 3 in W x 3-1/16 in D
 Frame TEYD
 Frequency Rating 50/60 Hz
 Manufacturer Part Number TEYD3060B
 Material Plastic
 Mounting Type Bolted-On
 Number of Poles 3
 PART NUMBER KEYWORDS TEYD3060B ; 11763338 ; 783164461794 ; 78316446179 ; 00783164461794
 Phase 3
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL/cUL File No. E11592
 Temperature Rating 40 deg C
 Type Compact
 Voltage Rating 120/240/277/480 V AC/250 V DC

Features

▪ Ambient compensated
▪ Multiple short circuit tiers
▪ Cost effective protection
▪ Mounting base for unit mount installations
▪ 65 kA at 120/240 VAC, 65 kA at 240 VAC, 25 kA at 480Y/277 VAC interrupt rating
