ABB

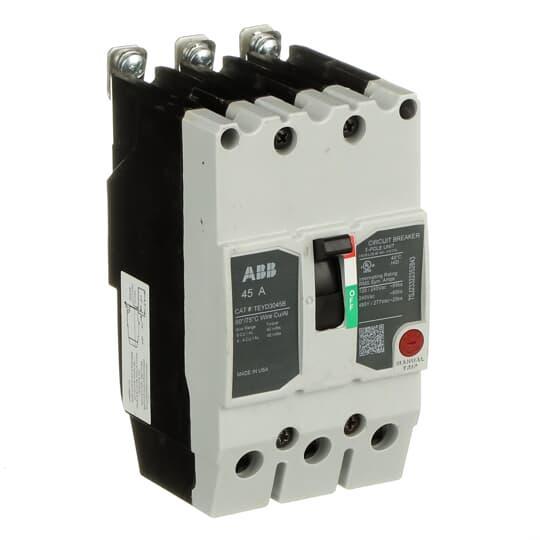

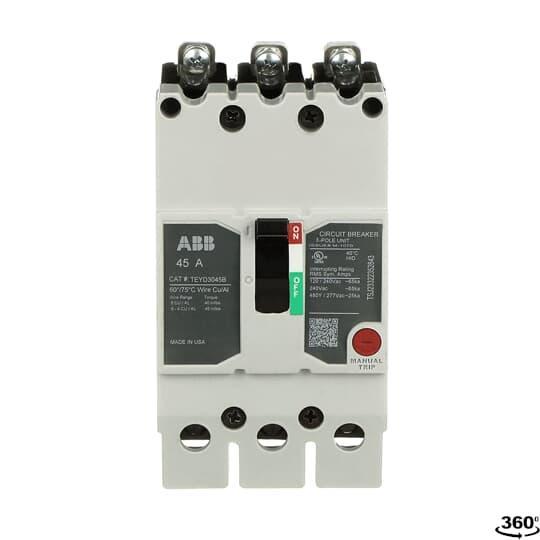

  • TEYD3045B GE 45A 3POLE 25KA 480/277 CKT BKR 78316446177
  • TEYD3045B GE 45A 3POLE 25KA 480/277 CKT BKR 78316446177
  • TEYD3045B GE 45A 3POLE 25KA 480/277 CKT BKR 78316446177
  • TEYD3045B GE 45A 3POLE 25KA 480/277 CKT BKR 78316446177

Description: GE Lighting Panel Circuit Breaker, Type TEY Compact, 120/240/277/480 V AC/250 V DC, 45 A, 50/60 Hz Frequency, 65 kA, 25 kA kA Interrupt, TEYD Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 10 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 3 in W x 3-1/16 in D Dimensions, Plastic

Manufacturer PN: TEYD3045B

UPC:  78316446177

Kendall Electric Inc PN: 3597571

Invoice Description:

TEYD3045B GE 45A 3POLE 25KA 480/277 CKT BKR 78316446177


SPEC SHEET

▸ See All in Lighting Panel Circuit Breakers


How Can We Make This Page Better?

GE TEYD3045B Type TEY Compact Lighting Panel Circuit Breaker With Cu/Al Load Lug, 120/240/277/480 V AC/250 V DC, 45 A, 65 kA, 25 kA kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature quick make/quick break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEYD breakers are available in 1, 2 and 3-pole versions, 2 and 3-pole versions can be ordered with auxiliary contact, shunt trip, under voltage release or bell alarm accessories.
GE Lighting Panel Circuit Breaker, Type TEY Compact, 120/240/277/480 V AC/250 V DC, 45 A, 50/60 Hz Frequency, 65 kA, 25 kA kA Interrupt, TEYD Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 10 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 3 in W x 3-1/16 in D Dimensions, Plastic

Specifications

 Actuator Type Pivot/Toggle Handle
 Amperage Rating 45 A
 Application For health care facilities, elevators, emergency systems and legally required standby systems such as generators and many other critical load scenarios, industries, electrical distribution and control applications
 Brand Name GE
 Connection Type Load Lug
 Dimensions 5-1/4 in H x 3 in W x 3-1/16 in D
 Frame TEYD
 Frequency Rating 50/60 Hz
 Manufacturer Part Number TEYD3045B
 Material Plastic
 Mounting Type Bolted-On
 Number of Poles 3
 PART NUMBER KEYWORDS TEYD3045B ; 11763336 ; 783164461770 ; 78316446177 ; 00783164461770
 Phase 3
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E11592|cUL File No. E11592
 Temperature Rating 40 deg C
 Type Type TEY Compact
 Voltage Rating 120/240/277/480 V AC/250 V DC

Features

▪ Ambient compensated
▪ Multiple short circuit tiers
▪ Cost effective protection
▪ Mounting base for unit mount installations
▪ 65 kA at 120/240 VAC, 65 kA at 240 VAC, 25 kA at 480Y/277 VAC interrupt rating

Resources

 Catalog Page
 Product Data Sheet
