ABB
  • TEY350 GE 3P-50A-480V BREAKER..
  • TEY350 GE 3P-50A-480V BREAKER..
  • TEY350 GE 3P-50A-480V BREAKER..
  • TEY350 GE 3P-50A-480V BREAKER..

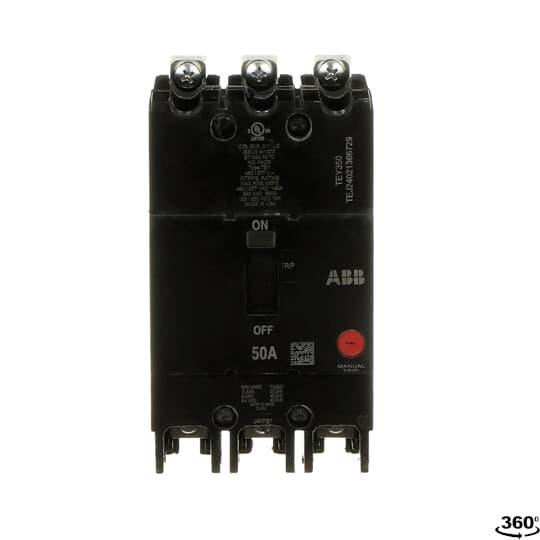

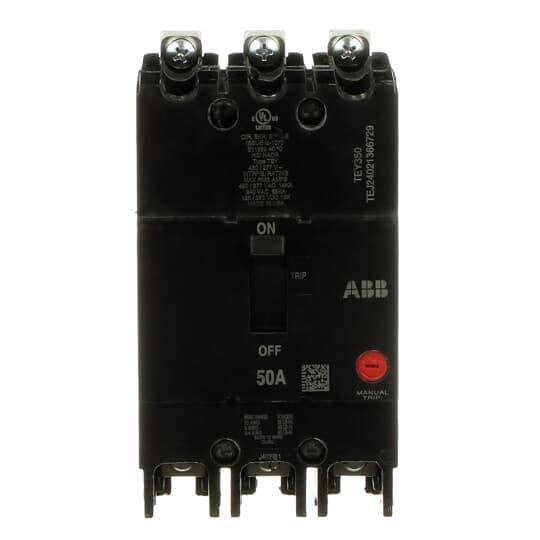

Description: GE Lighting Panel Circuit Breaker, Compact, 120/240/277 VAC, 50 A, 50/60 Hz Frequency, 65/14 kA Interrupt, TEY Frame, LI/Non-Interchangeable Thermal Magnetic Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 14 to 8 AWG, 12 to 8 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 3 in W x 3-1/16 in D Dimensions, Plastic

Manufacturer PN: TEY350

UPC:  78316418106

Kendall Electric Inc PN: 2014354

Invoice Description:

TEY350 GE 3P-50A-480V BREAKER..


SPEC SHEET

▸ See All in Lighting Panel Circuit Breakers


How Can We Make This Page Better?

GE TEY350 Compact Lighting Panel Circuit Breaker With Copper/Aluminum Load Lug, 120/240/277 VAC, 50 A, 65/14 kA Interrupt, 3 Poles, LI/Non-Interchangeable Thermal Magnetic Trip

Log In for Pricing and Availability




Description

The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. the bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. all TEY circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2 and 3-pole versions and can be ordered with auxiliary contact and shunt trip accessories.
GE Lighting Panel Circuit Breaker, Compact, 120/240/277 VAC, 50 A, 50/60 Hz Frequency, 65/14 kA Interrupt, TEY Frame, LI/Non-Interchangeable Thermal Magnetic Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 14 to 8 AWG, 12 to 8 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 3 in W x 3-1/16 in D Dimensions, Plastic

Specifications

 Actuator Type Pivot/Toggle Handle
 Amperage Rating 50 A
 Application Switchboards, Motor Control Centers, Lighting, Power and Customized Control Panelboards and Electrical Distribution Applications
 Brand Name GE
 Connection Type Load Lug
 Dimensions 5-1/4 in H x 3 in W x 3-1/16 in D
 Frame TEY
 Frequency Rating 50/60 Hz
 Manufacturer Part Number TEY350
 Material Plastic
 Mounting Type Bolted-On
 Number of Poles 3
 Phase 3
 Standards/Approvals UL File No. E11592|cUL File No. E11592|CSA File No. LR57114|HACR Rated|HID Rated
 Temperature Rating 40 deg C
 Type Compact
 Voltage Rating 120/240/277 VAC

Features

▪ Ambient compensated
▪ Multiple short circuit tiers
▪ Cost effective protection
▪ Mounting base for unit mount installations
▪ 14 kA at 277 VAC, 65 kA at 120 VAC, 65 kA at 120/240 VAC, 65 kA at 240 VAC interrupt rating
