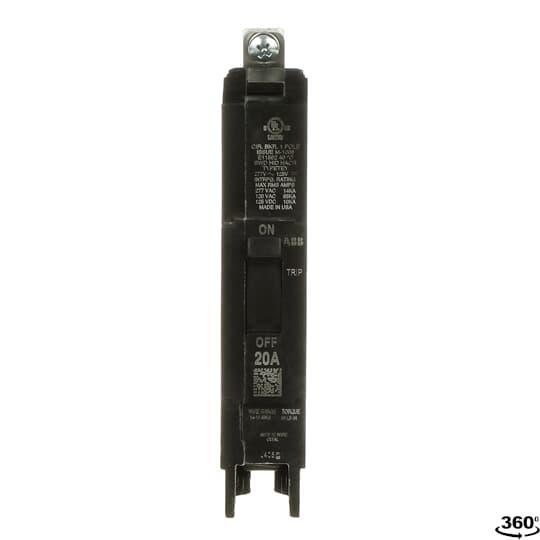

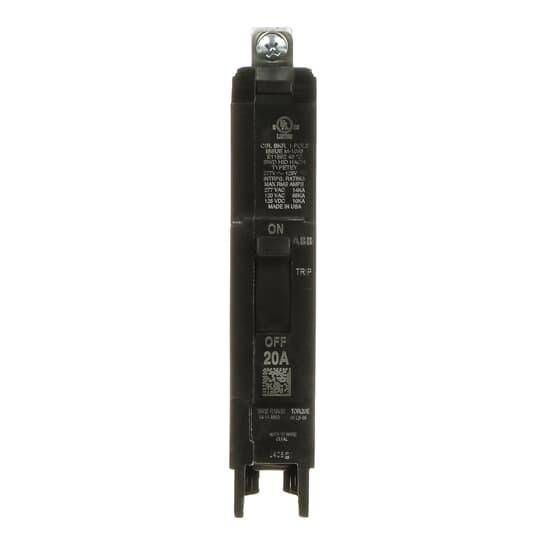

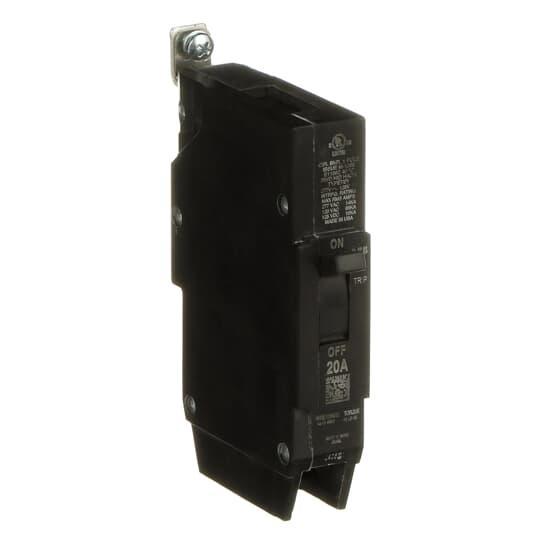

Description: GE Lighting Panel Circuit Breaker, Series: Q-Line®, 277 VAC, 20 A, 14 kA Interrupt, TEY Frame, LI/Non-Interchangeable Trip, 1 Pole, 1 ph, Load Lug Connection, 14 to 8 kcmil, 12 to 8 kcmil Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 1 in W x 3-1/16 in D Dimensions

Manufacturer PN: TEY120

UPC:  78316418091

Kendall Electric Inc PN: 2015004

Invoice Description:

TEY120 GE 1P 277V 20A BREAKER..


SPEC SHEET

▸ See All in Lighting Panel Circuit Breakers


How Can We Make This Page Better?

GE TEY120 Q-Line® Lighting Panel Circuit Breaker, 277 VAC, 20 A, 14 kA Interrupt, 1 Pole, LI/Non-Interchangeable Trip

Log In for Pricing and Availability




Description

The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. the bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. all TEY circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2 and 3-pole versions and can be ordered with auxiliary contact and shunt trip accessories.
GE Lighting Panel Circuit Breaker, Series: Q-Line®, 277 VAC, 20 A, 14 kA Interrupt, TEY Frame, LI/Non-Interchangeable Trip, 1 Pole, 1 ph, Load Lug Connection, 14 to 8 kcmil, 12 to 8 kcmil Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 1 in W x 3-1/16 in D Dimensions

Specifications

 Amperage Rating 20 A
 Application Industrial, Electrical Distribution and Control Applications
 Brand Name GE
 Connection Type Load Lug
 Dimensions 5-1/4 in H x 1 in W x 3-1/16 in D
 Frame TEY
 Includes Integral Copper/Aluminum Load Lug
 Manufacturer Part Number TEY120
 Mounting Type Bolted-On
 Number of Poles 1
 Phase 1
 Series Q-Line®
 Standards/Approvals UL File No. E11592|CSA File No. LR57114|GSA Compliant|HACR Rated
 Temperature Rating 40 deg C
 Voltage Rating 277 VAC

Features

▪ Standard continuous current rated
▪ EY GO schedule
▪ UL listed for HID (high intensity discharge), all 50 A or less
▪ HACR, high intensity discharge (HID) rated special marking
▪ 65 kA at 120 VAC, 14 kA at 120/240/277 VAC interrupt rating
▪ Suitable for reverse feed
