nVent

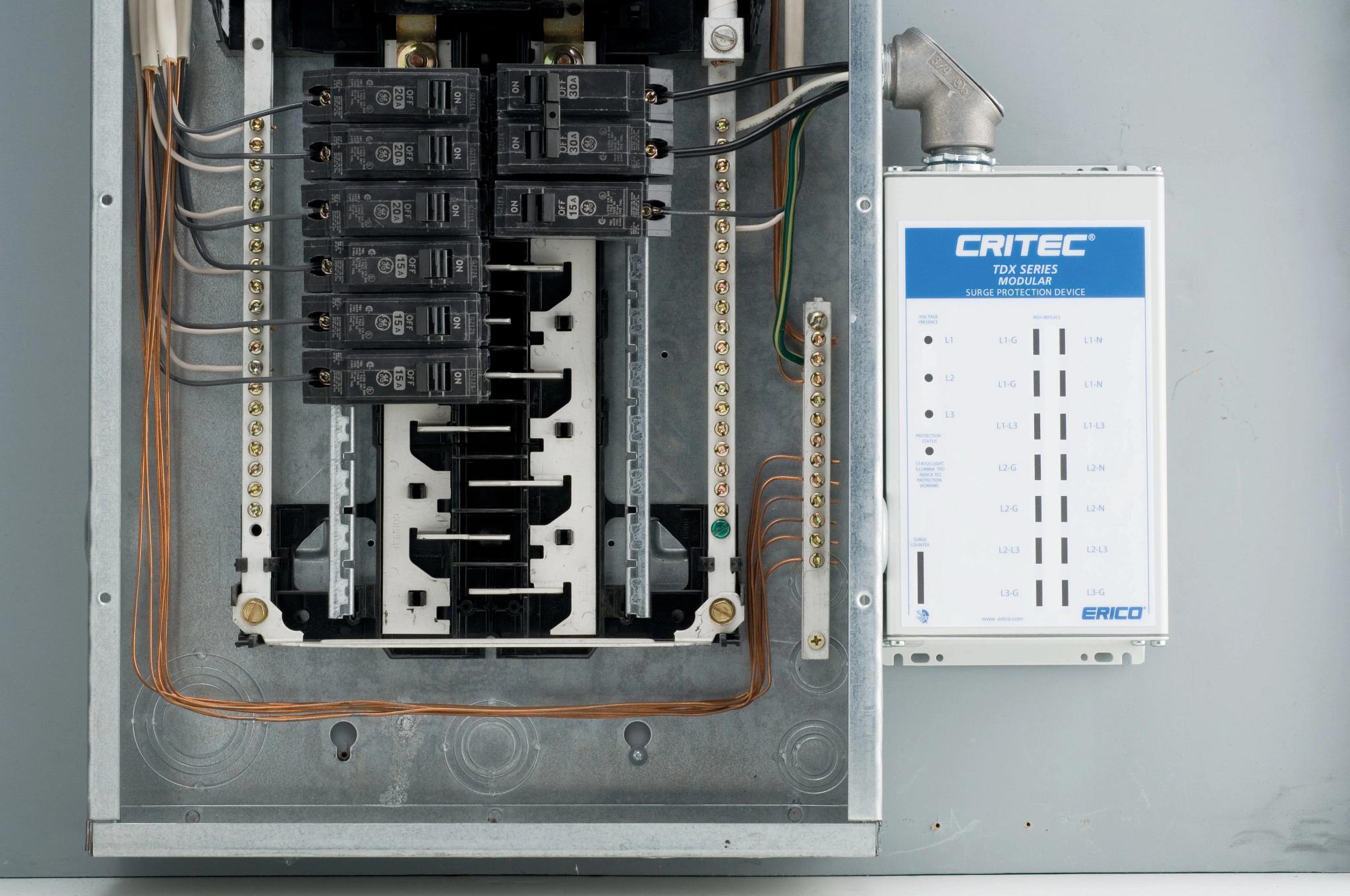

TDX200M120/208 ERICO PROTECTOR SURGE TDX200M 3P 120/208V 4W+G 200KA/PHA

Mouse over image to zoom, click to enlarge

  • TDX200M120/208 ERICO PROTECTOR SURGE TDX200M 3P 120/208V 4W+G 200KA/PHA
  • TDX200M120/208 ERICO PROTECTOR SURGE TDX200M 3P 120/208V 4W+G 200KA/PHA

Description: nVent ERICO Panel Protector, Modular, Series: TDX, 120/208 V AC Electrical Rating, 50/60 Hz Frequency, 5 Wires, 200 kA Short Circuit, 200 kA Peak Surge Current, 100 kA Nominal Discharge, Modes of Protection: L-N/L-PE/N-PE, LED/Mechanical Flag/Audible Alarm Indicator, 3 ph, Environmental Conditions: -40 to 176 deg F Operating Temperature, NEMA 4/IP65 Enclosure, Straight Nipple Mounting, Metal, 3.31 in W x 3.07 in D x 9.45 in H Dimensions

Manufacturer PN: TDX200M120208

UPC:  78285659334

Kendall Electric Inc PN: 4094535

Invoice Description:

TDX200M120/208 ERICO PROTECTOR SURGE TDX200M 3P 120/208V 4W+G 200KA/PHA


SPEC SHEET

▸ See All in Surge Panel Protectors


How Can We Make This Page Better?

nVent ERICO TDX200M120208 Modular Panel Protector, 120/208 V AC, 50/60 Hz, 200 kA SCCR, 3 Phase

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

nVent ERICO Panel Protector, Modular, Series: TDX, 120/208 V AC Electrical Rating, 50/60 Hz Frequency, 5 Wires, 200 kA Short Circuit, 200 kA Peak Surge Current, 100 kA Nominal Discharge, Modes of Protection: L-N/L-PE/N-PE, LED/Mechanical Flag/Audible Alarm Indicator, 3 ph, Environmental Conditions: -40 to 176 deg F Operating Temperature, NEMA 4/IP65 Enclosure, Straight Nipple Mounting, Metal, 3.31 in W x 3.07 in D x 9.45 in H Dimensions

Specifications

 Application Power Connections, Surge Protection, Facility Electrical Protection, Panel, Rail, Solar Power, Telecom, Utility and Wind Power Applications
 Brand Name nVent ERICO
 Dimensions 3.31 in W x 3.07 in D x 9.45 in H
 Electrical Ratings 120/208 V AC
 Enclosure NEMA 4/IP65
 Environmental Conditions -40 to 176 deg F Operating Temperature
 Frequency Rating 50/60 Hz
 Indicator LED/Mechanical Flag/Audible Alarm
 Manufacturer Part Number TDX200M120208
 Material Metal
 Modes of Protection L-N/L-PE/N-PE
 Mounting Type Straight Nipple
 Nominal Discharge Current 100 kA
 Number of Wires 5
 PART NUMBER KEYWORDS TDX200M120208 ; 15589550 ; 782856593348 ; 78285659334 ; 00782856593348 ; 8711893060201
 Peak Surge Current 200 kA
 Phase 3
 Series TDX
 Short Circuit Current Rating 200 kA
 Standards/Approvals UL 1449 Edition 4|CE Certified|C-Tick Approved|ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C|ANSI/IEEE C62.41.2-2002 Scenario II Exposure 3|IEC 61643-1 Class I, Class II
 Type Modular

Features

▪ Transient Discriminating (TD) Technology provides increased service life
▪ Modular design allows easy replacement of surge modules
▪ Built-in features include TD Technology, thermal protection and short circuit current fusing
▪ Compact NEMA-4 enclosure design can be flush mounted or installed in a small space
▪ Status indication flag per mode, voltage presence LEDs, audible alarm and voltage-free contacts providing remote status monitoring
▪ 200kA 8/20 micro
