nVent

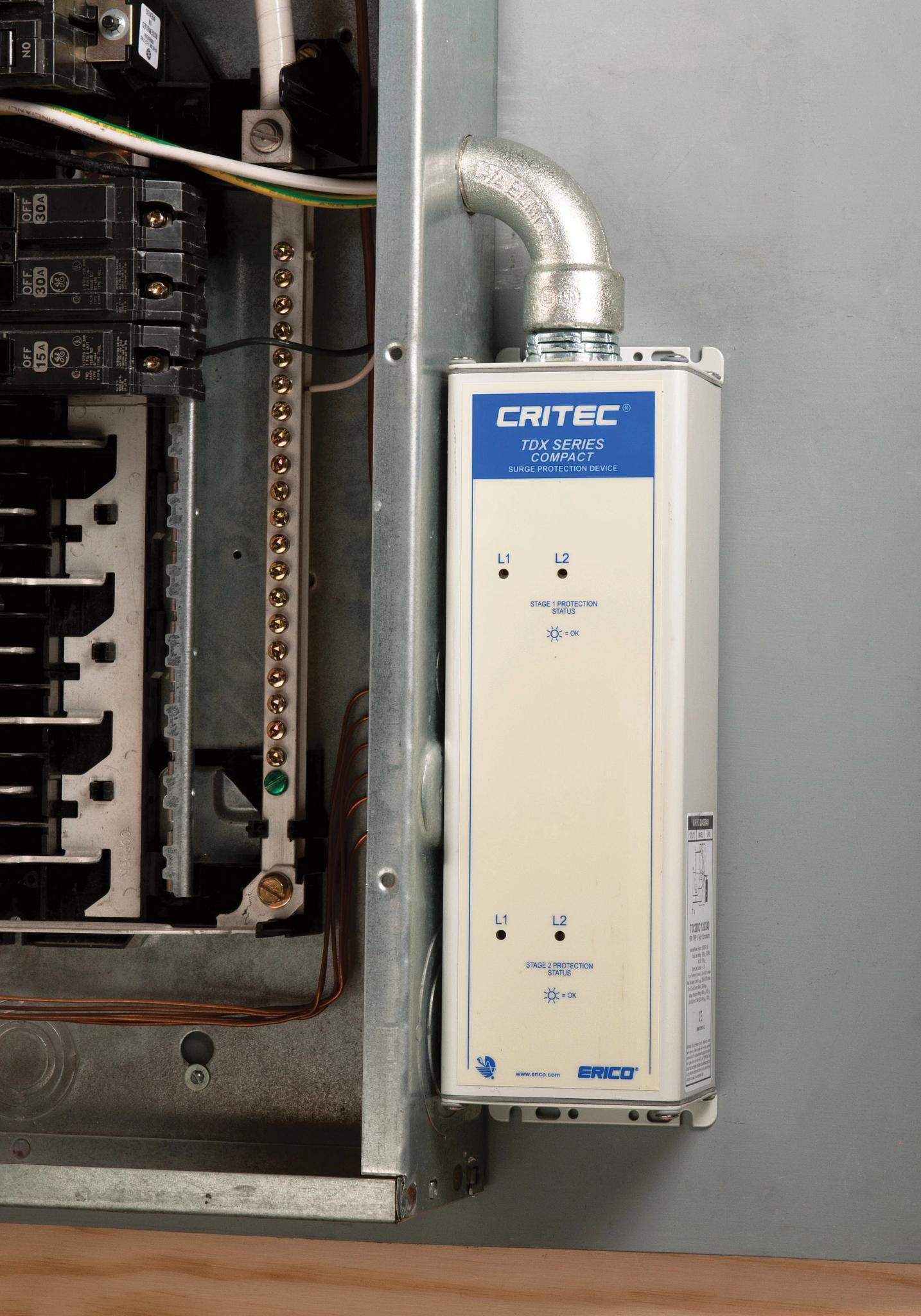

TDX200C120/208 ERICO SUPRESOR DE TRANSITORIOS AW+G 120/208 78285667019

Mouse over image to zoom, click to enlarge

  • TDX200C120/208 ERICO SUPRESOR DE TRANSITORIOS AW+G 120/208 78285667019
  • TDX200C120/208 ERICO SUPRESOR DE TRANSITORIOS AW+G 120/208 78285667019

Description: nVent ERICO Surge Panel Protector, Compact, Series: TDX Series, 120/208 V AC Electrical Rating, 50/60 Hz Frequency, 3 ph, 10 AWG Wire, 200 kA Short Circuit, 200 kA Peak Surge Current, Modes of Protection: L-N/L-PE/N-PE, LED/Remote Contacts Indicator, Environmental Conditions: -40 to 176 deg F, NEMA 4/IP65 Enclosure, 3/4 in Straight Nipple Mounting, 11 in H x 3.31 in W x 3.07 in D Dimensions, Metal

Manufacturer PN: TDX200C120/208

UPC:  78285667019

Kendall Electric Inc PN: 3574210

Invoice Description:

TDX200C120/208 ERICO SUPRESOR DE TRANSITORIOS AW+G 120/208 78285667019


SPEC SHEET

▸ See All in Surge Panel Protectors


How Can We Make This Page Better?

nVent ERICO TDX200C120/208 Compact Surge Panel Protector, 120/208 V AC, 50/60 Hz, 3 Phase, 10 AWG Wire

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

nVent ERICO Surge Panel Protector, Compact, Series: TDX Series, 120/208 V AC Electrical Rating, 50/60 Hz Frequency, 3 ph, 10 AWG Wire, 200 kA Short Circuit, 200 kA Peak Surge Current, Modes of Protection: L-N/L-PE/N-PE, LED/Remote Contacts Indicator, Environmental Conditions: -40 to 176 deg F, NEMA 4/IP65 Enclosure, 3/4 in Straight Nipple Mounting, 11 in H x 3.31 in W x 3.07 in D Dimensions, Metal

Specifications

 Application Facility Electrical Protection, Lightning Protection, Panel, Rail, Solar Power, Telecom, Utility and Wind Power Applications
 Brand Name nVent ERICO
 Dimensions 11 in H x 3.31 in W x 3.07 in D
 Electrical Ratings 120/208 V AC
 Enclosure NEMA 4/IP65
 Environmental Conditions -40 to 176 deg F
 Frequency Rating 50/60 Hz
 Indicator LED/Remote Contacts
 Manufacturer Part Number TDX200C120/208
 Material Metal
 Modes of Protection L-N/L-PE/N-PE
 Mounting Type 3/4 in Straight Nipple
 Peak Surge Current 200 kA
 Phase 3
 Series TDX Series
 Short Circuit Current Rating 200 kA
 Standards/Approvals RoHS Compliant|UL Listed|CE Certified|C-Tick Certified|UL 1449 Edition 4 Type 1/2|ANSI/IEEE C62.41.2-2002 Cat A/Cat B/Cat C|C62.41.2-2002 Scenario II
 Type Compact

Features

▪ Built-in features include TD Technology, thermal protection and short circuit current fusing
▪ Compact NEMA-4 enclosure design can be flush mounted or installed in a small space
▪ LED status indication and voltage-free contacts provide remote status monitoring
▪ 200 kA 8/20 micros maximum surge rating provides protection suitable for main-distribution panels and an extended operational life
