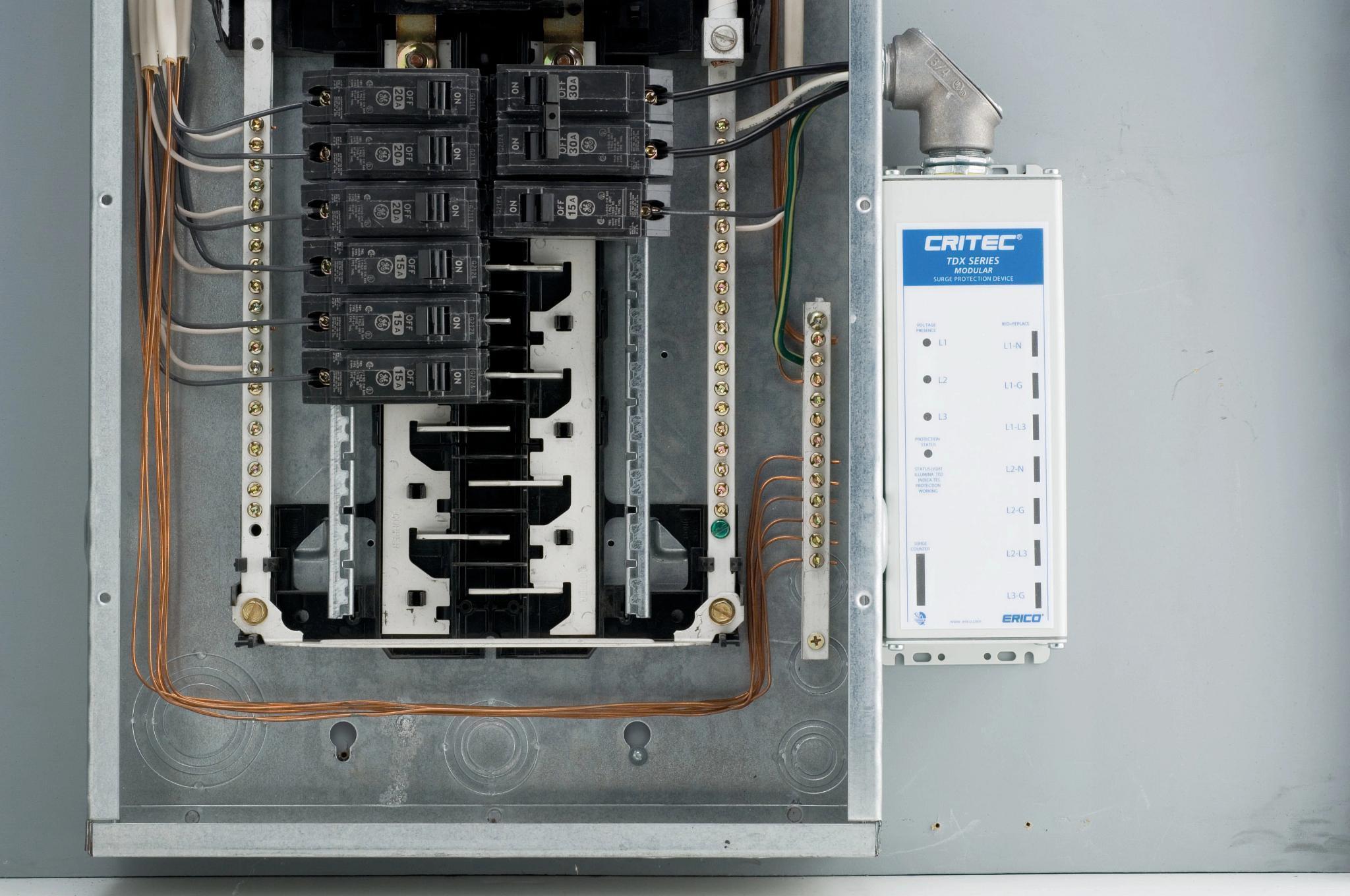

TDX100M240D ERICO PROTECTOR,SURGE,240V DELTA 3W+G,100KA/P 78285659330

Mouse over image to zoom, click to enlarge

  • TDX100M240D ERICO PROTECTOR,SURGE,240V DELTA 3W+G,100KA/P 78285659330
  • TDX100M240D ERICO PROTECTOR,SURGE,240V DELTA 3W+G,100KA/P 78285659330

Description: nVent ERICO Surge Panel Protector, Modular, Series: TDX Series, 240 Delta V AC Electrical Rating, 50/60 Hz Frequency, 3 ph, 10 AWG Wire, 200 kA Short Circuit, 100 kA Peak Surge Current, Modes of Protection: L-N/L-PE/N-PE, Audible Alarm/LED/Mechanical Flag Indicator, Environmental Conditions: -40 to 176 deg F, NEMA 4/IP65 Enclosure, 3/4 in Straight Nipple Mounting, 9.45 in H x 3.31 in W x 3.07 in D Dimensions, Metal

Manufacturer PN: TDX100M240D

UPC:  78285659330

Kendall Electric Inc PN: 3488830

Invoice Description:

TDX100M240D ERICO PROTECTOR,SURGE,240V DELTA 3W+G,100KA/P 78285659330


SPEC SHEET

How Can We Make This Page Better?

nVent ERICO TDX100M240D Modular Surge Panel Protector, 240 Delta V AC, 50/60 Hz, 3 Phase, 10 AWG Wire

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

nVent ERICO Surge Panel Protector, Modular, Series: TDX Series, 240 Delta V AC Electrical Rating, 50/60 Hz Frequency, 3 ph, 10 AWG Wire, 200 kA Short Circuit, 100 kA Peak Surge Current, Modes of Protection: L-N/L-PE/N-PE, Audible Alarm/LED/Mechanical Flag Indicator, Environmental Conditions: -40 to 176 deg F, NEMA 4/IP65 Enclosure, 3/4 in Straight Nipple Mounting, 9.45 in H x 3.31 in W x 3.07 in D Dimensions, Metal

Specifications

 Application Facility Electrical Protection, Lightning Protection, Panel, Rail, Solar Power, Telecom, Utility and Wind Power Applications
 Brand Name nVent ERICO
 Dimensions 9.45 in H x 3.31 in W x 3.07 in D
 Electrical Ratings 240 Delta V AC
 Enclosure NEMA 4/IP65
 Environmental Conditions -40 to 176 deg F
 Frequency Rating 50/60 Hz
 Indicator Audible Alarm/LED/Mechanical Flag
 Manufacturer Part Number TDX100M240D
 Material Metal
 Modes of Protection L-N/L-PE/N-PE
 Mounting Type 3/4 in Straight Nipple
 PART NUMBER KEYWORDS TDX100M240D ; 14848607 ; 782856593300 ; 78285659330 ; 00782856593300
 Peak Surge Current 100 kA
 Phase 3
 Series TDX Series
 Short Circuit Current Rating 200 kA
 Standards/Approvals RoHS Compliant|CE Certified|C-Tick Certified|UL 1449 Edition 4 Type 1/2|ANSI/IEEE C62.41.2-2002 Cat A/Cat B/Cat C|C62.41.2-2002 Scenario II|IEC 61643-1 Class I/Class II
 Type Modular

Features

▪ Transient Discriminating (TD) Technology provides increased service life
▪ Modular design allows easy replacement of surge modules
▪ Built-in features include TD Technology, thermal protection and short circuit current fusing
▪ Compact NEMA-4 enclosure design can be flush mounted or installed in a small space
▪ Status indication flag per mode, voltage presence LEDs, audible alarm and voltage-free contacts providing remote status monitoring
▪ 100 kA 8/20 micros maximum surge rating provides protection suitable for main-distribution panels and an extended operational life
