Leviton

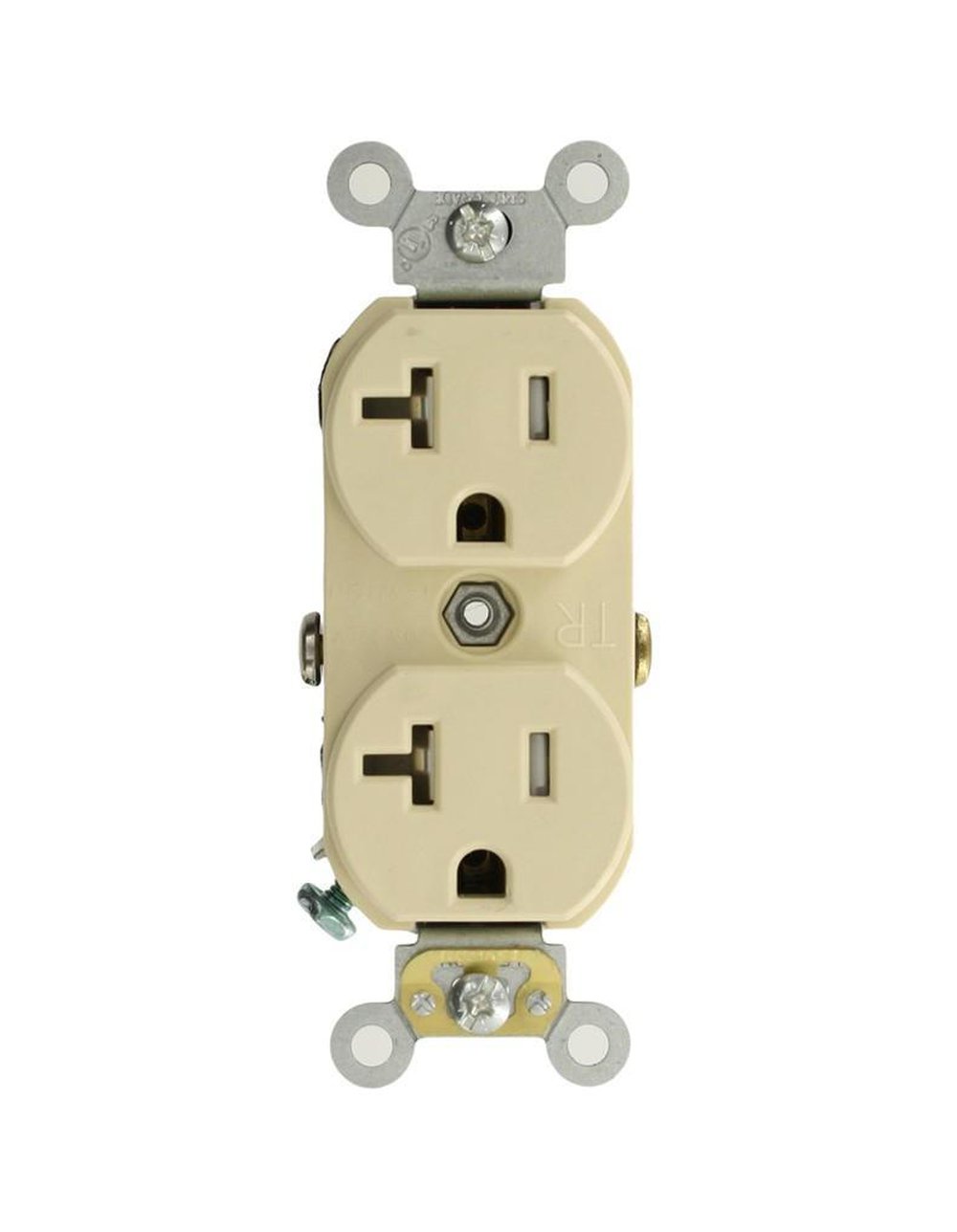

TCR20-I LEVITON TMPR RESIST DUP COM REC 07847765533

Mouse over image to zoom, click to enlarge

Description: Leviton® Straight Blade Receptacle, Duplex Self-Grounding Tamper and Weather Resistant, 125 V AC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial Grade, -40 to 60 deg C, Thermoplastic, Ivory, 1.36 in L x 1.2 in W x 46 in H

Manufacturer PN: TCR20-I

UPC:  07847765533

Kendall Electric Inc PN: 3272744

Invoice Description:

TCR20-I LEVITON TMPR RESIST DUP COM REC 07847765533


SPEC SHEET

▸ See All in Straight Blade Receptacles


How Can We Make This Page Better?

Leviton® TCR20-I Duplex Self-Grounding Tamper and Weather Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Ivory

Log In for Pricing and Availability




Description

Plug into safety with Leviton® tamper resistant receptacles. As a long time manufacturer of tamper resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in residential, commercial, industrial and hospital grades. The National Electrical Code® mandates the use of tamper resistant receptacles in various applications and has expanded the usage requirements over the course of several code cycles.
Leviton® Straight Blade Receptacle, Duplex Self-Grounding Tamper and Weather Resistant, 125 V AC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial Grade, -40 to 60 deg C, Thermoplastic, Ivory, 1.36 in L x 1.2 in W x 46 in H

Specifications

 Amperage Rating 20 A
 Brand Name Leviton®
 Color Ivory
 Dimensions 1.36 in L x 1.2 in W x 46 in H
 Grade Commercial
 Horsepower 1 hp
 Manufacturer Part Number TCR20-I
 Material Thermoplastic
 NEMA Rating NEMA 5-20R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS TCR20-I ; TCR20I ; 12210761 ; 078477655337 ; 78477655337 ; 07847765533 ; 00078477655337
 Standards/Approvals NEMA WD-1/WD-6|ANSI C-73|NOM 057|cULus File No. E13399
 Temperature Rating -40 to 60 deg C
 Type Duplex Self-Grounding Tamper and Weather Resistant
 Voltage Rating 125 V AC

Features

▪ Solid or stranded building wire
▪ Narrow body duplex receptacle
▪ Dielectric voltage withstands 2000 VAC per UL 498
▪ Full rated current
▪ Brass 0.031 THK line contacts
▪ Plated steel terminal screws
▪ Plated steel grounding screw
▪ Zinc plated steel strap
▪ Brass ground clips
▪ Shutter mechanism - Delrin® acetal

Resources

 Catalog Page
 MSDS URL
 Product Data Sheet
