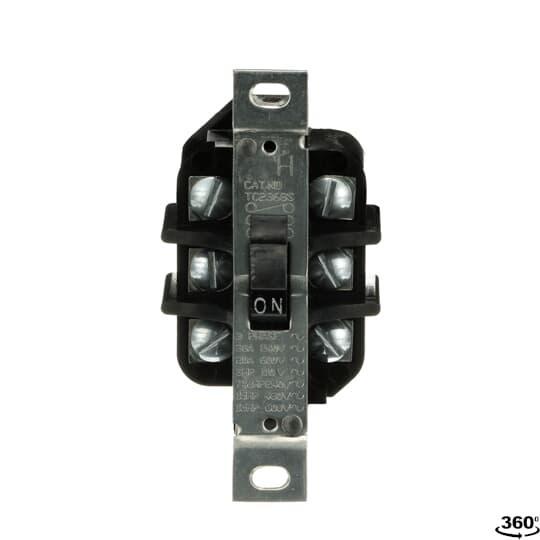

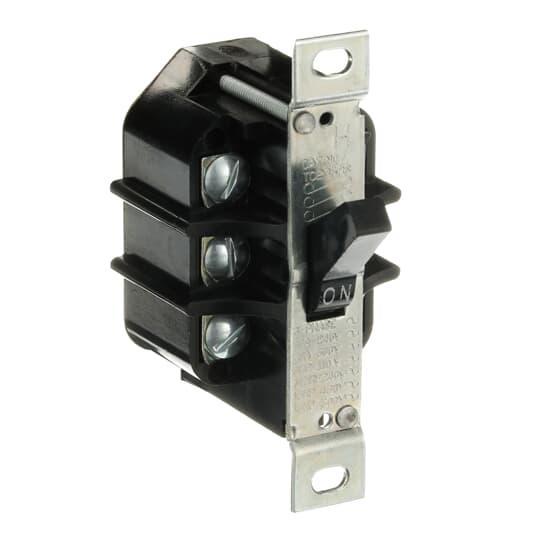

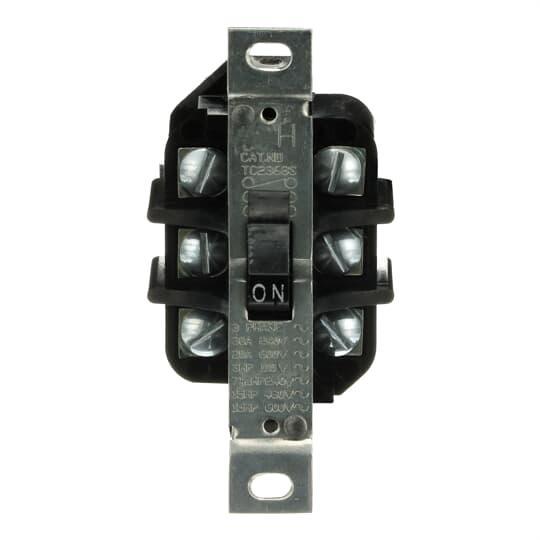

Description: GE Spec-Setter™ Heavy Duty Safety Switch, Definite Purpose Fused Manual Motor Starting Type TC, 240/600 V AC, 20/30 A, 7-1/2 hp, 15 hp, 50/60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, 3PST Contact Form, Toggle Actuator, 3-Point/Self-Leveling Mounting, Line/Load Lug Terminal, 60/75 deg C, 2-1/2 in H x 1-3/4 in W x 3-3/4 in D Dimensions, Thermoplastic, Galvanized/Powder Coated

Manufacturer PN: TC2368S

UPC:  78316400097

Kendall Electric Inc PN: 2019483

Invoice Description:

TC2368S GE 30A 250V 3P SW


SPEC SHEET

How Can We Make This Page Better?

GE Spec-Setter™ TC2368S Definite Purpose Fused Manual Motor Starting Type TC Heavy Duty Safety Switch, 240/600 V AC, 20/30 A, 7-1/2 hp, 15 hp, 3PST Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

GE heavy duty safety switches are designed for commercial and industrial applications where safety, high performance and continuity of service are essential. Heavy duty switches are available in 30 to 1200 A, 600 Vac, 600 Vdc maximum, fusible and non-fusible units and in NEMA Type 1 (indoor), Type 3R (outdoor), Type 4/4X (water and dust-tight, corrosion resistant) and Type 5/12 (drip and dust-tight) enclosures. When used with Class R or J fuses, 30 to 600 A switches have a UL Listed short circuit rating of 200000 A rms symmetrical. Switches rated 800 to 1200 A use Class L fuses and have a UL Listed short circuit rating of 100000 A rms symmetrical. GE heavy duty safety switches are UL Listed as service entrance equipment when installed in accordance with the National Electrical Code.
GE Spec-Setter™ Heavy Duty Safety Switch, Definite Purpose Fused Manual Motor Starting Type TC, 240/600 V AC, 20/30 A, 7-1/2 hp, 15 hp, 50/60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, 3PST Contact Form, Toggle Actuator, 3-Point/Self-Leveling Mounting, Line/Load Lug Terminal, 60/75 deg C, 2-1/2 in H x 1-3/4 in W x 3-3/4 in D Dimensions, Thermoplastic, Galvanized/Powder Coated

Specifications

 Actuator Type Toggle
 Amperage Rating 20/30 A
 Application Commercial, Industrial, Electrical Distribution and Control Applications
 Brand Name GE
 Contact Form 3PST
 Dimensions 2-1/2 in H x 1-3/4 in W x 3-3/4 in D
 Finish Galvanized/Powder Coated
 Frequency Rating 50/60 Hz
 Horsepower 7-1/2 hp, 15 hp
 Manufacturer Part Number TC2368S
 Material Thermoplastic
 Mounting Type 3-Point/Self-Leveling
 Number of Poles 3
 Number of Wires 3
 PART NUMBER KEYWORDS TC2368S ; 7647255 ; 783164000979 ; 78316400097 ; 00783164000979
 Short Circuit Current Rating 200 kA
 Standards/Approvals UL Listed|CSA C22.2 No. 4-04|cUL Listed|Federal Specification WS865C|Seismic Certified
 Temperature Rating 60/75 deg C
 Terminal Type Line/Load Lug
 Type Definite Purpose Fused Manual Motor Starting Type TC
 Voltage Rating 240/600 V AC

Features

▪ 3 hp at 120 VAC, 7.5 hp at 240 VAC, 15 hp at 480/600 VAC horsepower rating
▪ Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearance
▪ Coin-proof, defeatable dual interlocks meet all safety inspection requirements
▪ Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
▪ Three-point mounting pattern speeds installation and simplifies ganging in close quarters
▪ Clear line shield allows visual verification of blade position while guarding against accidental contact with live parts
▪ Plated blades provide visible confirmation of contact position
▪ Direct-drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life
▪ Spring-reinforced fuse clips assure reliable contact for cool operation
▪ Suitable for class H, K, J or R fuses
