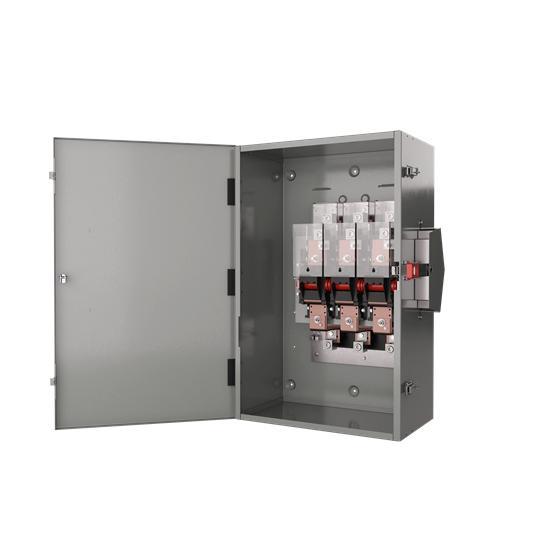

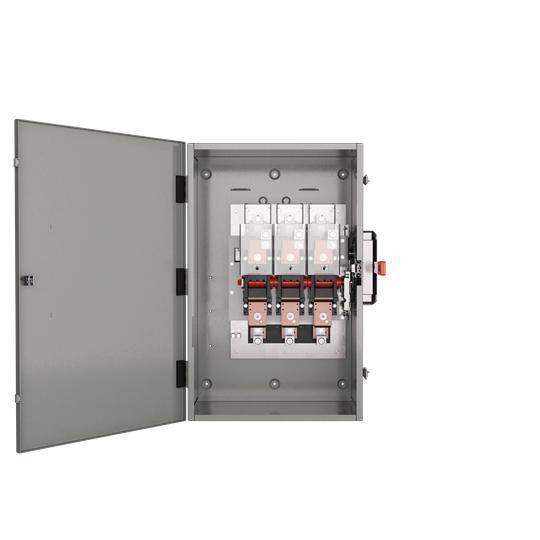

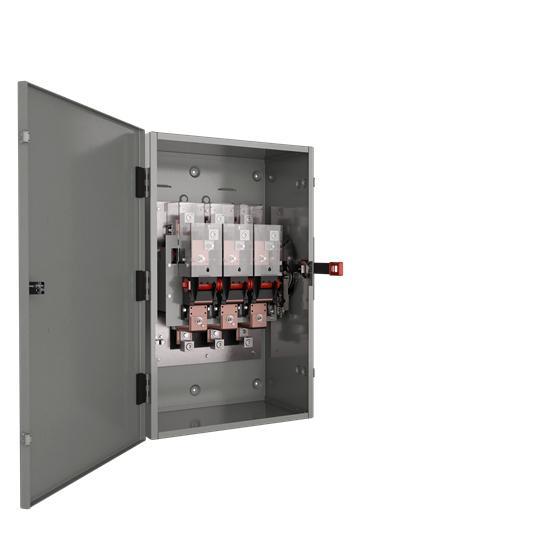

Description: GE Spec-Setter™ Emergency Power Transfer Switch, 3-Phase Non-Fusible Double Throw, Series: TC Series, 120/240 V AC, 100 A, 7 hp Power, 2 Pole, NEMA 3R Enclosure, 60/75 deg C, Steel, Galvanized, 15.1 in H x 7.2 in W x 5.2 in D Dimensions

Manufacturer PN: TC10323R

UPC:  78316400033

Kendall Electric Inc PN: 2102391

Invoice Description:

TC10323R GE 120/240V 100 AMP TYP3R GNL DTY SW 78316400033


SPEC SHEET

▸ See All in Manual Transfer Switches


How Can We Make This Page Better?

GE Spec-Setter™ TC10323R TC Series 3-Phase Non-Fusible Double Throw Emergency Power Transfer Switch, 120/240 V AC, 100 A, 7 hp Power Rating, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Designed for outdoor rural dwellings and farm buildings to allow connection to a standby generator. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the national electrical code suitable for use as transfer equipment in standby systems in accordance with article 702 of the national electrical code non-fusible. 60/75 deg C conductor rating lockable handle in on or off position galvanized steel construction.
GE Spec-Setter™ Emergency Power Transfer Switch, 3-Phase Non-Fusible Double Throw, Series: TC Series, 120/240 V AC, 100 A, 7 hp Power, 2 Pole, NEMA 3R Enclosure, 60/75 deg C, Steel, Galvanized, 15.1 in H x 7.2 in W x 5.2 in D Dimensions

Specifications

 Amperage Rating 100 A
 Application For electrical distribution and control, residential or light commercial applications where duty is not severe and double throw applications
 Brand Name GE
 Dimensions 15.1 in H x 7.2 in W x 5.2 in D
 Enclosure NEMA 3R
 Finish Galvanized
 Manufacturer Part Number TC10323R
 Material Steel
 Number of Poles 2
 PART NUMBER KEYWORDS TC10323R ; 7646914 ; 783164000337 ; 78316400033 ; 00783164000337
 Power Rating 7 hp
 Series TC Series
 Standards/Approvals UL 98|CSA C22.2 No. 4-04|Federal Specification W-S-865C|NEMA KS1 - 2013|Seismic Certified
 Temperature Rating 60/75 deg C
 Type 3-Phase Non-Fusible Double Throw
 Voltage Rating 120/240 V AC

Features

▪ Plated copper current carrying parts increase longevity and performance
▪ Bonding strap can be used to ground neutral for service entrance applications
▪ Positive make and break is provided by fiber loop straps between knife blade contacts and 1-piece operating yoke
▪ Lockable 3-position (ON-OFF-ON) handle
▪ Galvanized steel enclosure with drip shield
▪ Not quick-make, quick-break
