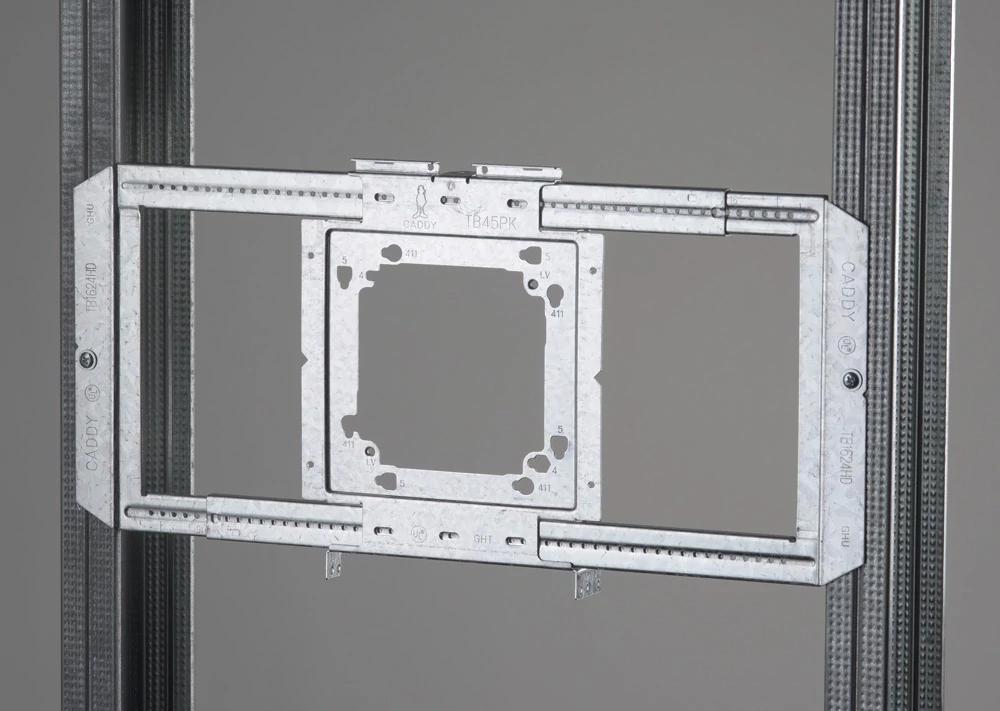

TB45PK CADDY BOX MOUNTING PLATE FAR SIDE SUPPORT 4" 4 11/16" 5"

Mouse over image to zoom, click to enlarge

  • TB45PK CADDY BOX MOUNTING PLATE FAR SIDE SUPPORT 4" 4 11/16" 5"
  • TB45PK CADDY BOX MOUNTING PLATE FAR SIDE SUPPORT 4" 4 11/16" 5"

Description: nVent CADDY Box Mounting Plate, Snap-On, For Use With: Heavy Duty Telescoping Bracket and Metal or Wood Stud, Specifications: 4 in, 4-11/16 in, 5 in Box Size, Steel, Pre-Galvanized, 6.3 in L Dimensions

Manufacturer PN: TB45PK

UPC:  78285699362

Kendall Electric Inc PN: 4389542

Invoice Description:

TB45PK CADDY BOX MOUNTING PLATE FAR SIDE SUPPORT 4" 4 11/16" 5"


SPEC SHEET

▸ See All in Box Mounting Accessories


How Can We Make This Page Better?

nVent CADDY TB45PK Snap-On Box Mounting Plate With Far Side Support, For Use With Heavy Duty Telescoping Bracket and Metal or Wood Stud, 4 in, 4-11/16 in, 5 in Box Size, Steel

Log In for Pricing and Availability




Description

nVent CADDY Box Mounting Plate, Snap-On, For Use With: Heavy Duty Telescoping Bracket and Metal or Wood Stud, Specifications: 4 in, 4-11/16 in, 5 in Box Size, Steel, Pre-Galvanized, 6.3 in L Dimensions

Specifications

 Application Data Communication and Low Voltage, Electrical Fixing and Fastening Applications
 Brand Name nVent CADDY
 Dimensions 6.3 in L
 Finish Pre-Galvanized
 Manufacturer Part Number TB45PK
 Material Steel
 Specifications 4 in, 4-11/16 in, 5 in Box Size
 Standards/Approvals UL Listed
 Suitable For Use With Heavy Duty Telescoping Bracket and Metal or Wood Stud
 Type Snap-On
 Video Links

Features

▪ Can also be mounted directly to metal or wood studs
▪ Innovative far side support allows bracket to be installed on virtually any stud depth and up to 3 in wide studs
▪ Key holes provide ease of installation and positive location when mounting boxes
▪ Screws can be removed and reinstalled in extruded holes multiple times without compromising holding strength
▪ Accepts vertically or horizontally mounted single and double gang adjustable mud rings
▪ Box Lock tab secures box to bracket during assembly and allows mud ring to be removed following installation on the stud, providing easy frontal access to the inside of the box
