Part # 4360280

instructions how to enable JavaScript in your web browser

Page Loading...

Eaton

Mouse over image to zoom, click to enlarge

Description: Bussmann Terminal Block Strips and Barrier Block, Double Row, 600 V, 30 A, 9 in-lb, Panel Mount, #6-32 TPI Screw, -40 to 130 deg C, Brass/Steel/Thermoplastic, Black, 9.5 in L x 1.37 in W x 0.75 in H

Manufacturer PN: TB200HB-20

UPC: 05171219451

Kendall Electric Inc PN: 4360280

Invoice Description:

TB200HB-20 BARRIER BLOCK

SPEC SHEET

▸ See All in Terminal Block Strips & Barrier Blocks

How Can We Make This Page Better?

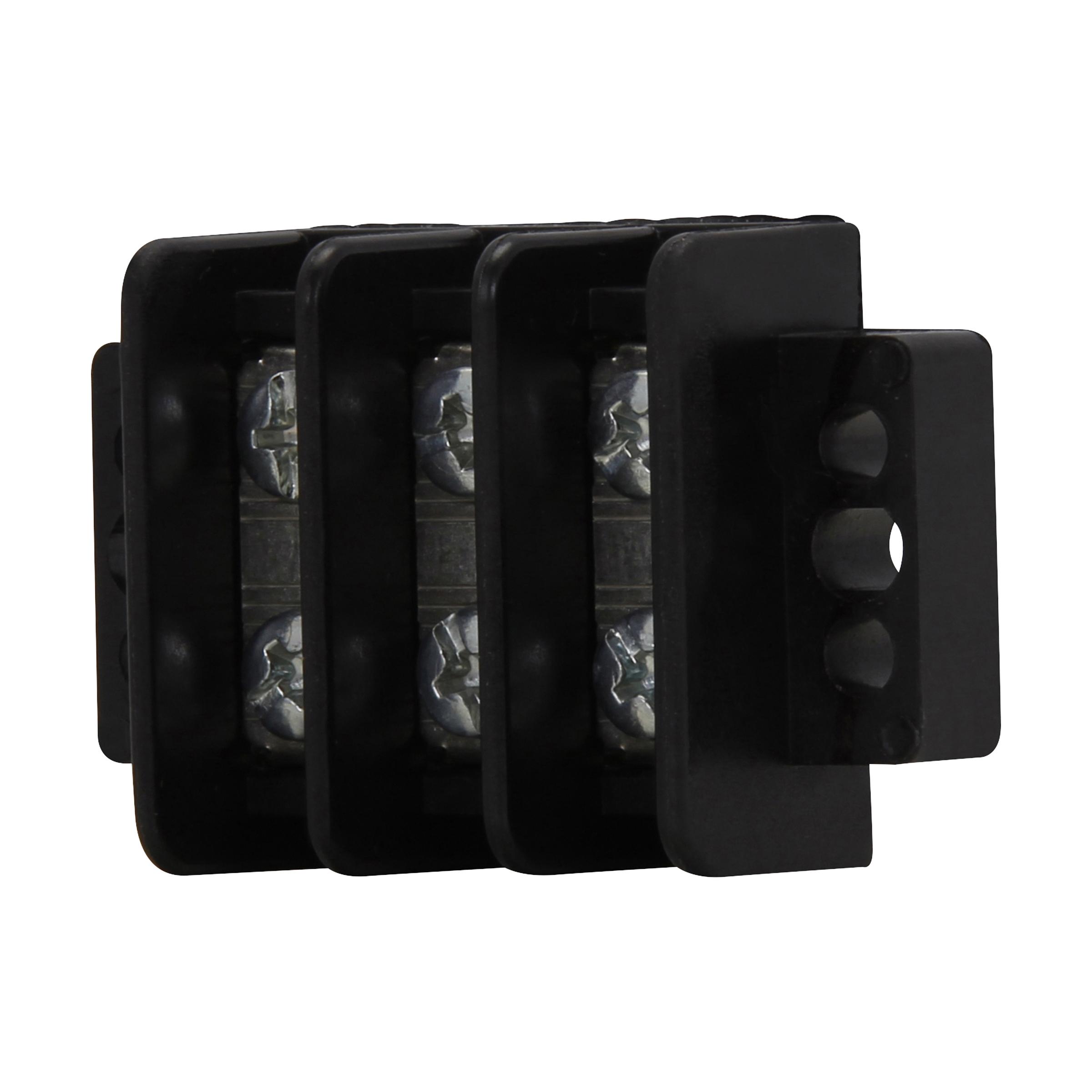

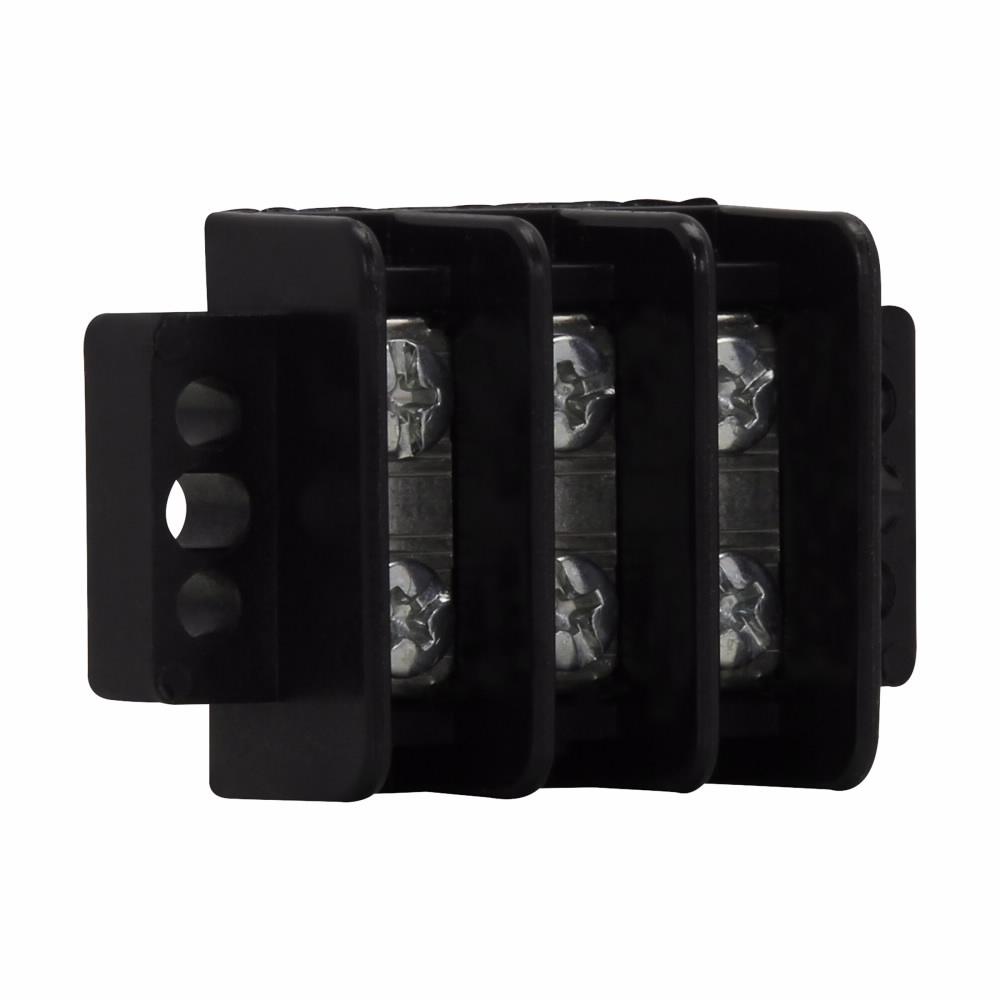

Bussmann TB200HB-20 Double Row Terminal Block Strips and Barrier Block, 600 V, 30 A, Black

Note: Lead times are estimates only

Description Specifications Resources

Description

Eaton's Bussmann series panel mount terminal blocks are available in double row terminal blocks and multi-pole terminal blocks. Double row terminal blocks are made up to 36-poles and available in a variety of voltage and ampacity ratings. Multi-pole panel mount terminal blocks provide a compact, high density circuit connection solution without the necessity of a mounting rail. These products are designed to be nested together to form one string of circuit connections.

Bussmann Terminal Block Strips and Barrier Block, Double Row, 600 V, 30 A, 9 in-lb, Panel Mount, #6-32 TPI Screw, -40 to 130 deg C, Brass/Steel/Thermoplastic, Black, 9.5 in L x 1.37 in W x 0.75 in H

Specifications

Amperage Rating	30 A
Application	Stationary Machine Equipment in Factory - Robotics
Brand Name	Bussmann
Color	Black
Connection Type	#6-32 TPI Screw
Dimensions	9.5 in L x 1.37 in W x 0.75 in H
Manufacturer Part Number	TB200HB-20
Material	Brass/Steel/Thermoplastic
Mounting Type	Panel
Standards/Approvals	CE Certified\|CSA Certified\|IEC Certified\|RoHS Compliant\|UL Listed
Temperature Rating	-40 to 130 deg C
Torque Rating	9 in-lb
Type	Double Row
Video Links
Voltage Rating	600 V
