Leviton

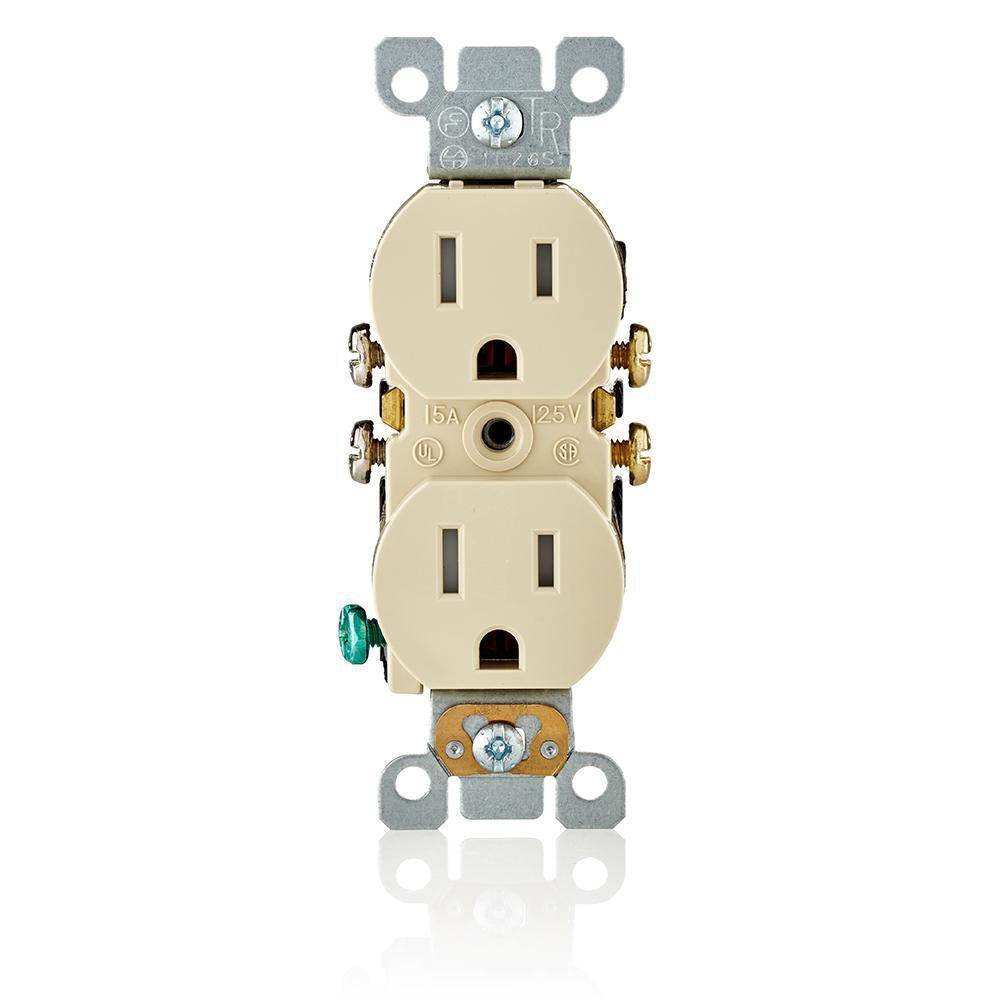

T5320-SI LEVITON 15A-125V TR DUPLEX RCPT 07847742934

Mouse over image to zoom, click to enlarge

Description: Leviton® Straight Blade Receptacle, Duplex Tamper and Weather-Resistant, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential Grade, Quick-Wire® Push-In/Side Wire Terminal, Thermoplastic, Ivory, 1.31 in L x 0.98 in W x 4.2 in H Dimensions

Manufacturer PN: T5320-SI

UPC:  07847742934

Kendall Electric Inc PN: 2776333

Invoice Description:

T5320-SI LEVITON 15A-125V TR DUPLEX RCPT 07847742934


SPEC SHEET

How Can We Make This Page Better?

Leviton® T5320-SI Duplex Tamper and Weather-Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Ivory

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Leviton® duplex receptacles are designed for a chic appearance, quick installation and durability. The impact resistant thermoplastic design allows for a long service life and high performance in homes, offices, schools and other settings.
Leviton® Straight Blade Receptacle, Duplex Tamper and Weather-Resistant, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential Grade, Quick-Wire® Push-In/Side Wire Terminal, Thermoplastic, Ivory, 1.31 in L x 0.98 in W x 4.2 in H Dimensions

Specifications

 Amperage Rating 15 A
 Application New or Renovated Single, Multi-Family Housing, Schools, Libraries and Childcare Facilities Applications
 Brand Name Leviton®
 Color Ivory
 Dimensions 1.31 in L x 0.98 in W x 4.2 in H
 Grade Residential
 Manufacturer Part Number T5320-SI
 Material Thermoplastic
 NEMA Rating NEMA 5-15R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS T5320-SI ; T5320SI
 Standards/Approvals UL Listed|CSA Certified|2008 NEC Compliant|NEMA 5-15R
 Terminal Type Quick-Wire® Push-In/Side Wire
 Type Duplex Tamper and Weather-Resistant
 Video Links
 Voltage Rating 125 V AC

Features

▪ Terminal screws accept up to #12 AWG copper or copper clad wire
▪ Quickwire push-in terminals accept 14 AWG solid copper wire only
▪ Double wipe power contacts for maximum conductivity and plug retention
▪ Heavy gauge, rust resistant steel mounting strap
▪ Shallow design for maximum wiring room in box
▪ Break-OFF plaster ears for best flush alignment
▪ Captive mounting screws
▪ Break-OFF tabs allow easy 2-circuit conversion
