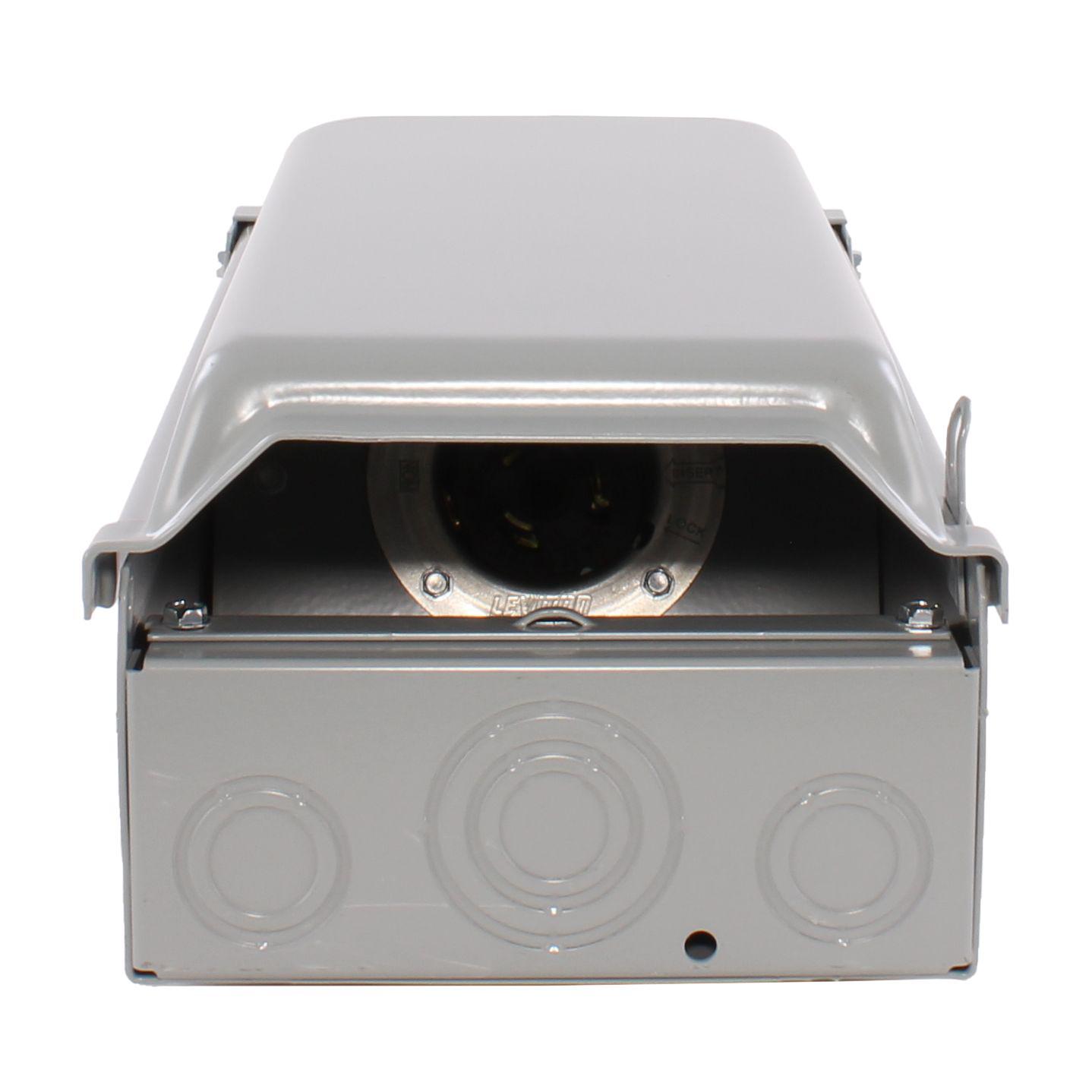

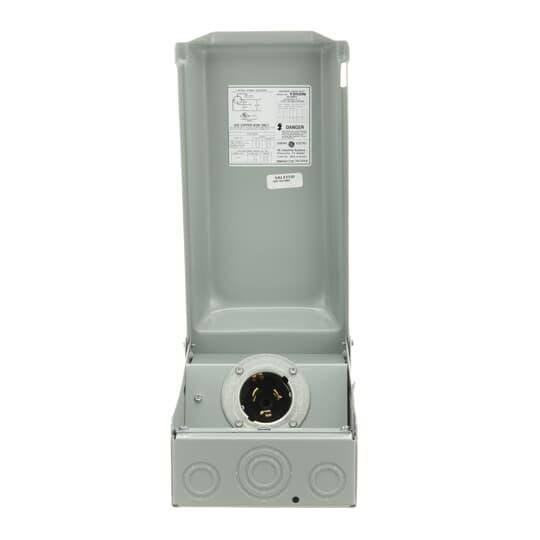

Description: GE Power Inlet, Twist-Lock, 120/240 V AC, 50 A, NEMA 3R NEMA Rating, 6-3/4 in Width, 5-3/16 in Depth, 14-3/8 in Height, Steel, Electro-Deposition Painted/Galvanized

Manufacturer PN: T050N

UPC: 78316425569

Kendall Electric Inc PN: 4088467

Invoice Description:

T050N GE 50 AMP POWER INLET - 3R

SPEC SHEET

How Can We Make This Page Better?

GE T050N Twist-Lock Power Inlet, 120/240 V AC, 50 A, NEMA 3R NEMA Rating, Steel

Note: Lead times are estimates only

Description Specifications Resources

Description

GE Power Inlet, Twist-Lock, 120/240 V AC, 50 A, NEMA 3R NEMA Rating, 6-3/4 in Width, 5-3/16 in Depth, 14-3/8 in Height, Steel, Electro-Deposition Painted/Galvanized

Specifications

Amperage Rating	50 A
Application	Electrical Distribution and Control Applications
Brand Name	GE
Depth	5-3/16 in
Finish	Electro-Deposition Painted/Galvanized
Height	14-3/8 in
Manufacturer Part Number	T050N
Material	Steel
NEMA Rating	NEMA 3R
PART NUMBER KEYWORDS	T050N ; 9428840 ; 783164255690 ; 78316425569 ; 00783164255690
Standards/Approvals	UL Listed
Type	Twist-Lock
Voltage Rating	120/240 V AC
Width	6-3/4 in
