Schneider Electric

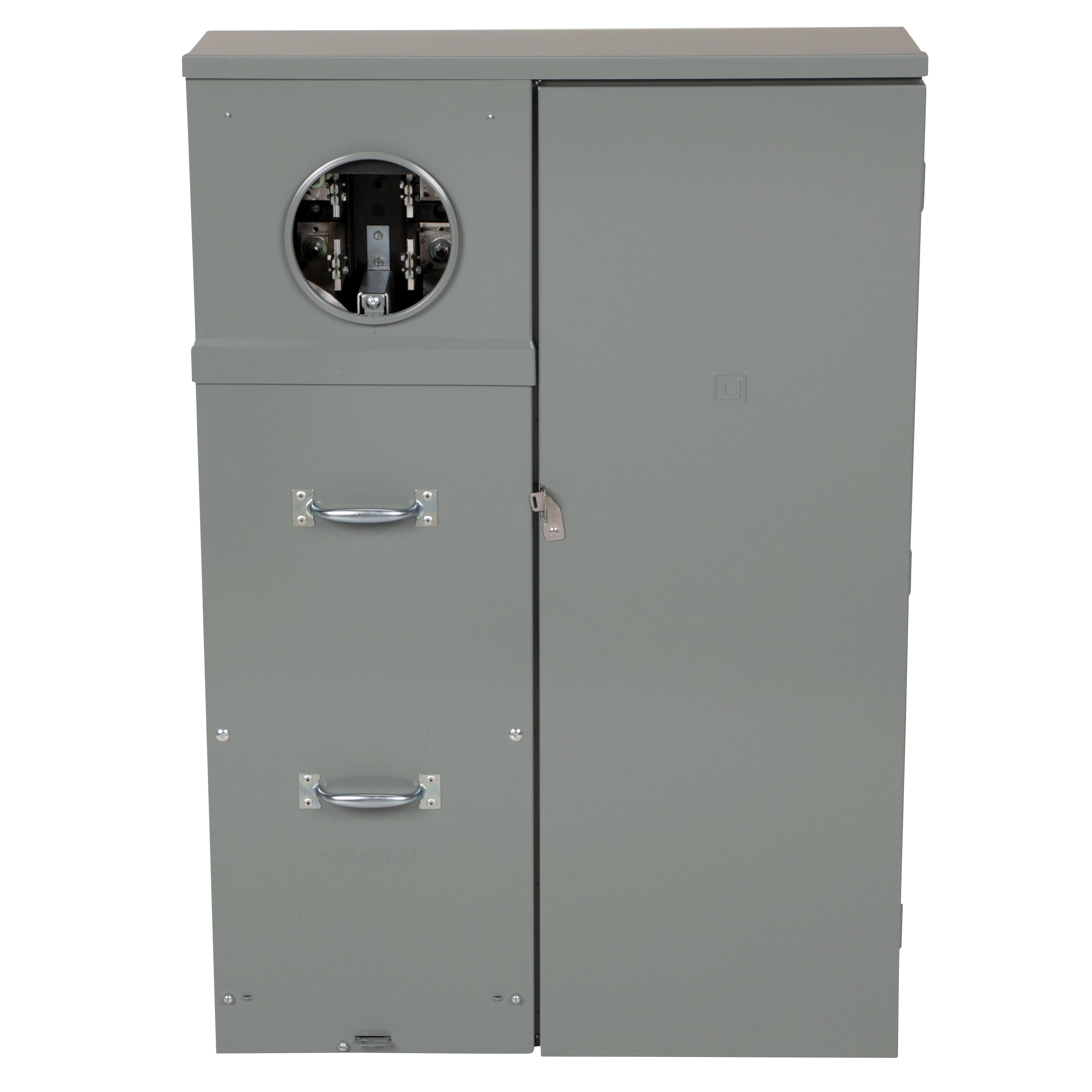

  • SU3040D400CB SQD ALL-IN-ONE RING UG
  • SU3040D400CB SQD ALL-IN-ONE RING UG
  • SU3040D400CB SQD ALL-IN-ONE RING UG

Description: Square D™ HomeLine™ Combination Service Entrance Meter Main, 30-Circuit 40-Space All-In-One Field Installed Rainproof, 400 A, Underground Feed, 4 AWG to 250 kcmil Aluminum/Copper Wire, A-L Hub, Ring Cover, Stud Line/Service Ground Lug Terminal, Flush Mounting, 41-1/4 in H x 28-1/4 in W x 7-1/2 in D Dimensions

Manufacturer PN: SU3040D400CB

UPC:  78590152179

Kendall Electric Inc PN: 4200144

Invoice Description:

SU3040D400CB SQD ALL-IN-ONE RING UG


SPEC SHEET

▸ See All in Meter Socket Meter Main Combinations


How Can We Make This Page Better?

Square D™ HomeLine™ SU3040D400CB 30-Circuit 40-Space All-In-One Field Installed Rainproof Combination Service Entrance Meter Main With Class 320 Test Block Bypass, 400 A

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with a Class 320 Manual bypass. The socket has 4 jaws. This unit can be feed from an underground service. The service disconnect has a QDL22200 with a maximum rating of 200 A. Device has a 25 kA short circuit current rating. Load center has 30 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 41.25 inches tall, 28.25 inches wide and 7.50 inches deep. The line side has two studs. The service ground lug will accept 4 AWG to 250 kcmil copper or aluminum wire. This Homeline All In One combination service entrance unit is UL Listed.
Square D™ HomeLine™ Combination Service Entrance Meter Main, 30-Circuit 40-Space All-In-One Field Installed Rainproof, 400 A, Underground Feed, 4 AWG to 250 kcmil Aluminum/Copper Wire, A-L Hub, Ring Cover, Stud Line/Service Ground Lug Terminal, Flush Mounting, 41-1/4 in H x 28-1/4 in W x 7-1/2 in D Dimensions

Specifications

 Amperage Rating 400 A
 Application Residential Applications
 Brand Name Square D
 Cover Type Ring
 Dimensions 41-1/4 in H x 28-1/4 in W x 7-1/2 in D
 Feed Type Underground
 Hub Type A-L
 Manufacturer Part Number SU3040D400CB
 Mounting Type Flush
 Standards/Approvals UL 50|UL 67|UL 414|UL File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|CSA Approved
 Terminal Type Stud Line/Service Ground Lug
 Type 30-Circuit 40-Space All-In-One Field Installed Rainproof

Features

▪ Compatible with Homeline plug-in mount breakers
▪ This single compact solution provides a time and space saving solution for contractors and installers
▪ Suitable for use as service entrance equipment
▪ CSED allows for the meter socket to integrate with the load center into one compact design
▪ Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation
