Eaton

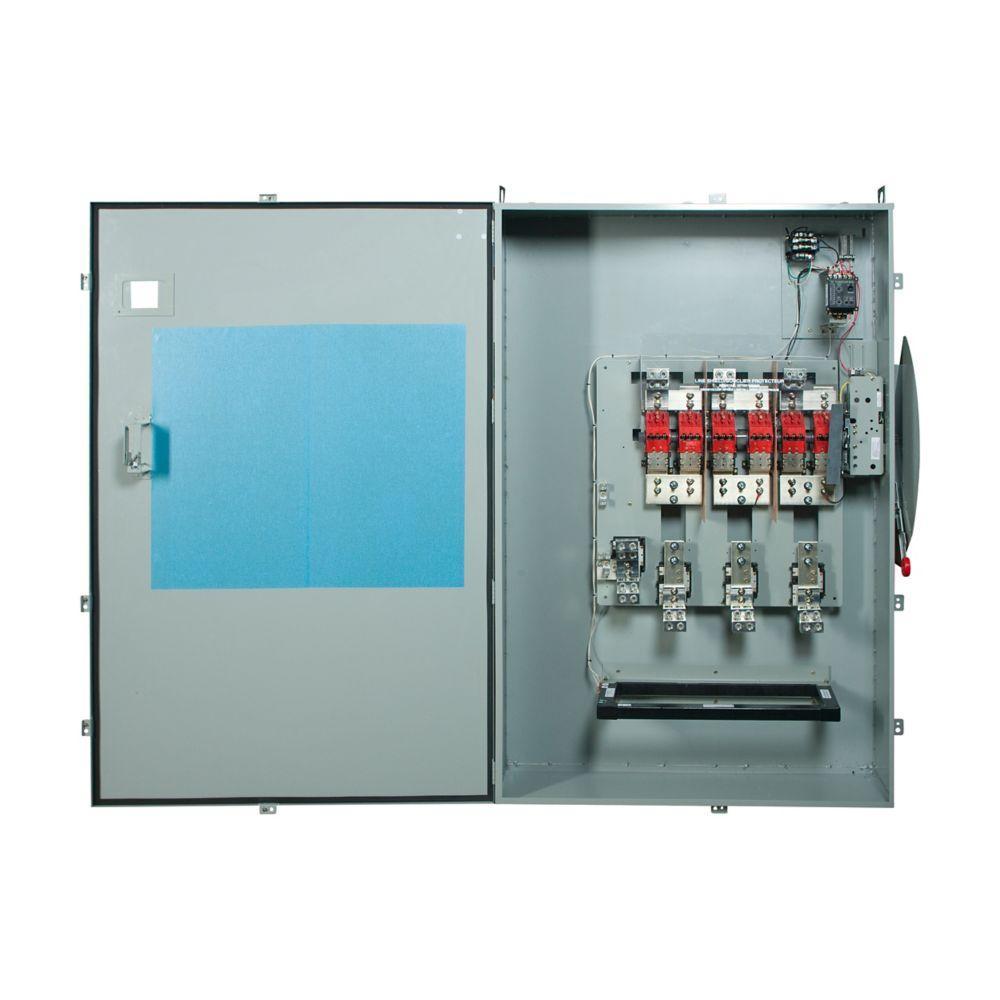

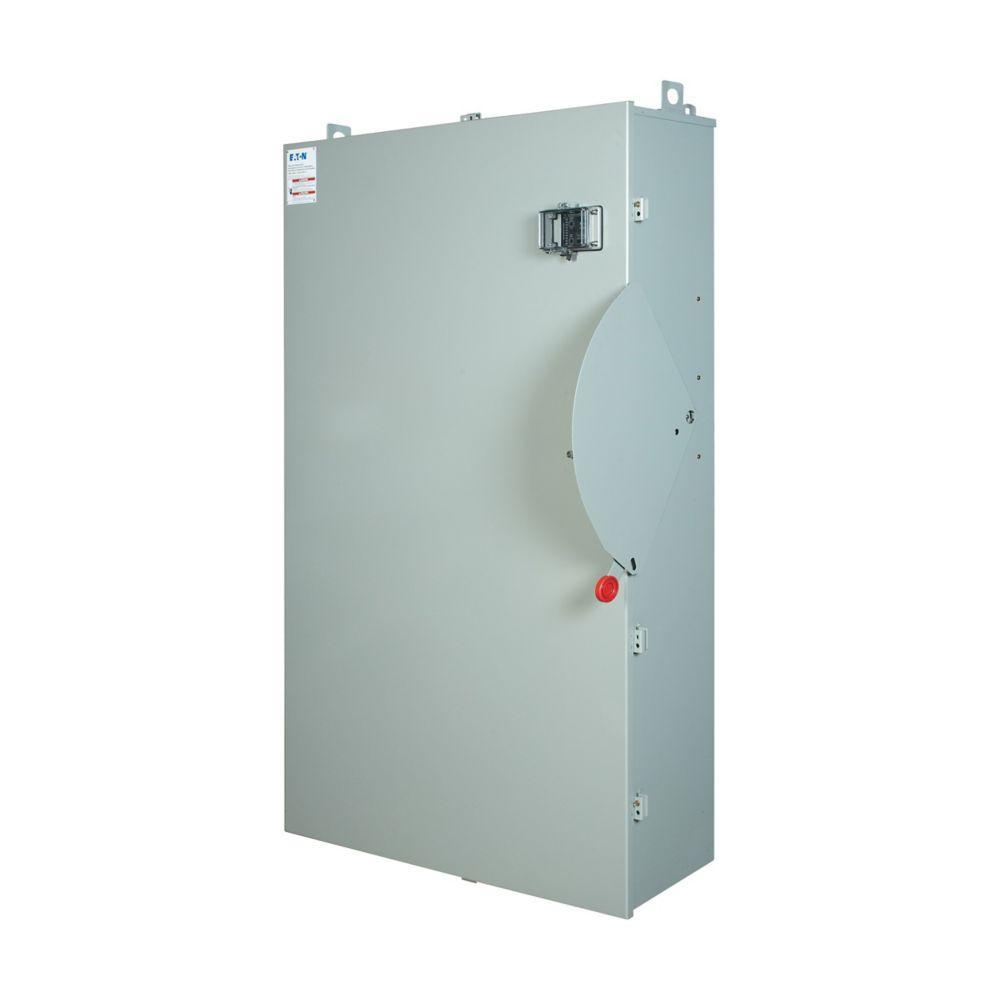

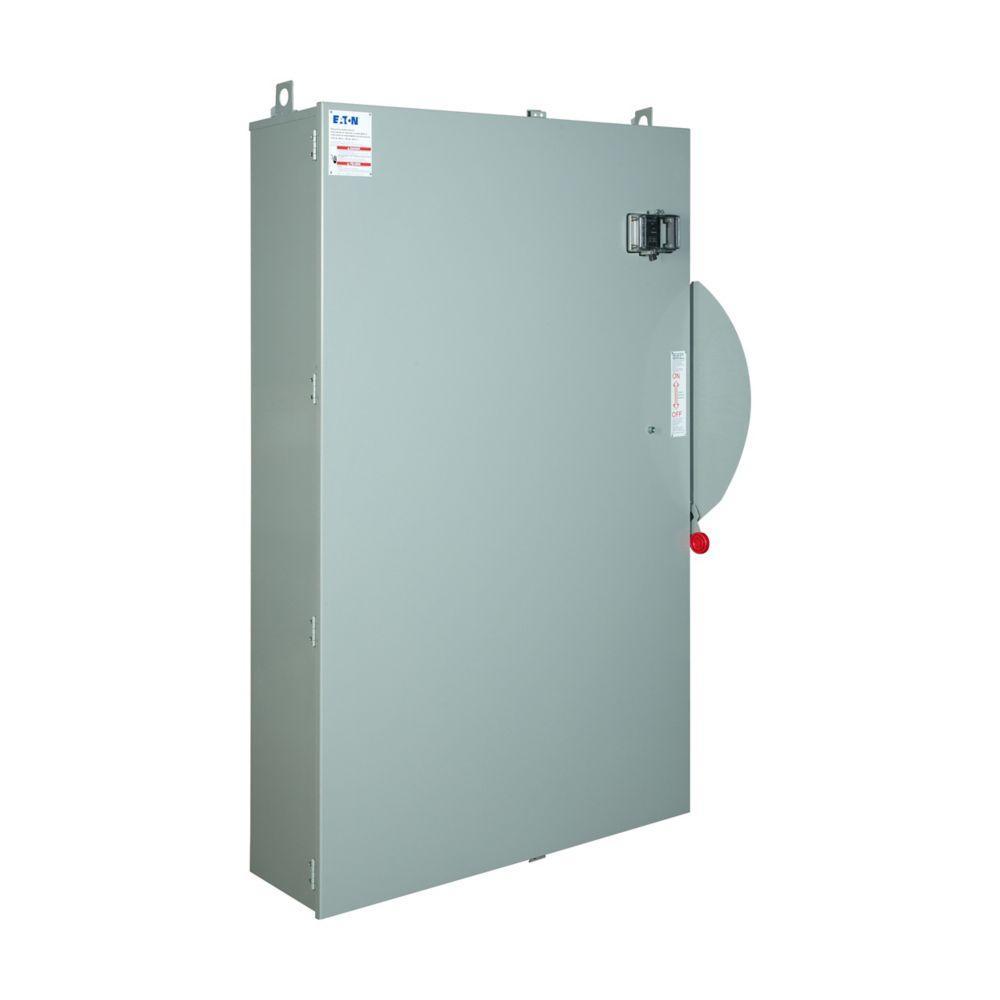

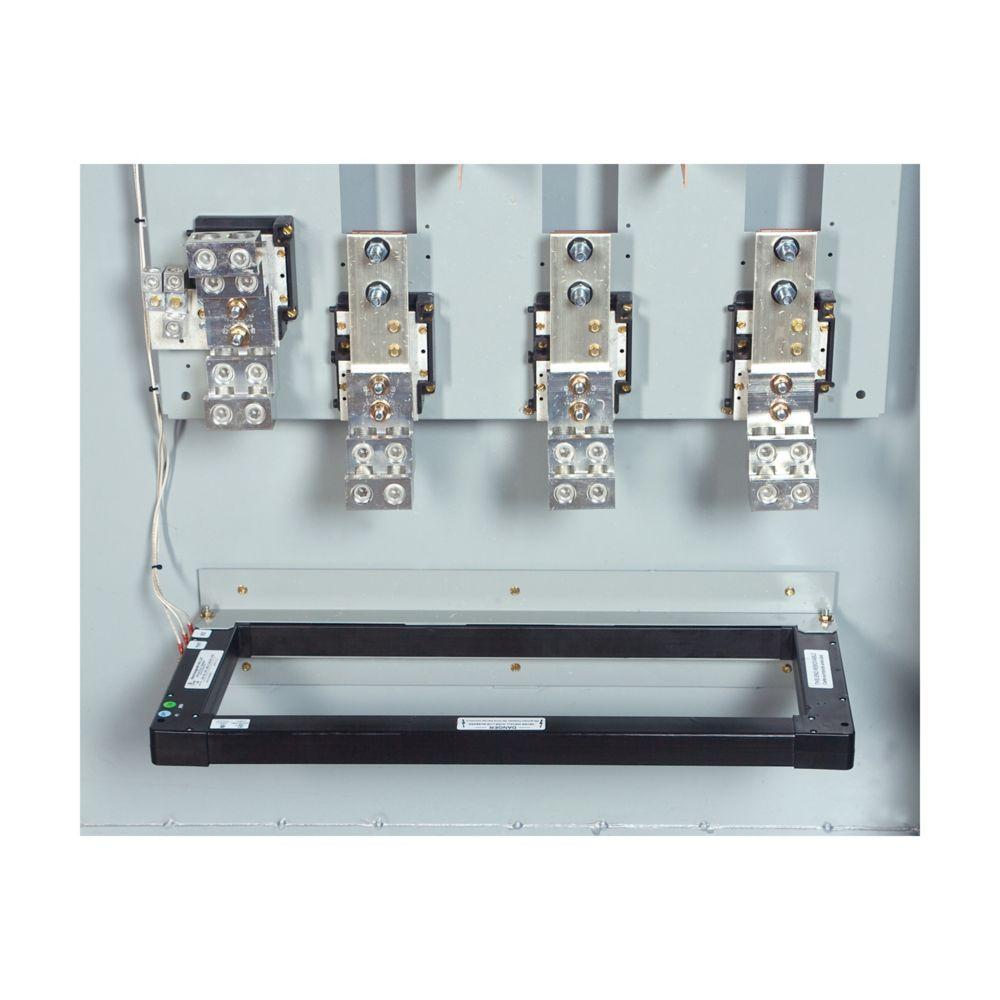

STS368ND32-1B00 CH 1200A STS, 600V, FUSIBLE, 3P W/ NEUT, N12/3R, 120 V COIL

Mouse over image to zoom, click to enlarge

  • STS368ND32-1B00 CH 1200A STS, 600V, FUSIBLE, 3P W/ NEUT, N12/3R, 120 V COIL
  • STS368ND32-1B00 CH 1200A STS, 600V, FUSIBLE, 3P W/ NEUT, N12/3R, 120 V COIL
  • STS368ND32-1B00 CH 1200A STS, 600V, FUSIBLE, 3P W/ NEUT, N12/3R, 120 V COIL
  • STS368ND32-1B00 CH 1200A STS, 600V, FUSIBLE, 3P W/ NEUT, N12/3R, 120 V COIL
  • STS368ND32-1B00 CH 1200A STS, 600V, FUSIBLE, 3P W/ NEUT, N12/3R, 120 V COIL

Description: EATON, sts368nd32-1b00, Safety Switch, Trip, 600 VAC, 250 VDC, 1200 A, 3 Pole, NEMA 3R/12 Enclosure

Manufacturer PN: STS368ND32-1B00

UPC:  78668931428

Kendall Electric Inc PN: 4577648

Invoice Description:

STS368ND32-1B00 CH 1200A STS, 600V, FUSIBLE, 3P W/ NEUT, N12/3R, 120 V COIL


SPEC SHEET

▸ See All in Safety Isolation Systems


How Can We Make This Page Better?

EATON sts368nd32-1b00 Trip Safety Switch, 600 VAC, 250 VDC, 1200 A, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's shunt trip safety switches, a market exclusive, provide remote switching and visible means of disconnect for commercial and industrial applications. In addition, the shunt trip technology enhances safety by providing a means to open a safety switch electronically. This product line provides additional code compliant solutions with optional protection schemes including arc energy reduction (NEC 240.67) and ground fault (including 480 VAC and 1200 A service entrance applications).
EATON, sts368nd32-1b00, Safety Switch, Trip, 600 VAC, 250 VDC, 1200 A, 3 Pole, NEMA 3R/12 Enclosure

Specifications

 Amperage Rating 1200 A
 Application For Commercial/Institutional Buildings/Structures - Safety and Security Systems, Commercial,Institutional Buildings and Structures - Power Distribution and Controls, Industrial Facilities & Factories - Facility: Power Distribution and Control
 Brand Name EATON
 Enclosure NEMA 3R/12
 Includes 1NO/NC Aux Con, 480V CPT and GF Relay and Sensors
 Manufacturer Part Number sts368nd32-1b00
 Number of Poles 3
 Standards/Approvals UL Listed,cUL Certified
 Type Trip
 Video Links
 Voltage Rating 600 V AC/250 V DC

Features

▪ Standard heavy-duty safety switch design with integrated shunt trip module
▪ Integral arc energy reduction system available (NEC 240.67)
▪ Integral ground fault protection available for 480 VAC service entrance applications (NEC 230.95)
▪ Works with emergency stop pushbuttons and other remote signaling means to quickly disconnect power from equipment
▪ Provides a safety switch solution for oil and gas, industrial plants, utilities, commercial construction and water and wastewater treatment applications
▪ Includes two-, three- and four-pole configurations for maximum system voltages of 600 VAC with fusible and non-fusible protection options
▪ Provides a variety of coil voltages, visible means of disconnect, and a standard heavy duty safety switch with integrated shunt trip module
▪ Passes Class 1 ground fault testing (1200% opening)

Resources

 Catalog Page
 Product Data Sheet
