Acuity Brands
STL4-48L-EZ1-LP840 LITHONIA FIXTURE

Mouse over image to zoom, click to enlarge

  • STL4-48L-EZ1-LP840 LITHONIA FIXTURE
  • STL4-48L-EZ1-LP840 LITHONIA FIXTURE
  • STL4-48L-EZ1-LP840 LITHONIA FIXTURE

Description: Lithonia Lighting® Indoor Wraparound Fixture, Rectangular Volumetric, Series: STL4, 120 to 277 V AC, 45 W Lamp, 60000 hr Average Life, 4000 K Color Temperature, 80+ CRI, EldoLED Dimming Driver Ballast, Acrylic Lens, 4800 Lumens, Insulated Insulation, Ceiling/Surface Mounting, Steel Housing Material, Gloss White Housing Finish, 4 ft L x 10-1/8 in W x 3-7/8 in H Dimensions

Manufacturer PN: STL448LEZ1LP840

UPC:  88879177456

Kendall Electric Inc PN: 3427697

Invoice Description:

STL4-48L-EZ1-LP840 LITHONIA FIXTURE

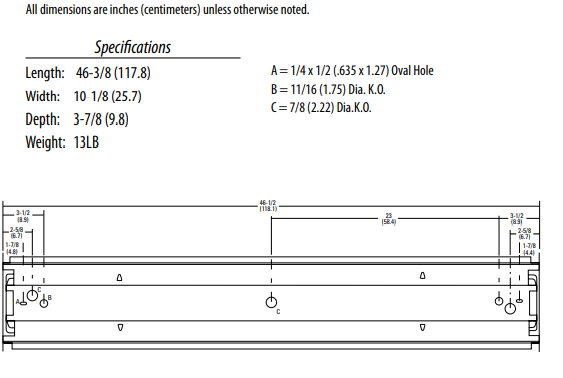

SPEC SHEET

▸ See All in Indoor Wraparounds


How Can We Make This Page Better?

Lithonia Lighting® STL4 48L EZ1 LP840 Rectangular Volumetric Indoor Wraparound Fixture, 120 to 277 V AC, Gloss White Housing

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Lithonia Lighting’s 4’ Surface Volumetric Fixture combines digital LED lighting and controls technologies with high-performance optical design to offer the most advanced surface-mount light for general ambient lighting applications. Constructed of code-gauge steel, the fixture also features decorative die-cast end caps that are both attractive and highly durable. Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for up to 50,000 hours.
Lithonia Lighting® Indoor Wraparound Fixture, Rectangular Volumetric, Series: STL4, 120 to 277 V AC, 45 W Lamp, 60000 hr Average Life, 4000 K Color Temperature, 80+ CRI, EldoLED Dimming Driver Ballast, Acrylic Lens, 4800 Lumens, Insulated Insulation, Ceiling/Surface Mounting, Steel Housing Material, Gloss White Housing Finish, 4 ft L x 10-1/8 in W x 3-7/8 in H Dimensions

Specifications

 Application Classroom, Conference Rooms, Education, Hospital, Open Office and Banks, Retail
 Average Life 60000 hr
 Ballast Type EldoLED Dimming Driver
 Brand Name Lithonia Lighting®
 Color Rendering Index CRI 80+
 Color Temperature 4000 K
 Dimensions 4 ft L x 10-1/8 in W x 3-7/8 in H
 Housing Finish Gloss White
 Housing Material Steel
 Lamp Wattage 45 W
 Lumens 4800 Lumens
 Manufacturer Part Number STL4 48L EZ1 LP840
 Mounting Type Ceiling/Surface
 PART NUMBER KEYWORDS STL4 48L EZ1 LP840 ; STL448LEZ1LP840 ; 230LPV ; 13594666 ; 888791774566 ; 88879177456 ; 00888791774566
 Series STL4
 Standards/Approvals NOM, cCSAus Certified|DLC Approved
 Type Rectangular Volumetric
 Voltage Rating 120 to 277 V AC

Features

▪ STL is rated to deliver L90 performance at 60000 hr
▪ 1 - 10 V EldoLED dims to 1% driver options deliver choice of dimming range and choices for control, while assuring flicker-free, low-current inrush, 89% efficiency and low EMI
▪ Lighting FixturesnIndoor LightingnIndoor Wraparounds
▪ Housing is roll formed from code gauge steel
▪ Impact modified linear-faceted refractor with light diffusing film
▪ Refractor attaches to die cast ends by simple hook and pin design with controlled tension provided by sonically welded end plate, providing secure installation and easy maintenance
▪ Decorative die-cast end caps provide added durability
▪ Injection molded plastic light traps prevent light leaks between shielding and end plates and centers diffuser on channel
▪ Volumetric illumination is achieved by creating an optimal mix of light to vertical and horizontal work surfaces, rendering interior space, objects and occupants in a more balanced luminous environment
▪ Light distribution is carefully controlled at high angles, providing just enough luminous flux to create the volumetric effect
▪ Angled mounting surface combined with crescent-shape linear faceted refractor system obscures and integrates individual LED images and uniformly washes fixture surface with light
▪ Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life
