Description: Lutron®, STCL-153M-WH, Dimmer Switch, LED, Series: Sunnata, 120 V, 60 Hz Frequency, 1 Pole, LED/CFL Lamp, Paddle ON/OFF Control, NEMA SSL-7A Enclosure, Wall Mounting, Screw Terminal, 32 to 104 deg F, White, 4.69 in H x 2.94 in W Dimensions

Manufacturer PN: STCL-153M-WH

UPC:  78427681092

Kendall Electric Inc PN: 4535797

Invoice Description:

STCL-153M-WH LUTRON SUNNATA 150W 3WY - WHITE


SPEC SHEET

▸ See All in Dimmer Switches


How Can We Make This Page Better?

Lutron® STCL-153M-WH Sunnata LED Dimmer Switch, 120 V, 1 Poles, White

Log In for Pricing and Availability




Description

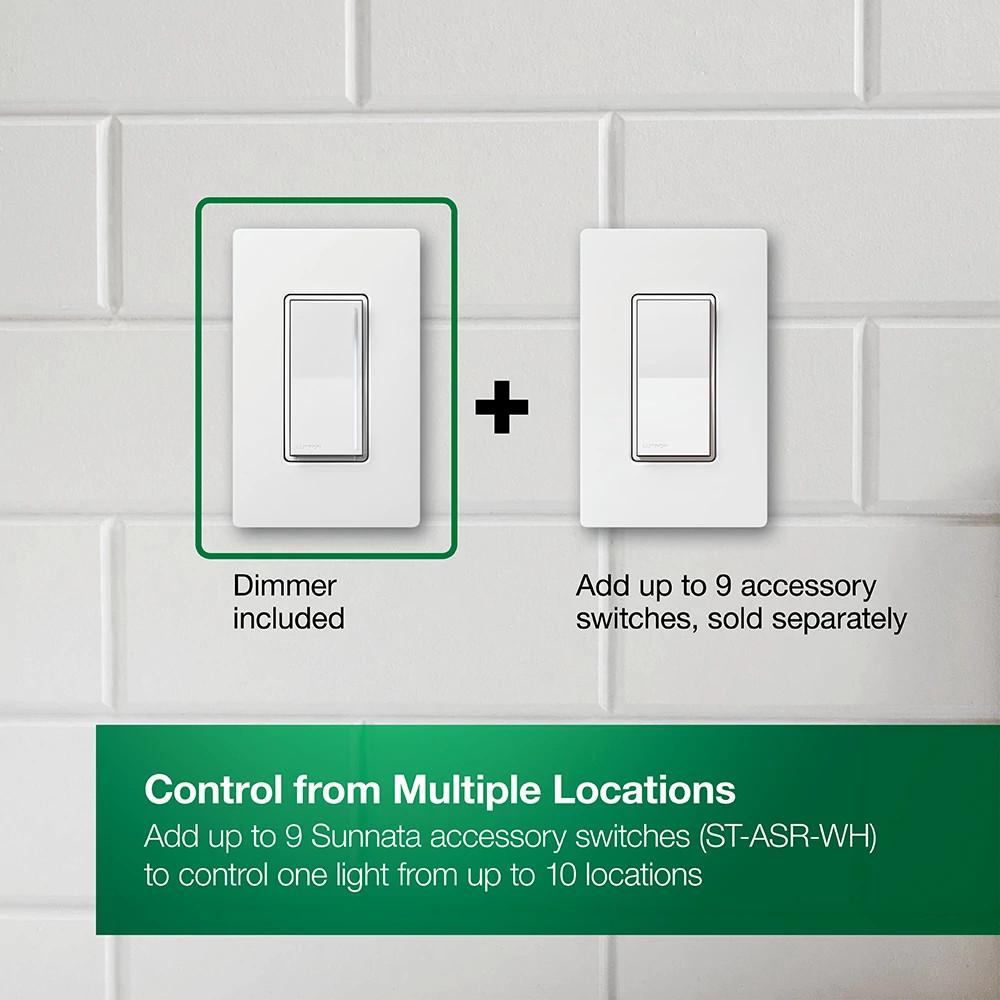

The Sunnata Touch LED+ dimmer switch with LED+ Technology features a large intuitive paddle to turn lights On/Off and a sleek touch bar to easily dim/brighten your lights. This touch dimmer switch is rated to control lighting loads up to 150W LED or 600W incandescent/halogen. Use with the Sunnata accessory switch (ST-AS-xx) to create a 3-way application or add more accessory switches to control from up to 10 locations in a multi-location application. The Sunnata Touch LED+ Dimmer provides dimming, while the Sunnata Accessory Switch (ST-AS-xx) allows for On/Off switching within the multi-location application; can also be used with an existing 3-way switch. Tap the top of the dimmer switch once for your favorite light level, set through MyLevel Personalization, and twice for full brightness; swipe your finger along the white LED lightbar to dim/brighten the lighting load. The smooth fade on and fade off allows your eyes to adjust comfortably to your determined light level; push and hold the Off button for 30 second delayed fade-to-off. No neutral required. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Lutron®, STCL-153M-WH, Dimmer Switch, LED, Series: Sunnata, 120 V, 60 Hz Frequency, 1 Pole, LED/CFL Lamp, Paddle ON/OFF Control, NEMA SSL-7A Enclosure, Wall Mounting, Screw Terminal, 32 to 104 deg F, White, 4.69 in H x 2.94 in W Dimensions

Specifications

 Application For Lighting Control
 Brand Name Lutron®
 Color White
 Control Paddle ON/OFF
 Dimensions 4.69 in H x 2.94 in W
 Enclosure NEMA SSL-7A
 Frequency Rating 60 Hz
 Lamp Type LED/CFL
 Manufacturer Part Number STCL-153M-WH
 Mounting Type Wall
 Number of Poles 1
 Operation Mode On/Off
 PART NUMBER KEYWORDS STCL-153M-WH ; STCL153MWH ; 784276810920 ; 78427681092 ; 00784276810920
 Series Sunnata
 Standards/Approvals UL 1472/CSA C22.2 184.1|NOM|NEMA SSL-7A-2015 forward-phase compliant|FCC
 Temperature Rating 32 to 104 deg F
 Terminal Type Screw
 Type LED
 Video Links
 Voltage Rating 120 V

Features

▪ Works with up to 150W of dimmable LEDs or up to 600 Wof incandescent/halogen bulbs
▪ No Neutral Required

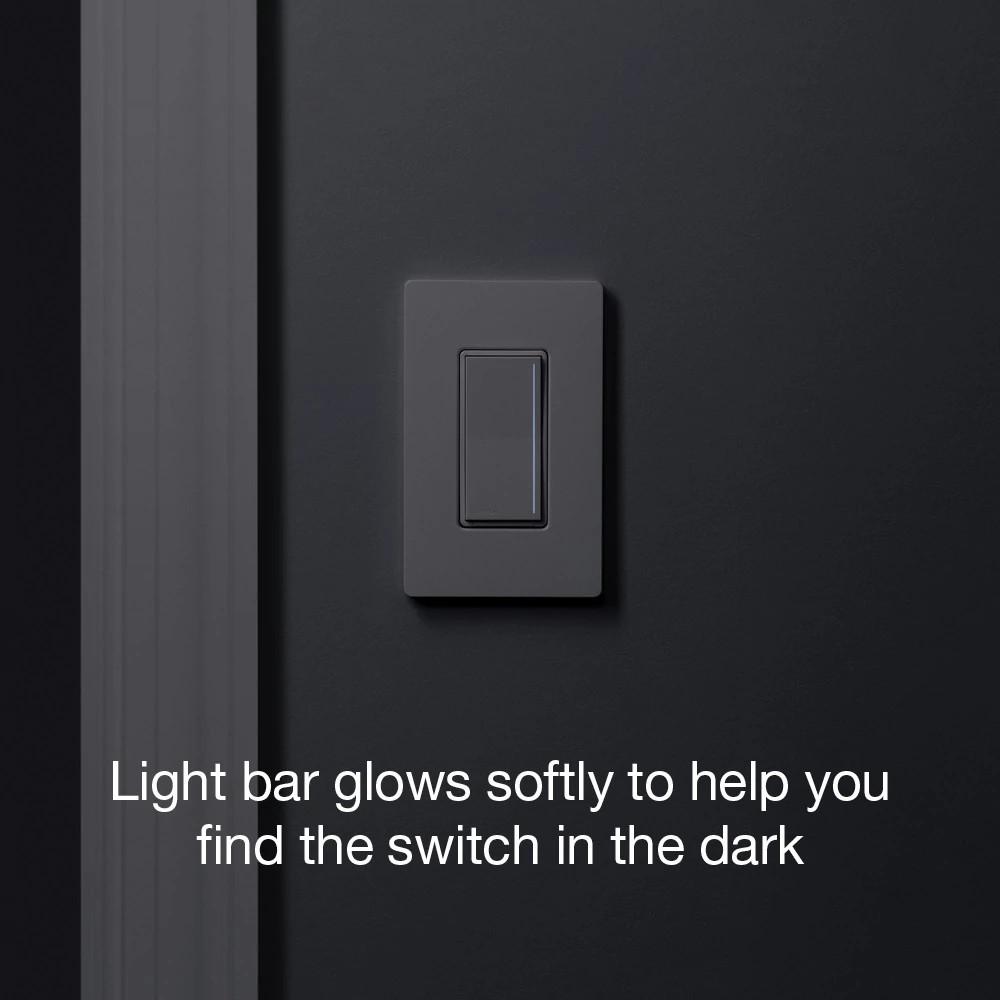

▪ Touch or swipe the white light bar to brighten/dim your lights, lightbar also doubles as a locator light to help find the dimmer switch in the dark
▪ Press and hold Off button for 30 seconds for fade-to-off
