Panduit

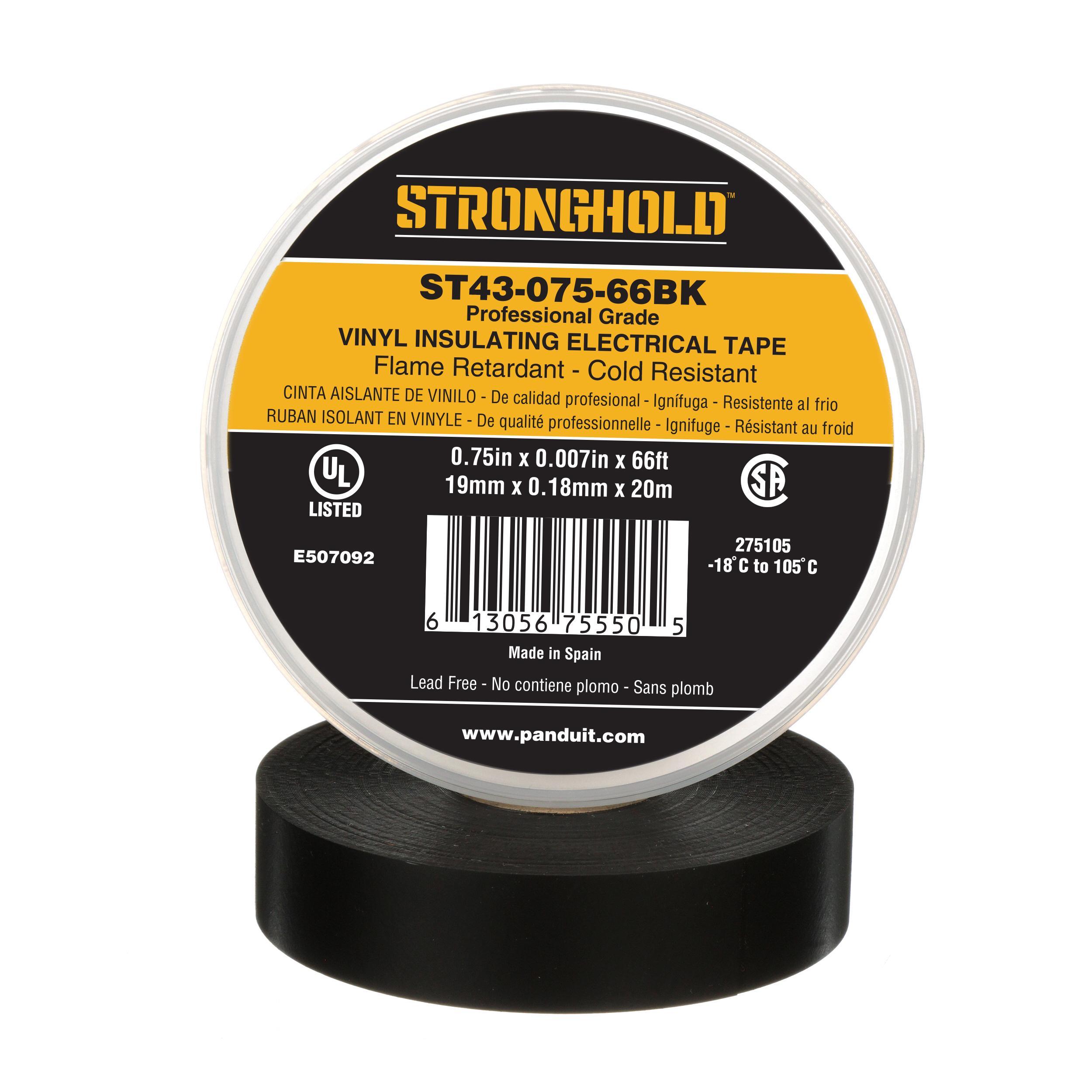

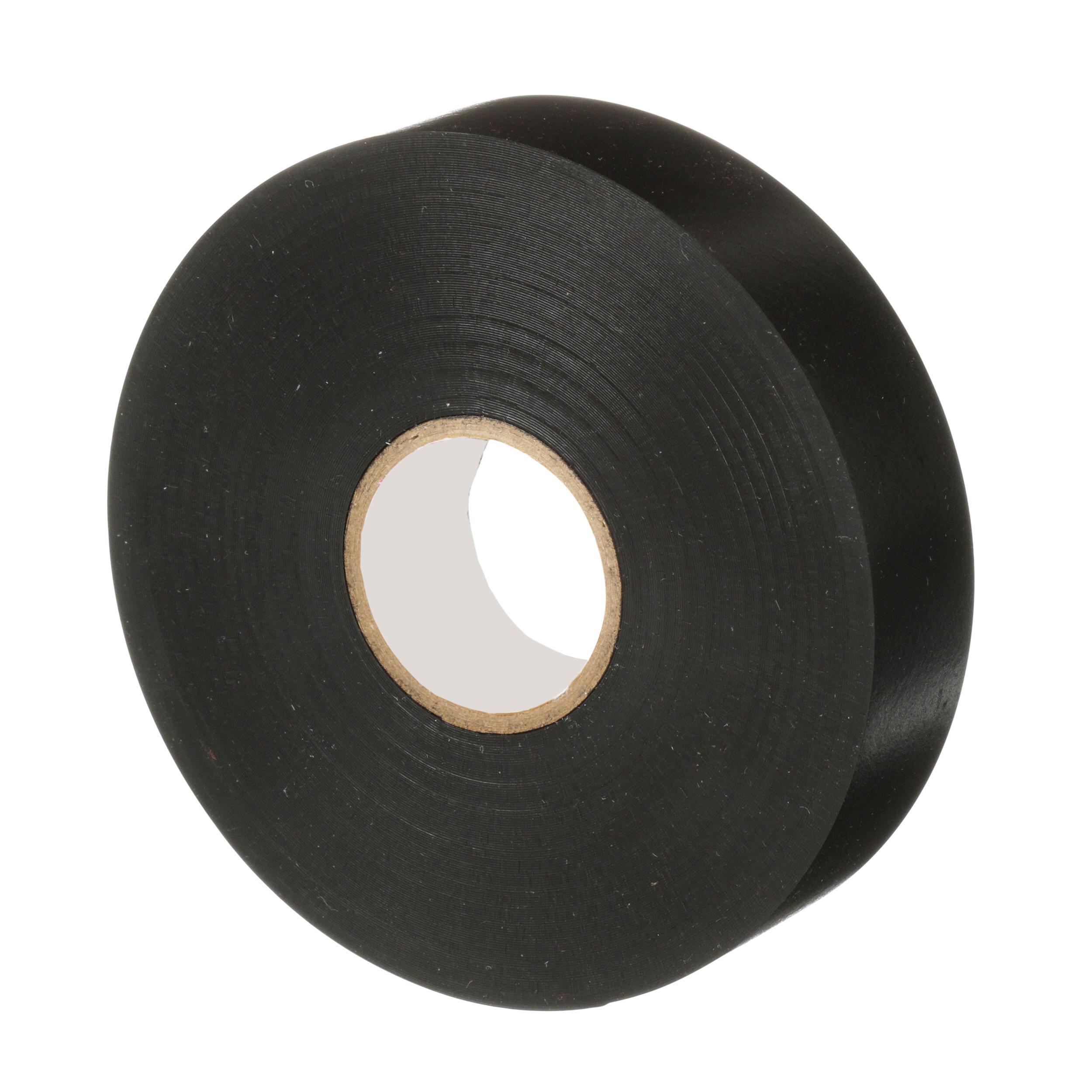

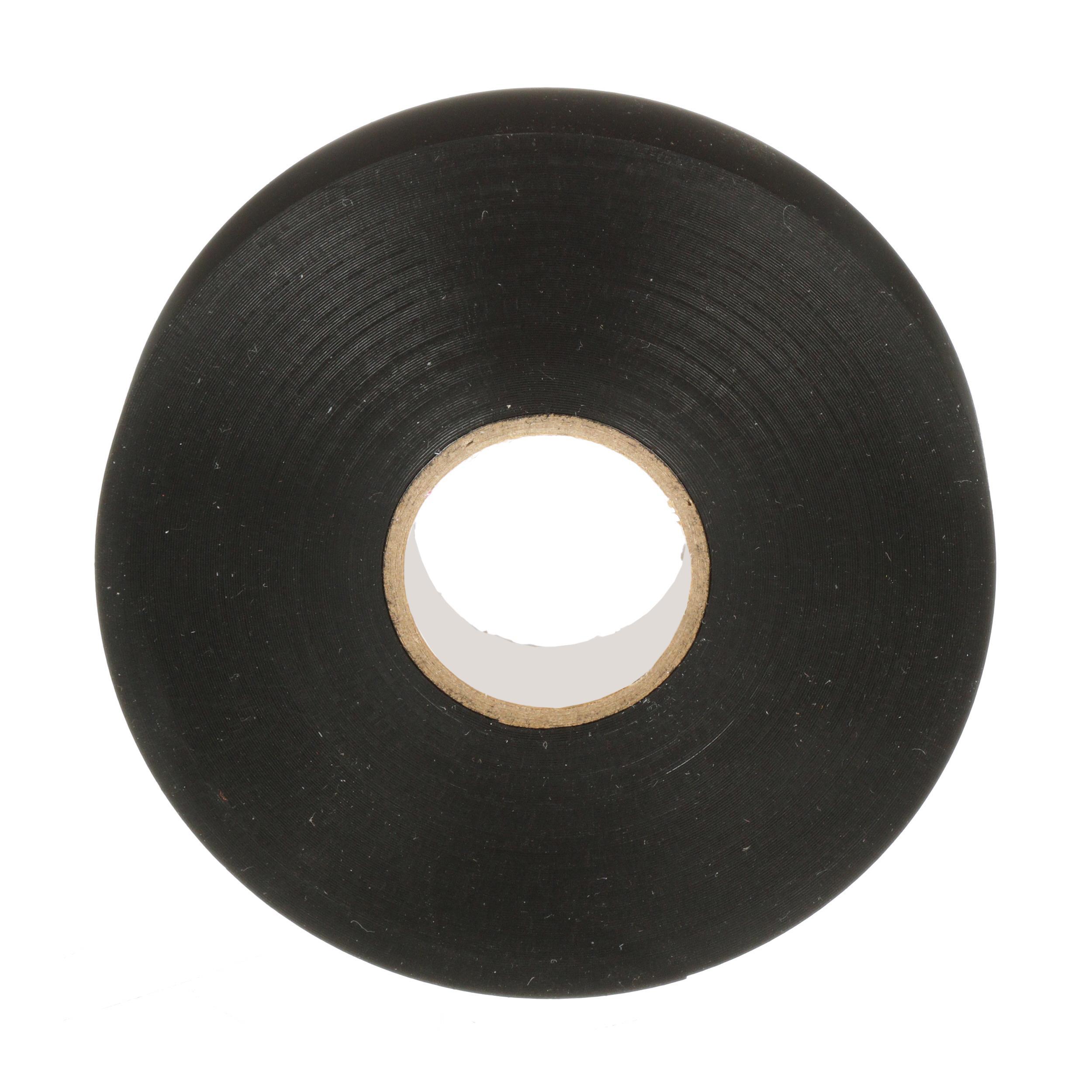

ST43-075-66BK PAN STRONGHOLD ELEC TAPE BLACK PVC PROF GRADE 0.75" 0.007"

Mouse over image to zoom, click to enlarge

  • ST43-075-66BK PAN STRONGHOLD ELEC TAPE BLACK PVC PROF GRADE 0.75" 0.007"
  • ST43-075-66BK PAN STRONGHOLD ELEC TAPE BLACK PVC PROF GRADE 0.75" 0.007"
  • ST43-075-66BK PAN STRONGHOLD ELEC TAPE BLACK PVC PROF GRADE 0.75" 0.007"
  • ST43-075-66BK PAN STRONGHOLD ELEC TAPE BLACK PVC PROF GRADE 0.75" 0.007"

Description: Panduit® StrongHold™ Electrical Tape, Professional Grade, 66 ft Length, 3/4 in Width, 0.007 in Thickness, Material Type: PVC, Black, Pressure Sensitive Vinyl Adhesive, Rubber Backing, 2.2 N-cm Steel/2.2 N-cm Backing Adhesion, 600 V, 8 kV Dielectric, 30 N-cm Tensile, 221 deg F Maximum Operating, 0 deg F Minimum Operating, Specifications Met: ASTM D-3005, CSA C 22.2 No 197, Meets 2000/53/EC, Type 1, EN 60454-3-1, Type 11, UL 510

Manufacturer PN: ST43-075-66BK

UPC:  61305675550

Kendall Electric Inc PN: 4100607

Invoice Description:

ST43-075-66BK PAN STRONGHOLD ELEC TAPE BLACK PVC PROF GRADE 0.75" 0.007"


How Can We Make This Page Better?

Panduit® StrongHold™ ST43-075-66BK Professional Grade Electrical Tape, 66 ft L x 3/4 in W, 0.007 in THK, PVC, Pressure Sensitive Vinyl Adhesive, Rubber Backing, Black

Log In for Pricing and Availability




Description

StrongHold™ ST43-075-66BK Professional Grade PVC Electrical Tape is a pressure sensitive vinyl electrical tape that applies easily and provides a high level of performance over a range of temperatures. It has excellent elasticity and insulating properties and it is 3/4 in x 66 ft x 0.007 in size. It is black in color and comes in an individual plastic puck. Suitable as primary insulation when used for splicing up 600 V or 80 deg C (176 deg F) and can be used as protective jacketing.
Panduit® StrongHold™ Electrical Tape, Professional Grade, 66 ft Length, 3/4 in Width, 0.007 in Thickness, Material Type: PVC, Black, Pressure Sensitive Vinyl Adhesive, Rubber Backing, 2.2 N-cm Steel/2.2 N-cm Backing Adhesion, 600 V, 8 kV Dielectric, 30 N-cm Tensile, 221 deg F Maximum Operating, 0 deg F Minimum Operating, Specifications Met: ASTM D-3005, CSA C 22.2 No 197, Meets 2000/53/EC, Type 1, EN 60454-3-1, Type 11, UL 510

Specifications

 Adhesion Strength 2.2 N-cm Steel/2.2 N-cm Backing
 Adhesive Material Pressure Sensitive Vinyl
 Application Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance, Repair and Indoor/Outdoor Applications
 Backing Material Rubber
 Brand Name Panduit®
 Color Black
 Dielectric Strength 8 kV
 Length 66 ft
 MATERIAL_TYPE PVC
 Manufacturer Part Number ST43-075-66BK
 Maximum Operating Temperature 221 deg F
 Minimum Operating Temperature 0 deg F
 PART NUMBER KEYWORDS ST43-075-66BK ; ST4307566BK ; 14824525 ; 613056755505 ; 61305675550 ; 00613056755505 ; 0613056755505
 Specifications Met ASTM D-3005, CSA C 22.2 No 197, Meets 2000/53/EC, Type 1, EN 60454-3-1, Type 11, UL 510
 Standards/Approvals Meets ASTM D-3005, Type 1; EN 60454-3-1, Type 11; UL 510 CSA C 22.2 No 197; Meets 2000/53/EC and RoHS 2011/65/EU directives
 Type Professional Grade
 Video Links
 Voltage Rating 600 V
 Width 3/4 in
