Specified Technologies
SSWBLU2 SPEC TEC BLUE WRAP STRIP (2WX1/8TX12'L) 73057303711

Mouse over image to zoom, click to enlarge

  • SSWBLU2 SPEC TEC BLUE WRAP STRIP (2WX1/8TX12'L) 73057303711
  • SSWBLU2 SPEC TEC BLUE WRAP STRIP (2WX1/8TX12'L) 73057303711

Description: SpecSeal® Intumescent Wrap Strip, Flexible, Series: SSW, 12 ft Length, 2 in Width, 1/8 in Height, Fire Rating: Up to 4 hr, Specifications Met: ASTM E814, UL 1479, CAN/ULC-S115, UL R14288, Blue, Plastic

Manufacturer PN: SSWBLU2

UPC:  73057303711

Kendall Electric Inc PN: 3587186

Invoice Description:

SSWBLU2 SPEC TEC BLUE WRAP STRIP (2WX1/8TX12'L) 73057303711


SPEC SHEET

▸ See All in Firestop Pillows, Sheets & Wraps


How Can We Make This Page Better?

SpecSeal® SSWBLU2 Flexible Intumescent Wrap Strip, 12 ft L x 2 in W, Up to 4 hr Fire Rating, Plastic, ASTM E814, UL 1479, CAN/ULC-S115, UL R14288

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

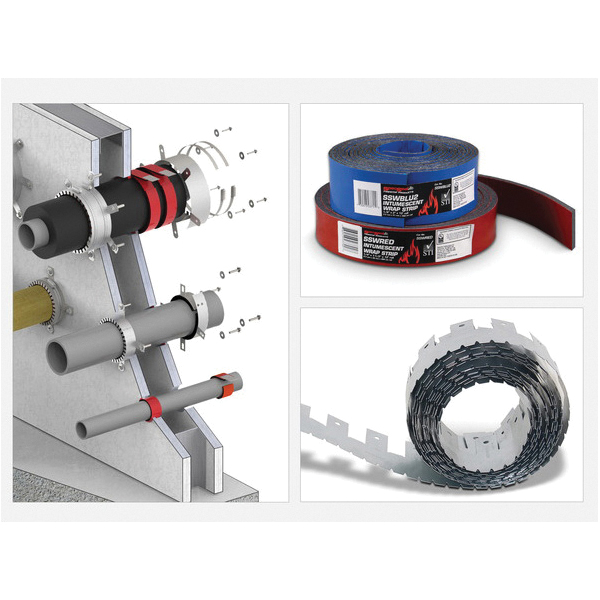

SpecSeal® Wrap Strips are highly flexible, elastomeric strips designed to firestop combustible penetrations in fire rated floors, floor/ceilings and walls. Convenient 12 ft (3.7 m) rolls, or individually sized strips facilitate installation and minimize waste. These products utilize STI fast responding intumescent technology, providing very responsive and highly directionalized expansion. Rapid expansion provides quick closure for burning combustible penetrants. When exposed to temperatures in excess of 250 deg F (121 deg C), the SpecSeal® Wrap Strip begins to expand (intumesce) rapidly to form a dense, highly insulative char. Free expansion varies according to the grade utilized (See Table A). Expansion continues up to temperatures of 1000 deg F (538 deg C).
SpecSeal® Intumescent Wrap Strip, Flexible, Series: SSW, 12 ft Length, 2 in Width, 1/8 in Height, Fire Rating: Up to 4 hr, Specifications Met: ASTM E814, UL 1479, CAN/ULC-S115, UL R14288, Blue, Plastic

Specifications

 Application For fire stopping combustible penetrants such as non-metallic pipes or pipe insulation and plastic piping up to 12 in trade size applications
 Brand Name SpecSeal®
 Color Blue
 Fire Rating Up to 4 hr
 Height 1/8 in
 Length 12 ft
 Manufacturer Part Number SSWBLU2
 Material Plastic
 Series SSW
 Specifications Met ASTM E814, UL 1479, CAN/ULC-S115, UL R14288
 Standards/Approvals ARRA Compliant|Buy American Compliant|cULus Listed|cWHus Listed|FM Approved|RoHS Compliant
 Type Flexible
 Video Links
 Width 2 in

Features

▪ Rapid expansion closes off burning penetrants faster
▪ High volume char significant expansion seals off opening
▪ Water-resistant no soluble or hygroscopic ingredients
▪ Economical 12 ft rolls or precut strips means no piecing, less waste
▪ Highly flexible no foil, easier to install
▪ Versatile performer for a wide range of complex applications
▪ Firestopping medium to large openings containing various penetrating items such as pipes, conduits, cables, insulated metal pipes, bus ducts and HVAC ducts
