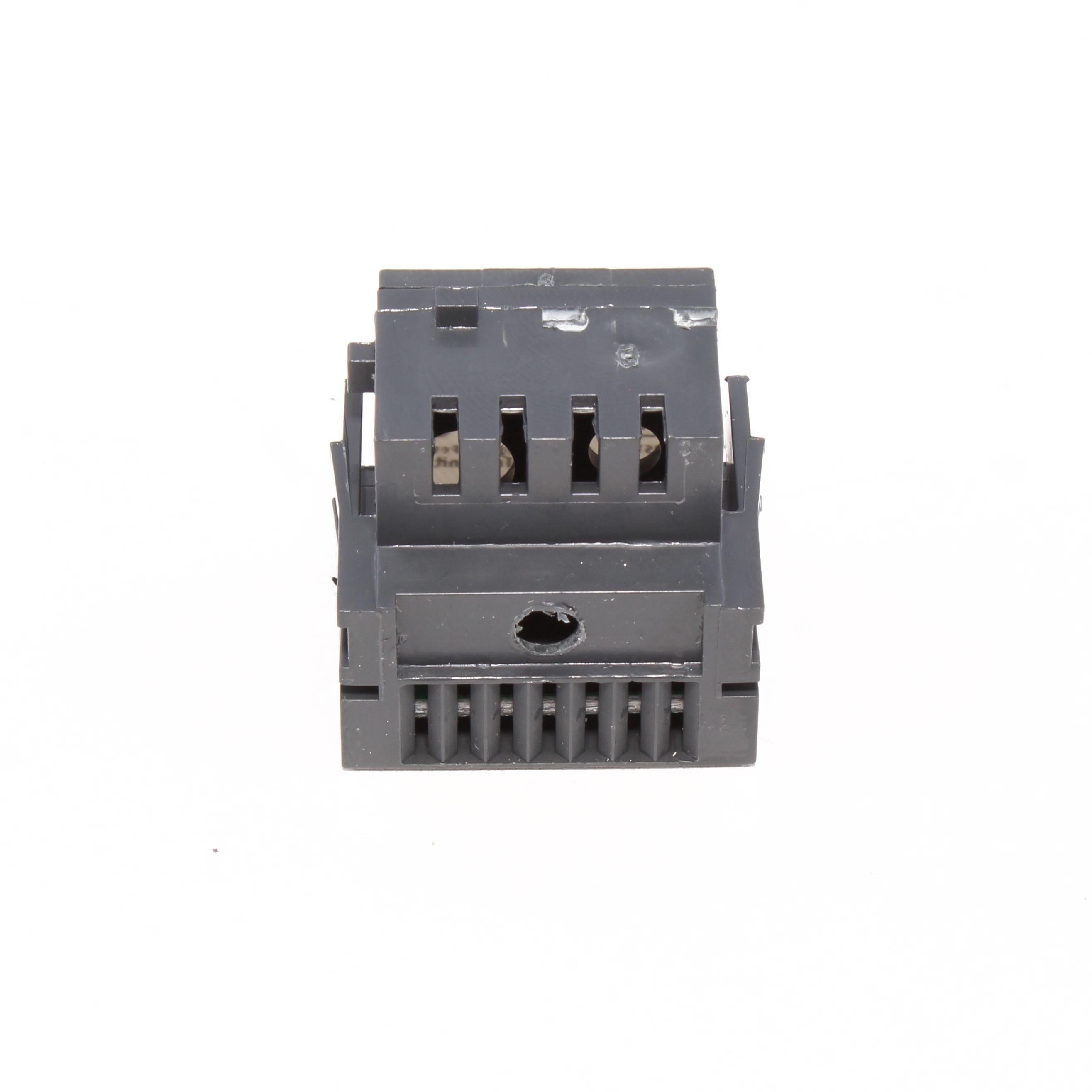

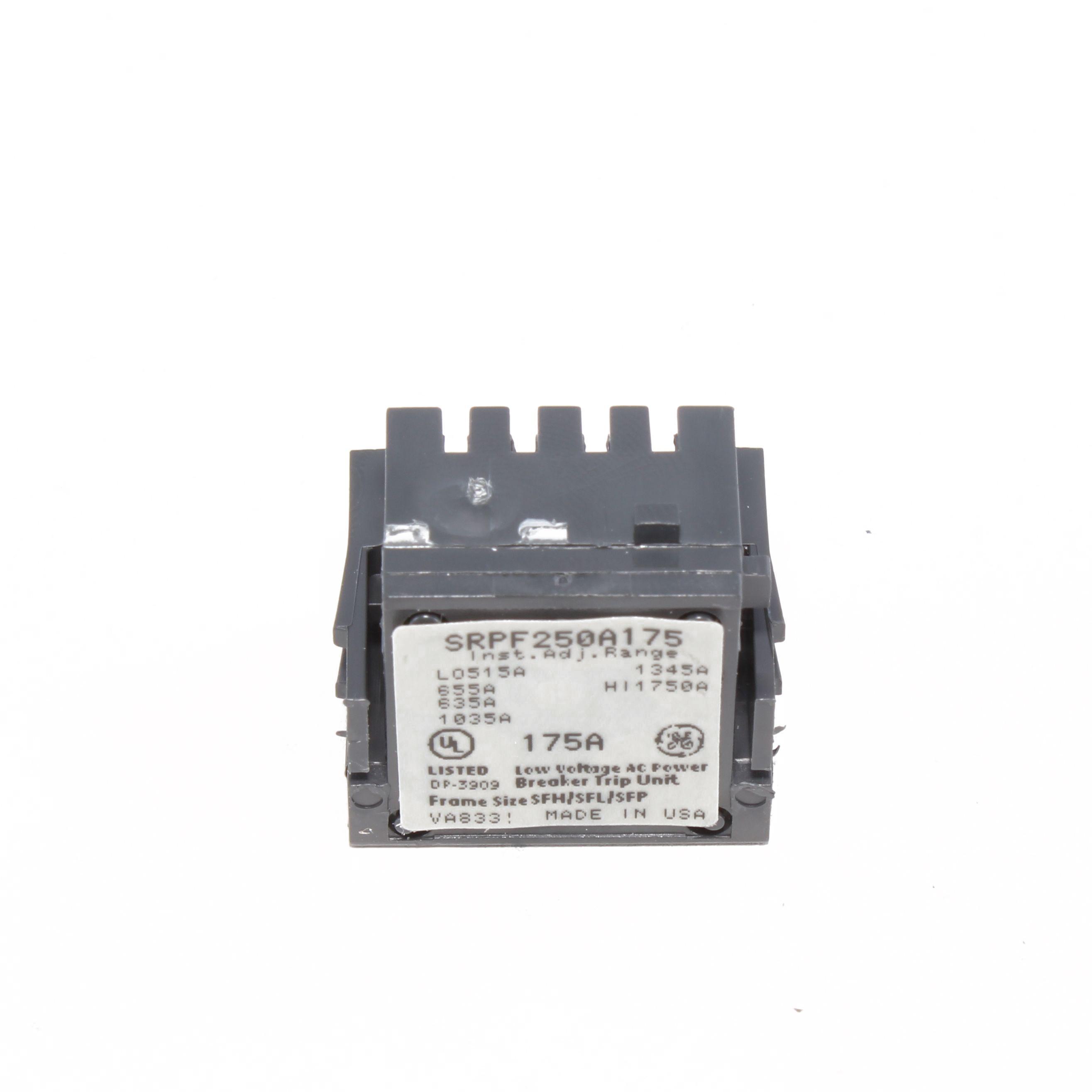

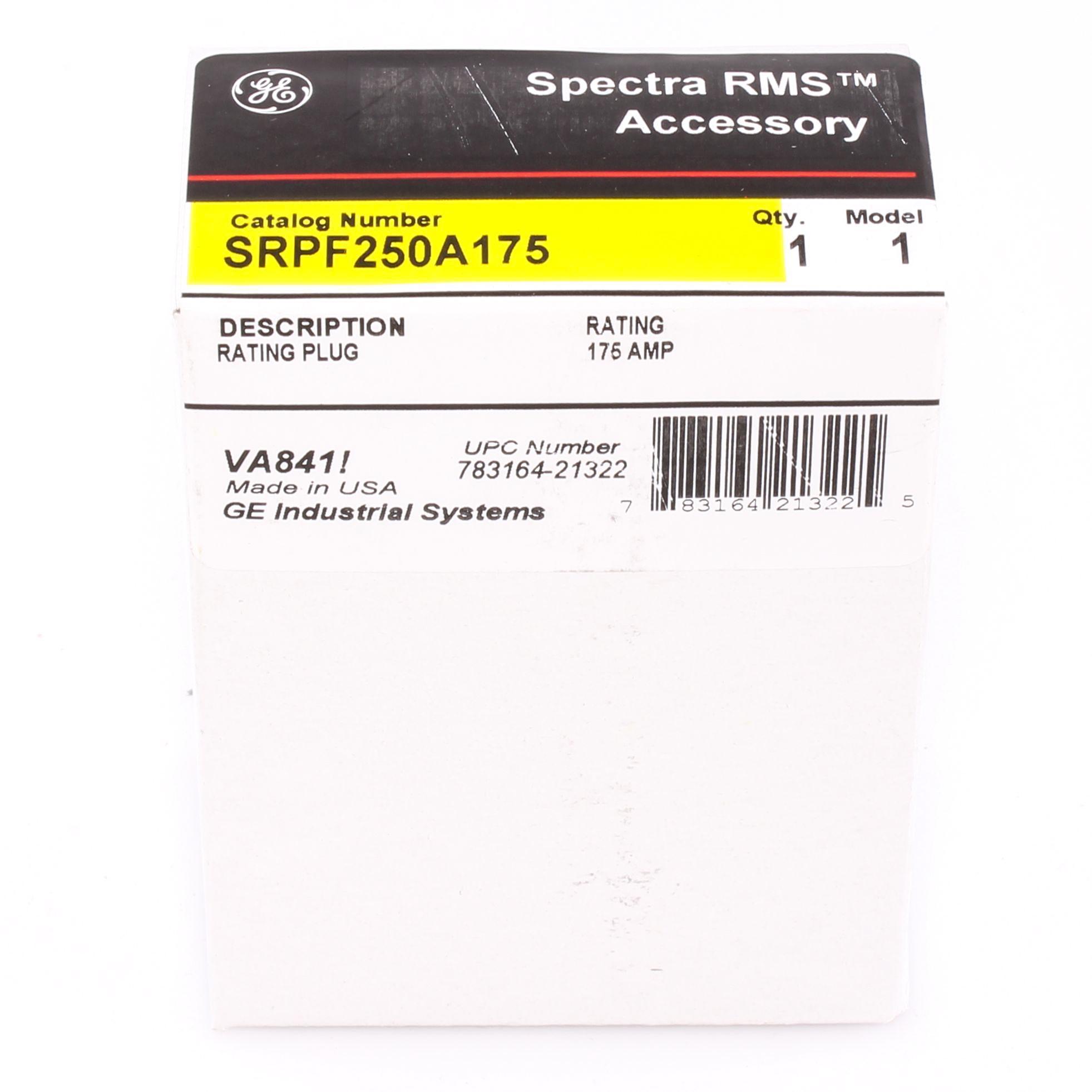

Description: GE Spectra RMS™ Rating Plug, Interchangeable, Series: SR Series, 250 A Maximum Breaker, 175 A Plug Current, SF250 Breaker Frame, For Use With: MicroVersaTrip® Molded Case Circuit Breaker, 4 in L x 3 in W x 1 in H Dimensions

Manufacturer PN: SRPF250A175

UPC:  78316421322

Kendall Electric Inc PN: 2054036

Invoice Description:

SRPF250A175 GE SF250 175A RATING PLUG


SPEC SHEET

▸ See All in Breaker Rating Plugs


How Can We Make This Page Better?

GE Spectra RMS™ SRPF250A175 Interchangeable Rating Plug, 250 A, 175 A Plug Current, SF250 Frame

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

All Spectra™, power Break® and power Break® II circuit breakers use UL listed interchangeable rating plugs to establish or change the long time trip point of the circuit breaker. The key advantage of the rating plug is the flexibility of interchangeable rating plugs across the permissible current ratings of a given circuit breaker frame. Since the installed rating plug establishes the ampere rating of the breaker, the installer must verify the adequacy of the connected cable and busbar ampacity. The national electric code allows cable size to be matched to the ampere rating established by the rating plug.
GE Spectra RMS™ Rating Plug, Interchangeable, Series: SR Series, 250 A Maximum Breaker, 175 A Plug Current, SF250 Breaker Frame, For Use With: MicroVersaTrip® Molded Case Circuit Breaker, 4 in L x 3 in W x 1 in H Dimensions

Specifications

 Application Electrical Distribution and Control Applications
 Brand Name GE
 Breaker Frame Type SF250
 Dimensions 4 in L x 3 in W x 1 in H
 Manufacturer Part Number SRPF250A175
 Maximum Breaker Current Rating 250 A
 PART NUMBER KEYWORDS SRPF250A175 ; 7705741 ; 783164213225 ; 78316421322 ; 00783164213225
 Plug Current Rating 175 A
 Series SR Series
 Standards/Approvals CSA File No. LR40350|IEC 947-2|UL File No. E11592
 Suitable For Use With MicroVersaTrip® Molded Case Circuit Breaker
 Type Interchangeable

Features

▪ 151 to 1750 A adjustable instantaneous trip range
