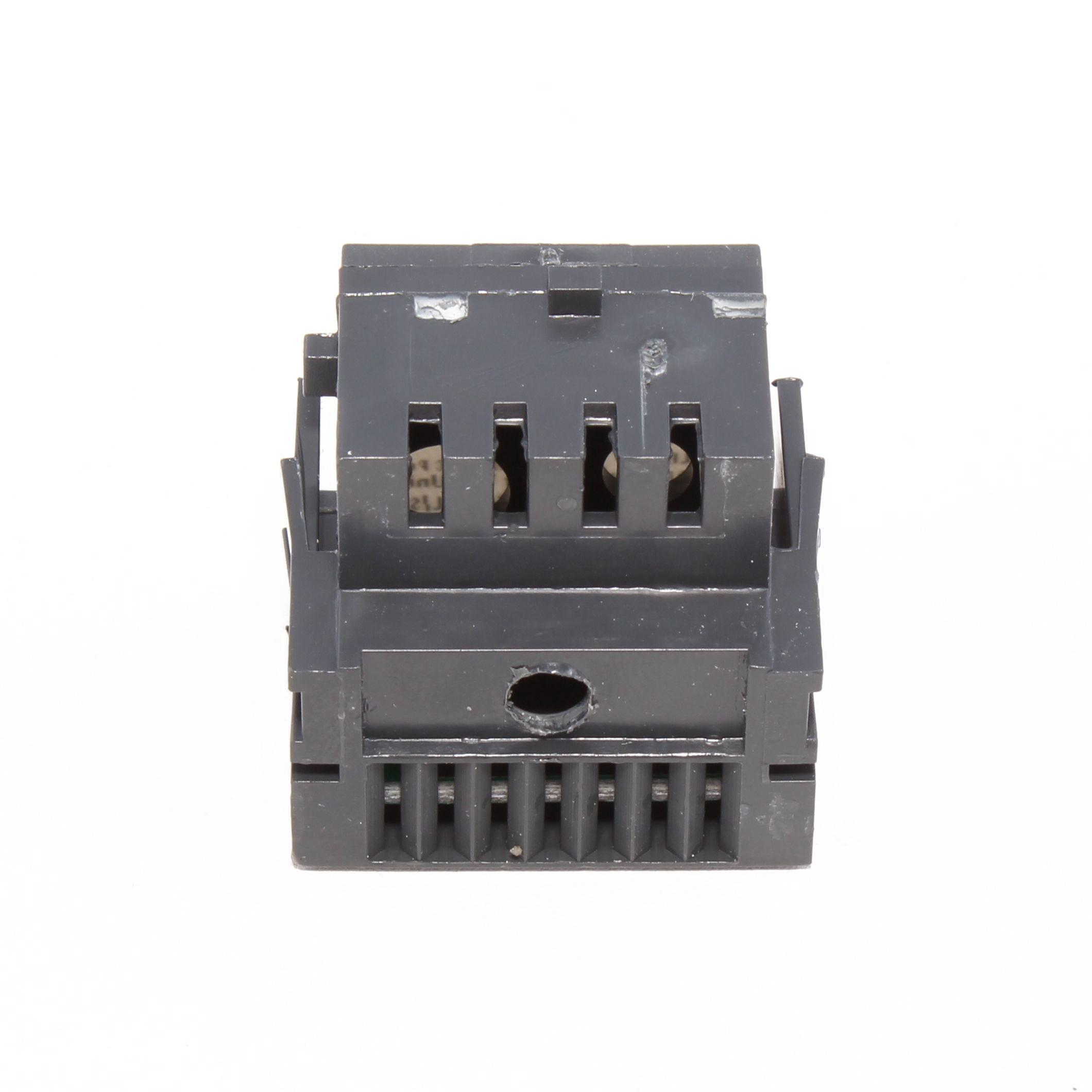

  • SRPE60A50 GE SE150 50A RATING PLUG
  • SRPE60A50 GE SE150 50A RATING PLUG
  • SRPE60A50 GE SE150 50A RATING PLUG
  • SRPE60A50 GE SE150 50A RATING PLUG
  • SRPE60A50 GE SE150 50A RATING PLUG

Description: GE Power Break® II Spectra RMS® Rating Plug, Series: SR Series, 60 A Maximum Breaker Current Rating, 50 A Plug Current Rating, SE150 Breaker Frame Type, For Use With: SE Series Molded Case Circuit Breaker

Manufacturer PN: SRPE60A50

UPC:  78316421307

Kendall Electric Inc PN: 2162430

Invoice Description:

SRPE60A50 GE SE150 50A RATING PLUG


SPEC SHEET

▸ See All in Breaker Rating Plugs


How Can We Make This Page Better?

GE Power Break® II Spectra RMS® SRPE60A50 Rating Plug, 60 A, 50 A Plug Current, SE150 Frame

Log In for Pricing and Availability




Description

All Spectra™, power Break® and power Break® II circuit breakers use UL listed interchangeable rating plugs to establish or change the long time trip point of the circuit breaker. The key advantage of the rating plug is the flexibility of interchangeable rating plugs across the permissible current ratings of a given circuit breaker frame. Since the installed rating plug establishes the ampere rating of the breaker, the installer must verify the adequacy of the connected cable and busbar ampacity. The national electric code allows cable size to be matched to the ampere rating established by the rating plug.
GE Power Break® II Spectra RMS® Rating Plug, Series: SR Series, 60 A Maximum Breaker Current Rating, 50 A Plug Current Rating, SE150 Breaker Frame Type, For Use With: SE Series Molded Case Circuit Breaker

Specifications

 Application Electrical Distribution and Control Applications
 Brand Name GE
 Breaker Frame Type SE150
 Manufacturer Part Number SRPE60A50
 Maximum Breaker Current Rating 60 A
 PART NUMBER KEYWORDS SRPE60A50 ; 7705615 ; 783164213072 ; 78316421307 ; 00783164213072
 Plug Current Rating 50 A
 Series SR Series
 Standards/Approvals CSA File No. LR40350|IEC 947-2|UL File No. E11592
 Suitable For Use With SE Series Molded Case Circuit Breaker

Features

▪ 148 to 637 A adjustable instantaneous trip range
▪ Electronic trip
