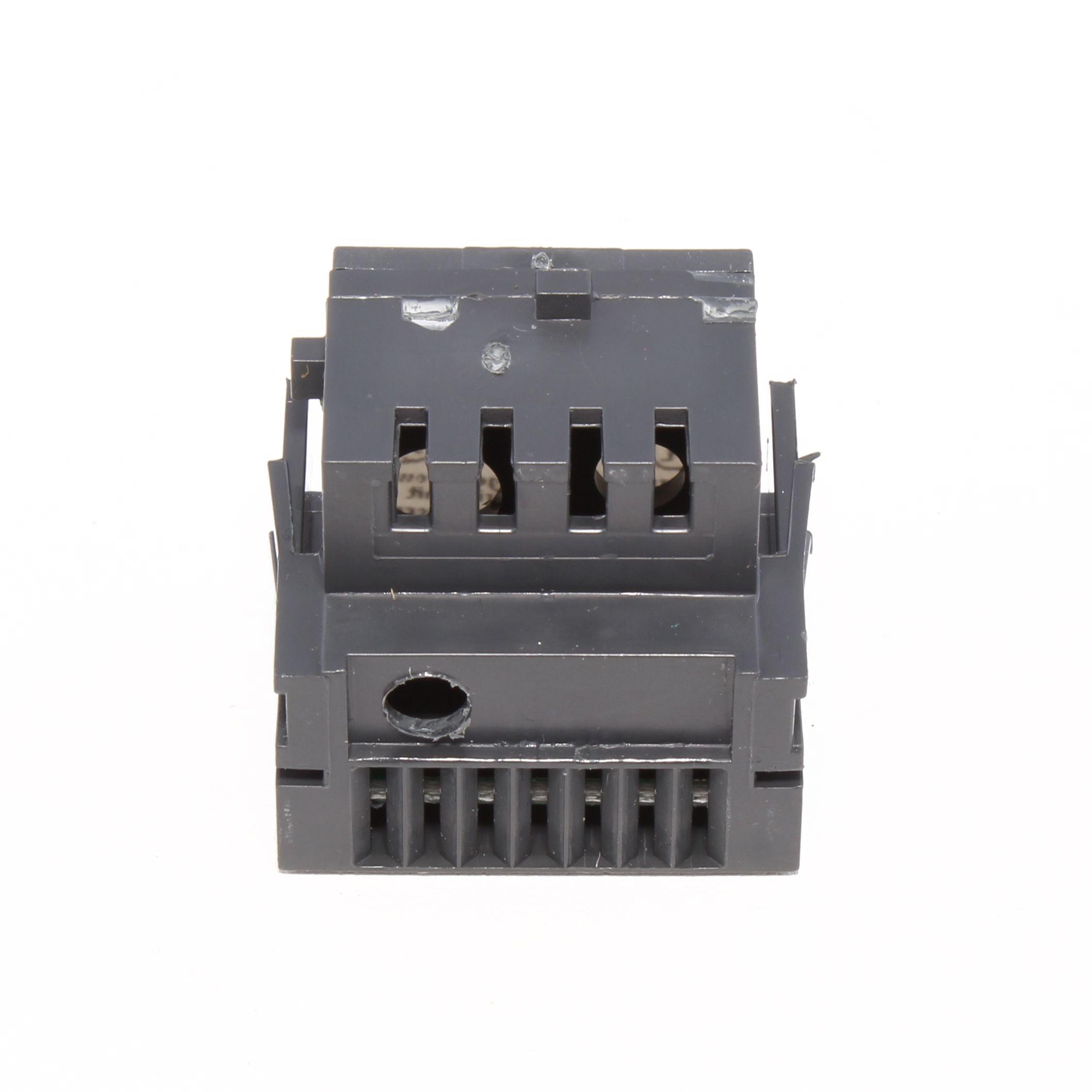

  • SRPE30A15 GE 15A RATING PLUG
  • SRPE30A15 GE 15A RATING PLUG
  • SRPE30A15 GE 15A RATING PLUG
  • SRPE30A15 GE 15A RATING PLUG
  • SRPE30A15 GE 15A RATING PLUG

Description: GE Power Break® II Spectra RMS® Rating Plug, Series: SR Series, 30 A Maximum Breaker Current Rating, 15 A Plug Current Rating, SE150 Breaker Frame Type, For Use With: SE Series Molded Case Circuit Breaker

Manufacturer PN: SRPE30A15

UPC:  78316421380

Kendall Electric Inc PN: 2026738

Invoice Description:

SRPE30A15 GE 15A RATING PLUG


SPEC SHEET

▸ See All in Breaker Rating Plugs


How Can We Make This Page Better?

GE Power Break® II Spectra RMS® SRPE30A15 Rating Plug, 30 A, 15 A Plug Current, SE150 Frame

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

All Spectra™, power Break® and power Break® II circuit breakers use UL listed interchangeable rating plugs to establish or change the long time trip point of the circuit breaker. The key advantage of the rating plug is the flexibility of interchangeable rating plugs across the permissible current ratings of a given circuit breaker frame. Since the installed rating plug establishes the ampere rating of the breaker, the installer must verify the adequacy of the connected cable and busbar ampacity. The national electric code allows cable size to be matched to the ampere rating established by the rating plug.
GE Power Break® II Spectra RMS® Rating Plug, Series: SR Series, 30 A Maximum Breaker Current Rating, 15 A Plug Current Rating, SE150 Breaker Frame Type, For Use With: SE Series Molded Case Circuit Breaker

Specifications

 Application Electrical Distribution and Control Applications
 Brand Name GE
 Breaker Frame Type SE150
 Manufacturer Part Number SRPE30A15
 Maximum Breaker Current Rating 30 A
 PART NUMBER KEYWORDS SRPE30A15 ; 7706187 ; 783164213805 ; 78316421380 ; 00783164213805
 Plug Current Rating 15 A
 Series SR Series
 Standards/Approvals CSA File No. LR40350|IEC 947-2|UL File No. E11592
 Suitable For Use With SE Series Molded Case Circuit Breaker

Features

▪ 43 to 182 A adjustable instantaneous trip range
▪ Electronic trip

Resources

 Catalog Page
 Product Data Sheet
