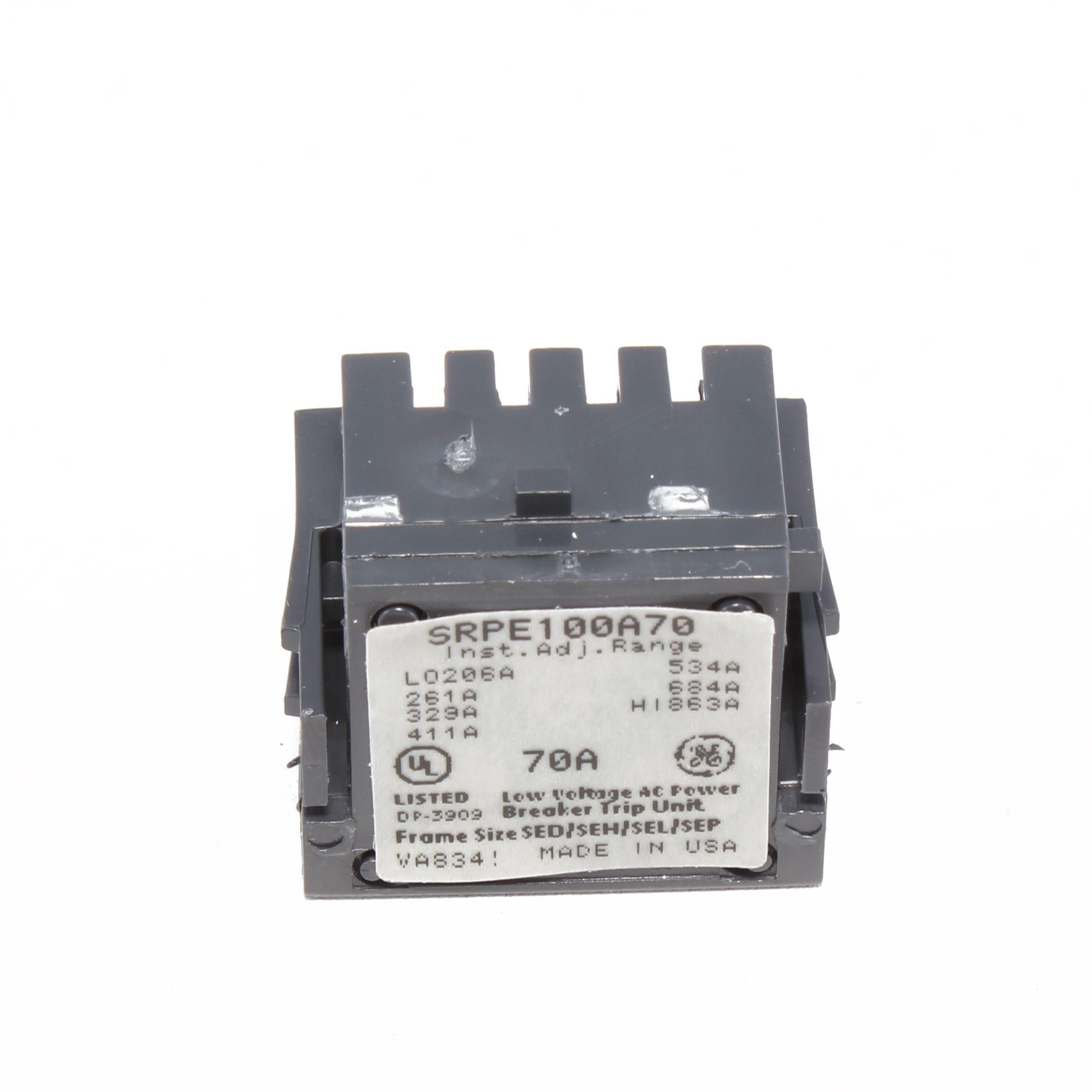

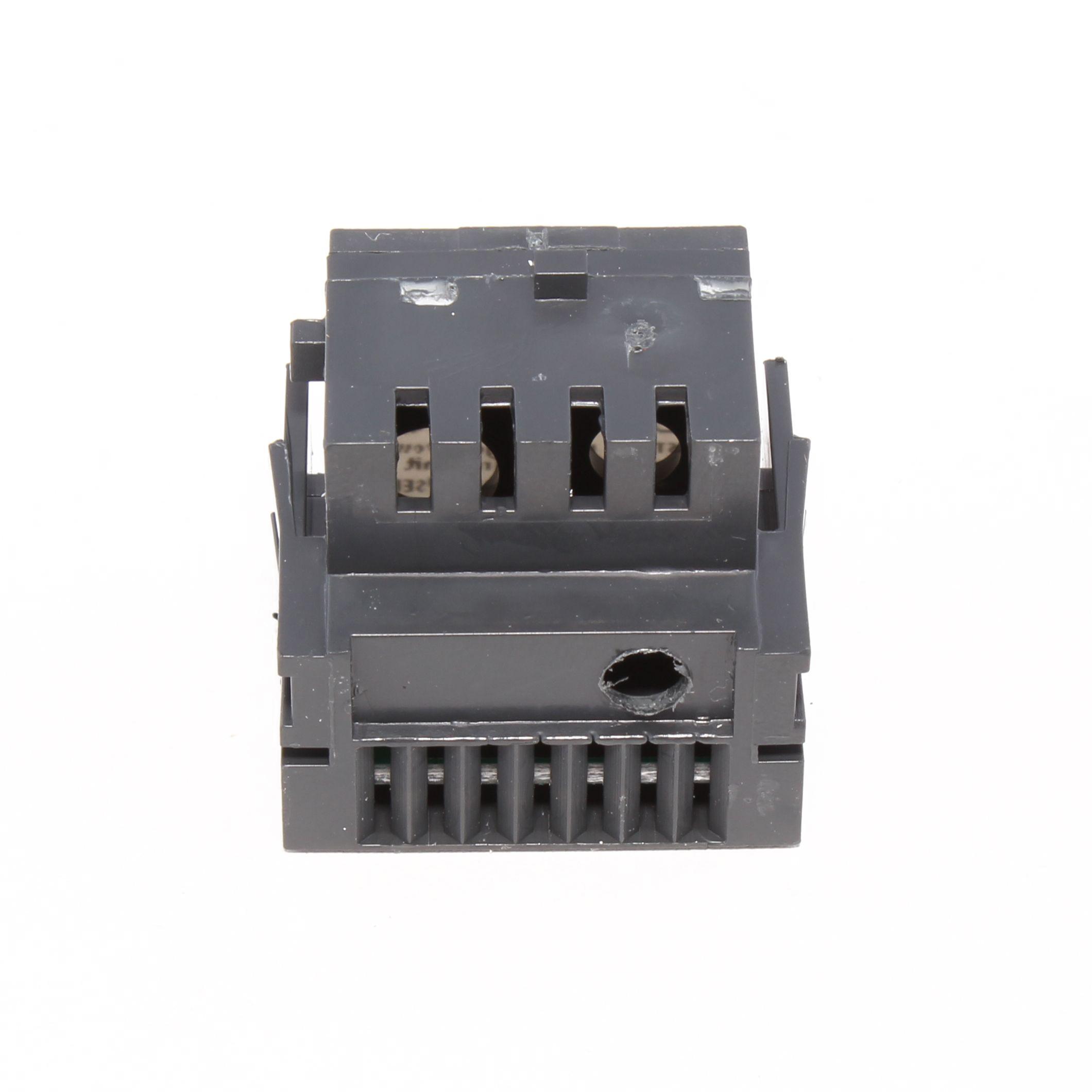

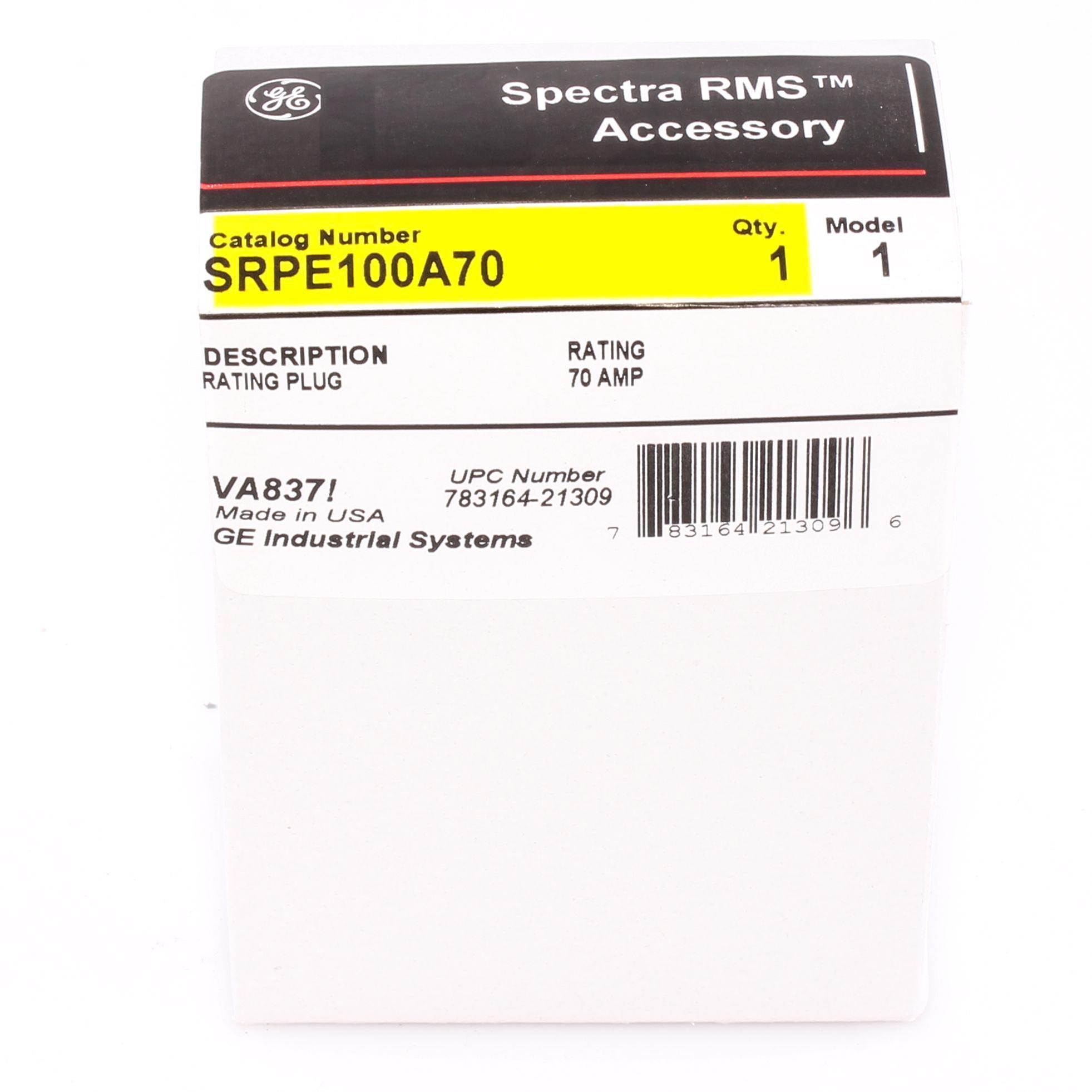

  • SRPE100A70 GE 70A RATING PLUG
  • SRPE100A70 GE 70A RATING PLUG
  • SRPE100A70 GE 70A RATING PLUG
  • SRPE100A70 GE 70A RATING PLUG
  • SRPE100A70 GE 70A RATING PLUG

Description: GE Spectra RMS® Rating Plug, Series: SR Series, 100 A Maximum Breaker Current Rating, 70 A Plug Current Rating, SE150 Breaker Frame Type, For Use With: SE Series Molded Case Circuit Breaker

Manufacturer PN: SRPE100A70

UPC:  78316421309

Kendall Electric Inc PN: 2016951

Invoice Description:

SRPE100A70 GE 70A RATING PLUG


SPEC SHEET

▸ See All in Breaker Rating Plugs


How Can We Make This Page Better?

GE Spectra RMS® SRPE100A70 Rating Plug, 100 A, 70 A Plug Current, SE150 Frame

Log In for Pricing and Availability




Description

All Spectra™, power Break® and power Break® II circuit breakers use UL listed interchangeable rating plugs to establish or change the long time trip point of the circuit breaker. The key advantage of the rating plug is the flexibility of interchangeable rating plugs across the permissible current ratings of a given circuit breaker frame. Since the installed rating plug establishes the ampere rating of the breaker, the installer must verify the adequacy of the connected cable and busbar ampacity. The national electric code allows cable size to be matched to the ampere rating established by the rating plug.
GE Spectra RMS® Rating Plug, Series: SR Series, 100 A Maximum Breaker Current Rating, 70 A Plug Current Rating, SE150 Breaker Frame Type, For Use With: SE Series Molded Case Circuit Breaker

Specifications

 Application Electrical Distribution and Control Applications
 Brand Name GE
 Breaker Frame Type SE150
 Manufacturer Part Number SRPE100A70
 Maximum Breaker Current Rating 100 A
 PART NUMBER KEYWORDS SRPE100A70 ; 7705633 ; 783164213096 ; 78316421309 ; 00783164213096
 Plug Current Rating 70 A
 Series SR Series
 Standards/Approvals CSA File No. LR40350|IEC 947-2|UL File No. E11592
 Suitable For Use With SE Series Molded Case Circuit Breaker

Features

▪ 206 to 863 A adjustable instantaneous trip range
▪ Electronic trip
