Description: Square D™ Zelio™ Logic 2 Smart Relay, Modular, 100 to 240 V AC Supply, 100/50/60/80 mA, 16 Inputs, 10 Outputs, Discrete Input, LCD Backlit Display, DIN Rail Mounting, -20 to 55 deg C, 125 mm L x 90 mm W x 59.5 mm D Dimensions

Manufacturer PN: SR3B261FU

UPC:  38911055000

Kendall Electric Inc PN: 3961348

Invoice Description:

SR3B261FU SQD ZELIO SR3 26I-O


SPEC SHEET

▸ See All in Programmable Relay


How Can We Make This Page Better?

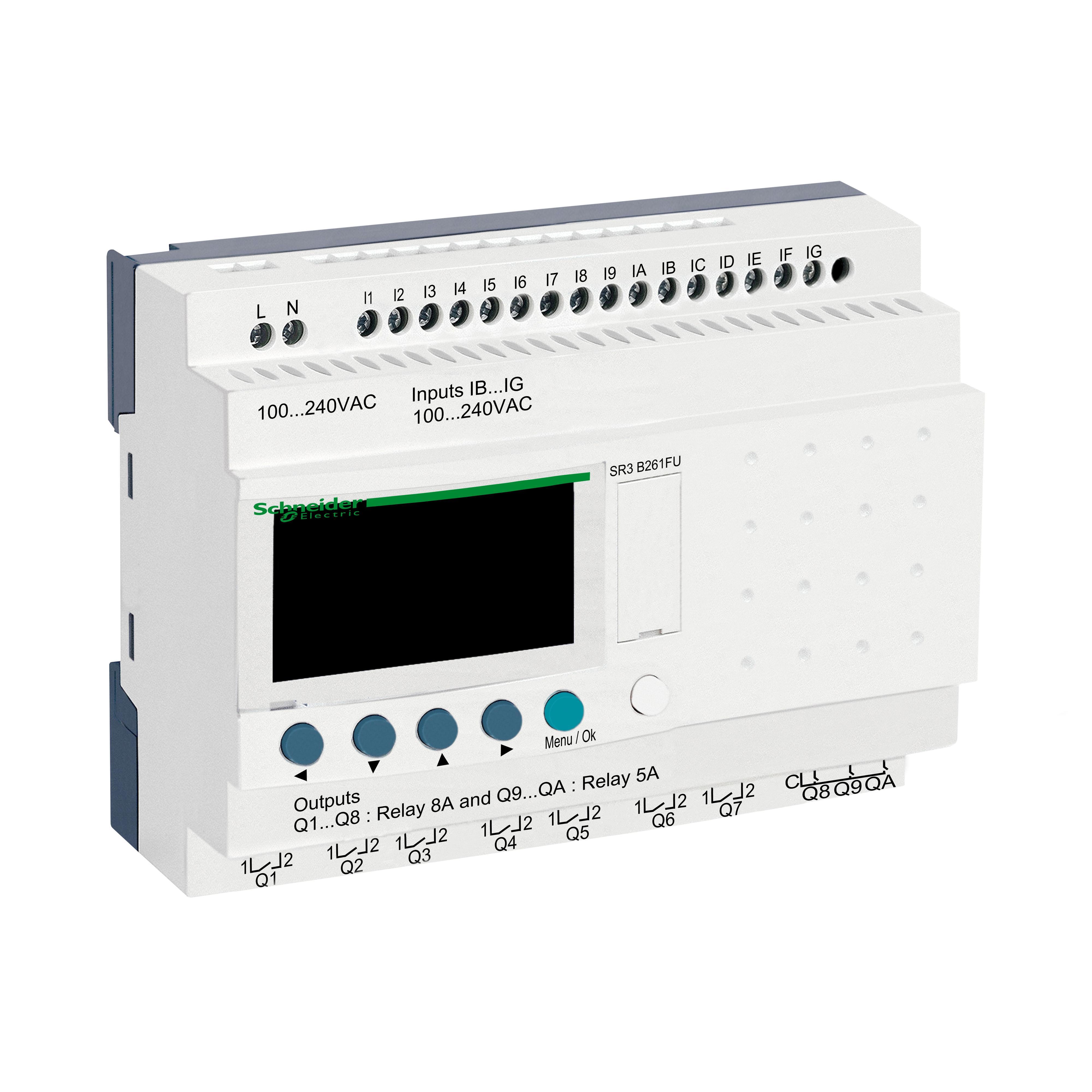

Square D™ Zelio™ Logic 2 SR3B261FU Modular Smart Relay With Display, Integrated Clock, 100 to 240 V AC Supply, 16 Inputs, 10 Outputs, Discrete Input

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 100V-240V alternating current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.
Square D™ Zelio™ Logic 2 Smart Relay, Modular, 100 to 240 V AC Supply, 100/50/60/80 mA, 16 Inputs, 10 Outputs, Discrete Input, LCD Backlit Display, DIN Rail Mounting, -20 to 55 deg C, 125 mm L x 90 mm W x 59.5 mm D Dimensions

Specifications

 Amperage Rating 100/50/60/80 mA
 Brand Name Square D
 Dimensions 125 mm L x 90 mm W x 59.5 mm D
 Input Type Discrete
 Manufacturer Part Number SR3B261FU
 Mounting Type DIN Rail
 Number of Outputs 10
 PART NUMBER KEYWORDS SR3B261FU ; 8099641 ; 785901571896 ; 78590157189 ; 03389110550009 ; 3389110550009
 Standards/Approvals RoHS Compliant|REACH Compliant|CSA Certified|UL Listed|C-Tick Certified|GoST-R Certified|GL Certified|EN/IEC 60068-2-27 Ea|EN/IEC 60068-2-6 Fc|EN/IEC 61000-4-11|EN/IEC 61000-4-12|EN/IEC 61000-4-2 level 3|EN/IEC 61000-4-3|EN/IEC 61000-4-4 level 3|EN/IEC 61000-4-5|EN/IEC 61000-4-6 level 3|Green Premium™ Listed|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -20 to 55 deg C
 Type Modular

Features

▪ Simple ladder programming, adapted for non-specialists
▪ Discovery package, coming with Zelio Soft programming software - the simplest way to learn and use this relay
▪ Built-in EEPROM flash memory for data backup up to 10 years - easy-to-recover after a power shortage or incident
▪ More I/O than SR2 model, for larger applications
