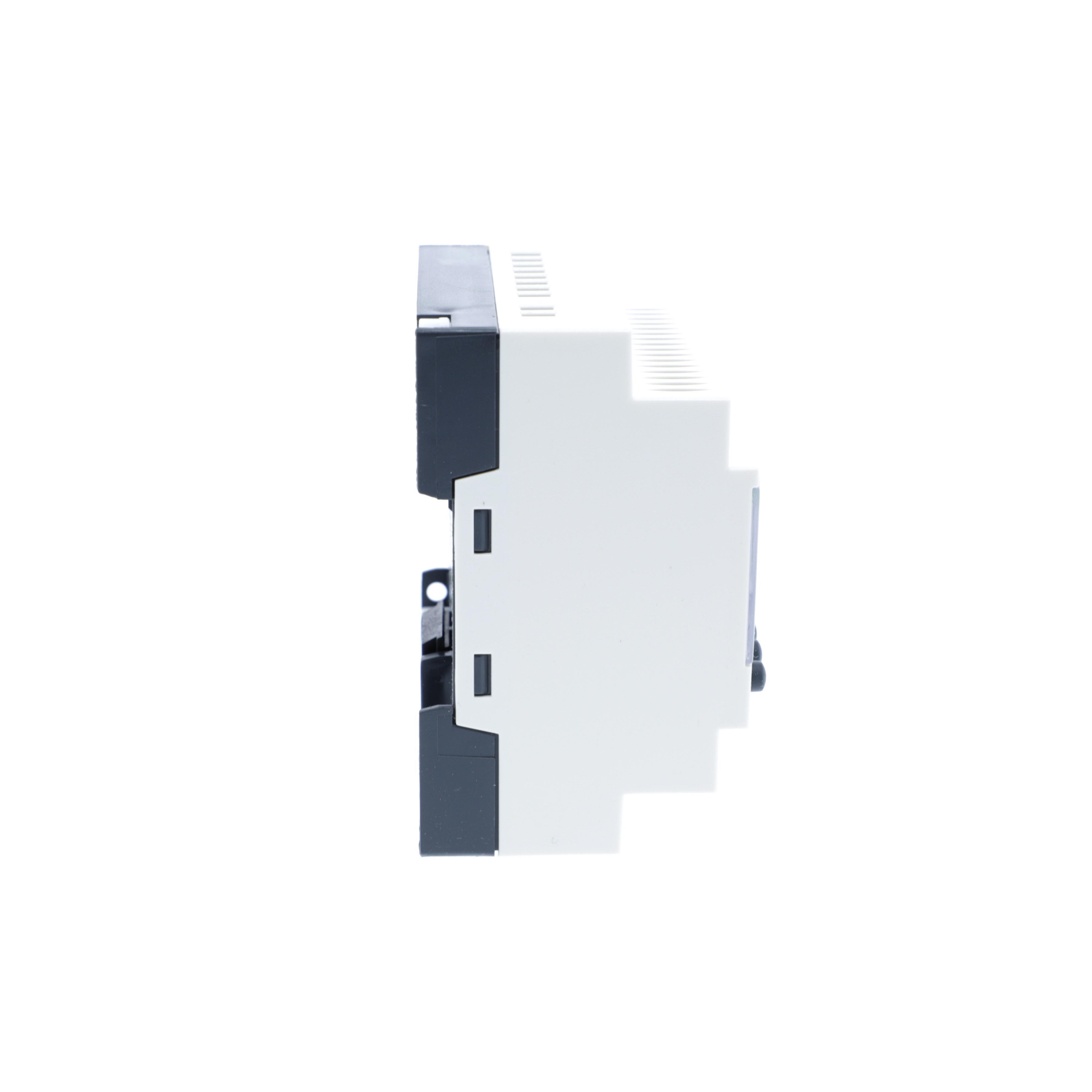

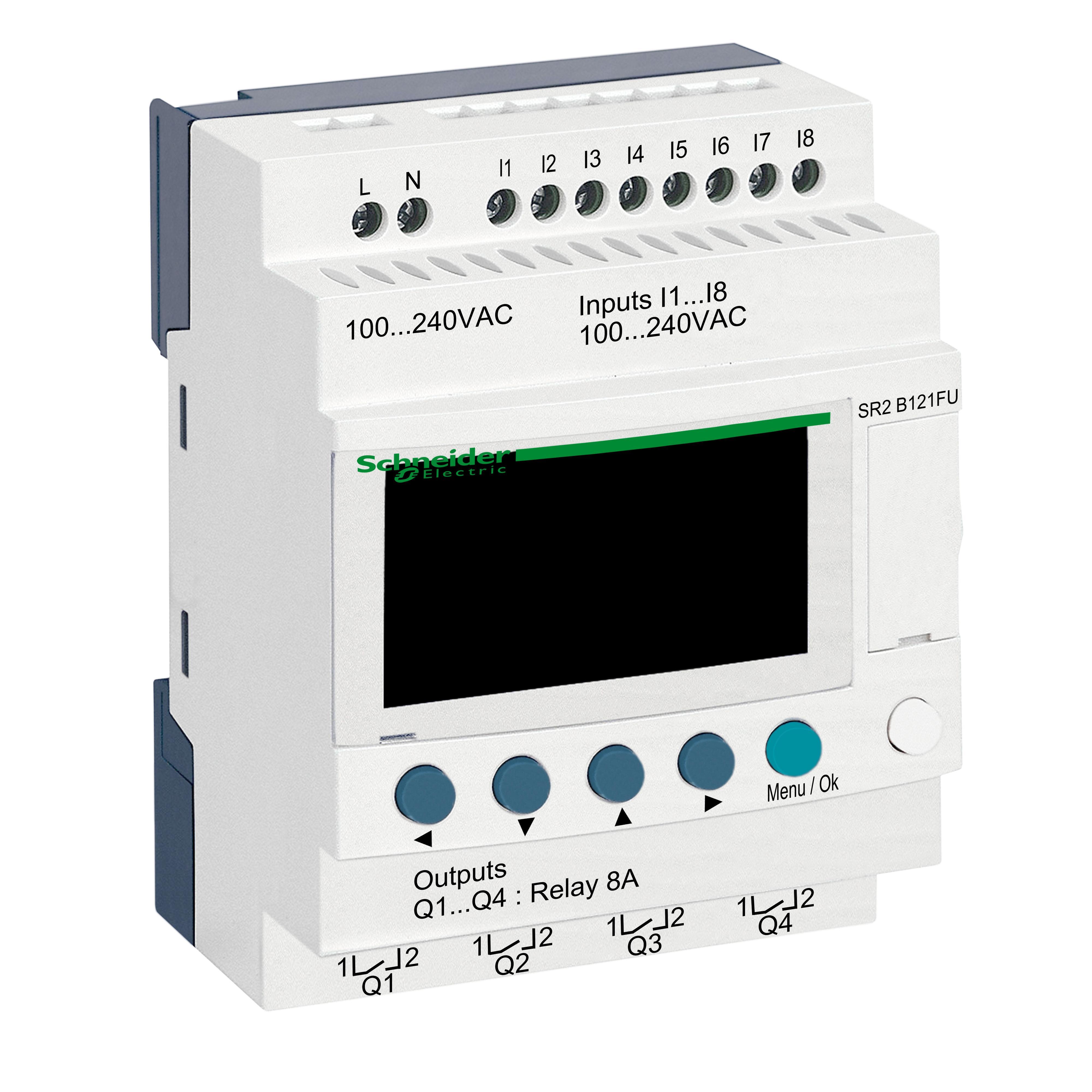

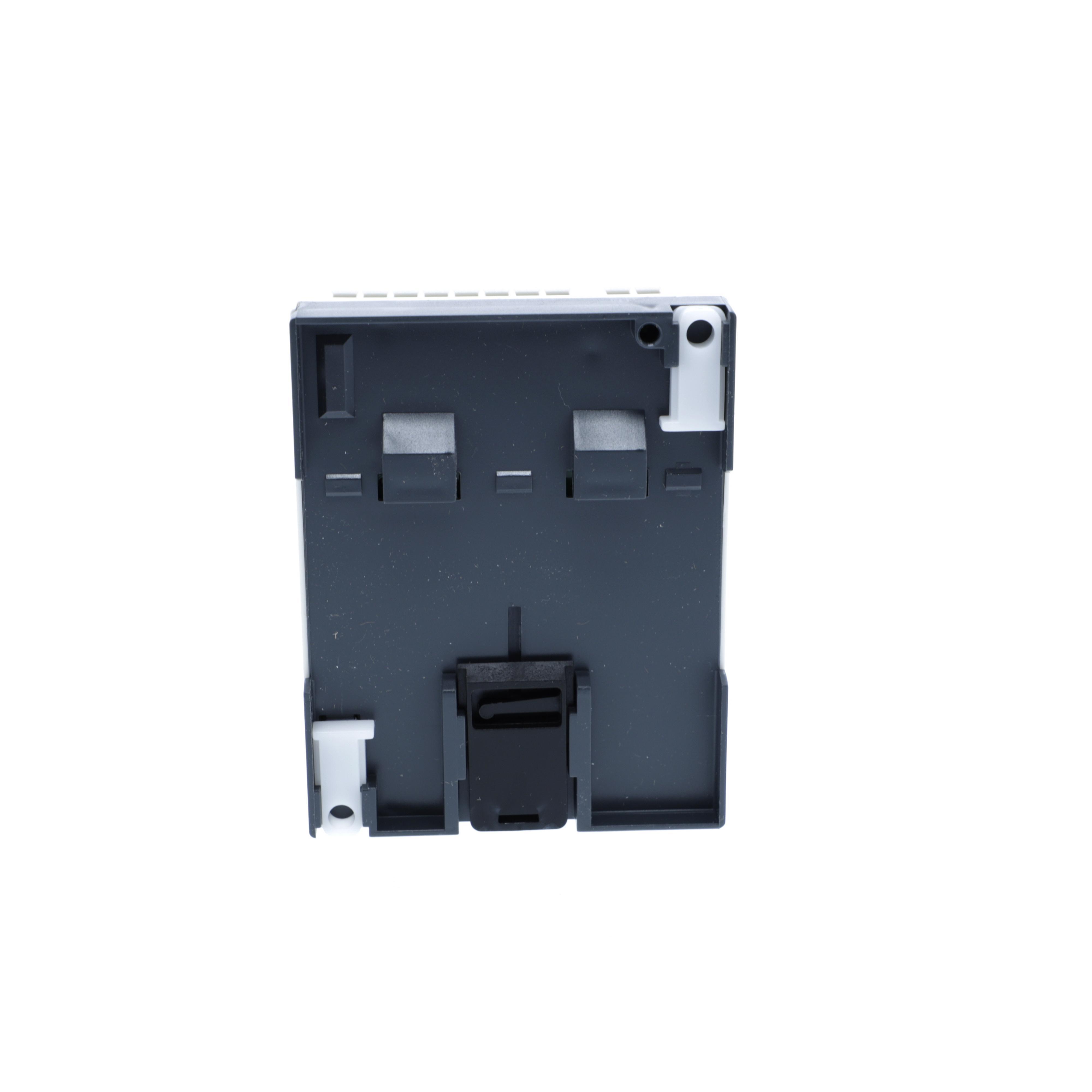

Description: Square D™, SR2B121FU, Smart Relay, Compact, 100 to 240 V AC Supply, 30/80 mA, 8 Inputs, 4 Outputs, -20 to 55 deg C

Manufacturer PN: SR2B121FU

UPC:  38911054764

Kendall Electric Inc PN: 4000700

Invoice Description:

SR2B121FU SQD ZELIO SR2 12 I-O


SPEC SHEET

▸ See All in Programmable Relay


How Can We Make This Page Better?

Square D™ SR2B121FU Compact Smart Relay, 100 to 240 V AC Supply, 8 Inputs, 4 Outputs

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 100V to 240V alternating current. It has 12 inputs / outputs with screw-clamp terminals, has an integrated clock and LCD display. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.
Square D™, SR2B121FU, Smart Relay, Compact, 100 to 240 V AC Supply, 30/80 mA, 8 Inputs, 4 Outputs, -20 to 55 deg C

Specifications

 Amperage Rating 30/80 mA
 Brand Name Square D
 Manufacturer Part Number SR2B121FU
 Number of Outputs 4
 Standards/Approvals RoHS Compliant|CSA Certified|C-Tick Certified|GL Certified|GOST Certified|UL Listed|IEC 60529/60068-2-1/60068-2-2|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -20 to 55 deg C
 Type Compact
 Video Links

Features

▪ 8 a for all 4 output thermal current
▪ 10000000 cycles mechanical durability
▪ 0 5 N-m tightening torque
▪ less than equal 10 ms immunity to micro breaks
▪ -40 to 70 deg c ambient air temperature for storage
▪ 2000 m operating altitude
▪ 6 to 90 ms cycle time
▪ 10 years at 25 deg c backup time
▪ 6 s/month at 25 deg C, 12 min/year at 0 to 55 deg c clock drift
▪ Check program memory on each power up
▪ 50/60 Hz frequency
▪ 7 VA without extension power consumption
▪ 1780 V isolation voltage
▪ 350 kOhm input impedance
▪ 24 to 250 VAC, 5 to 30 VDC output voltage limits
