Description: Telemecanique, SR2A101FU, Smart Relay with Local Display, Compact, 100 to 240 V AC Supply, 30/80 mA, 6 Inputs, 4 Outputs, -20 to 55 deg C

Manufacturer PN: SR2A101FU

UPC:  38911054763

Kendall Electric Inc PN: 4000698

Invoice Description:

SR2A101FU SQD ZELIO SR2 10 I-O


SPEC SHEET

▸ See All in Programmable Relay


How Can We Make This Page Better?

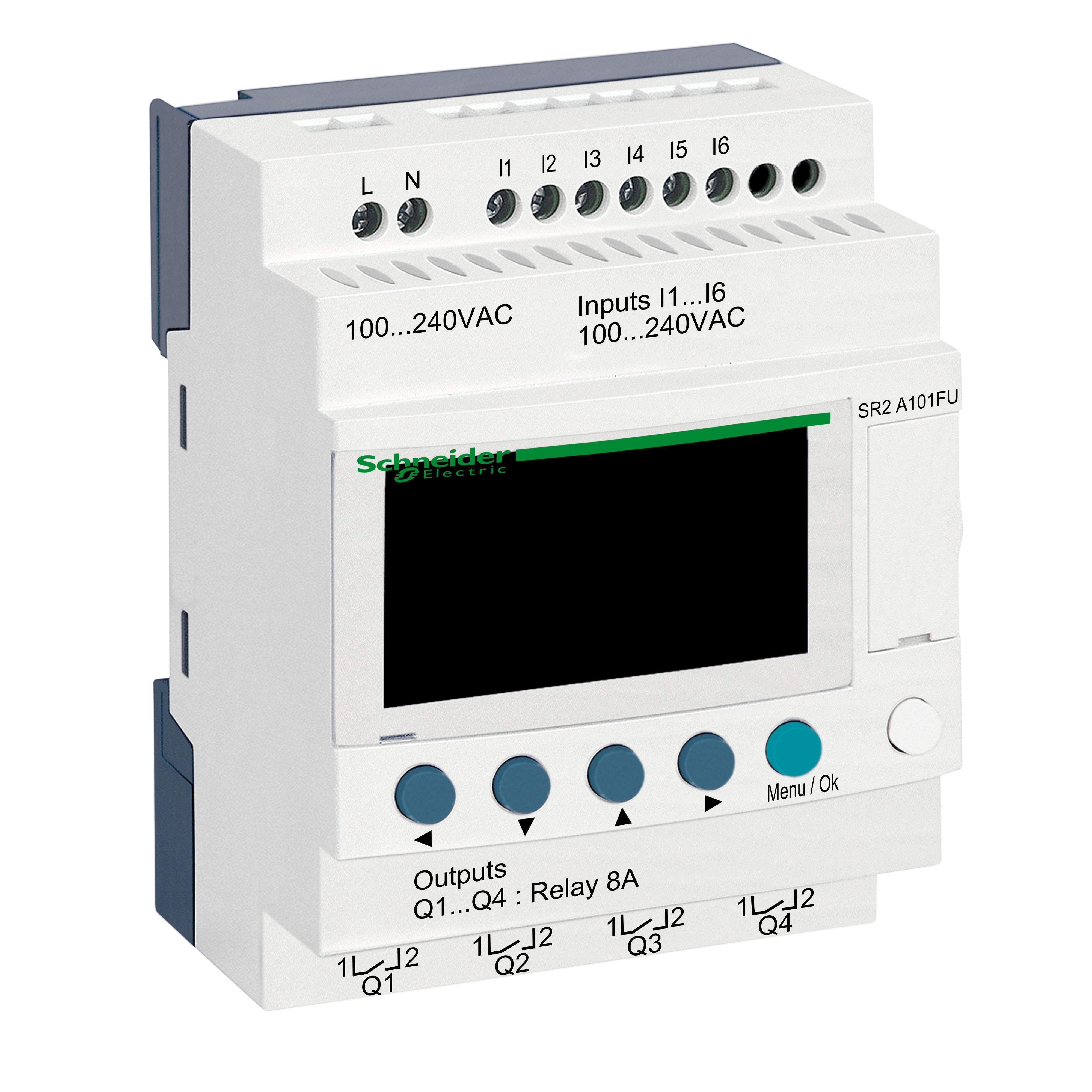

Telemecanique SR2A101FU Compact Smart Relay with Local Display, 100 to 240 V AC Supply, 6 Inputs, 4 Outputs

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This compact programmable relay is ideal for management, remote control or monitoring of simple automation systems. It is suitable for both industrial and commercial applications. It has compact form-factor, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons.
Telemecanique, SR2A101FU, Smart Relay with Local Display, Compact, 100 to 240 V AC Supply, 30/80 mA, 6 Inputs, 4 Outputs, -20 to 55 deg C

Specifications

 Amperage Rating 30/80 mA
 Brand Name Square D
 Manufacturer Part Number SR2A101FU
 Number of Outputs 4
 Standards/Approvals RoHS Compliant|CSA Certified|C-Tick Certified|GL Certified|GOST Certified|UL Listed|IEC 60529|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -20 to 55 deg C
 Type Compact
 Video Links

Features

▪ 6 sec/month at 25 deg C, 12 min/year at 0 to 55 deg C clock drift
▪ 8 A for all 4 outputs output thermal current
▪ 6 to 90 ms cycle time
▪ -40 to 70 deg C ambient air temperature for storage
▪ 10 years at 25 deg C backup time
▪ 1780 V isolation voltage
▪ 24 to 250 VAC, 5 to 30 VDC output voltage limits
▪ 0.5 Nm tightening torque
▪ <=10 ms immunity to micro breaks
▪ 350 kOhm input impedance
▪ 10000000 cycles mechanical durability
▪ Check program memory on each power up
▪ 2000 m operating altitude
▪ 100 to 240 VAC discrete input
▪ 7 VA without extension power consumption
▪ 50/60 Hz supply frequency
▪ IP20 (terminal block) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529 deg of protection
