Schneider Electric

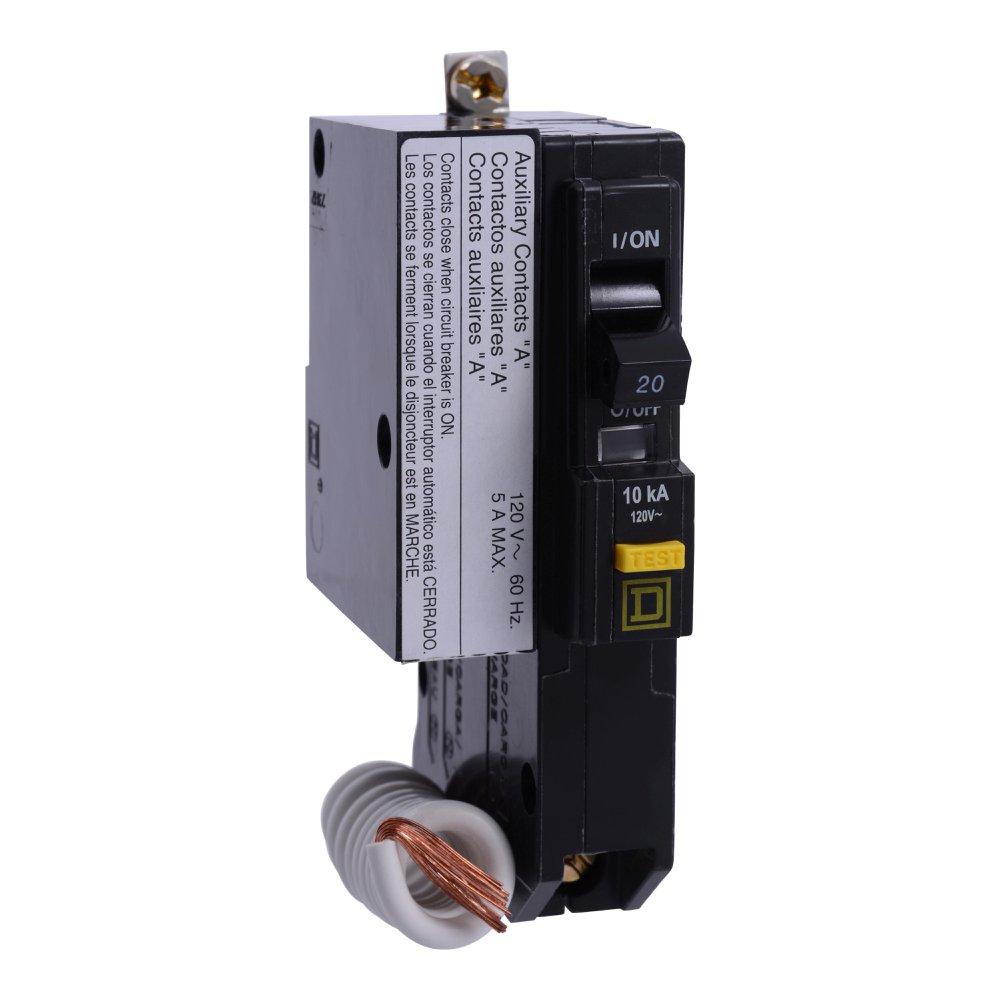

SQD QOB120GFI1200 1P-20A-GFCI CB

Mouse over image to zoom, click to enlarge

Description: Square D™ QO™ Miniature Circuit Breaker, 2-Space Class A Ground Fault Protecting, 120 VAC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, 1 Pole, Pressure Plate Connection, 14 to 8 AWG Al/Cu Wire, Bolt-On Mounting, 104 deg F, 1.5 in W x 2.91 in D x 4.12 in H Dimensions

Manufacturer PN: QOB120GFI1200

Kendall Electric Inc PN: 4035178

Invoice Description:

SQD QOB120GFI1200 1P-20A-GFCI CB


How Can We Make This Page Better?

Square D™ QO™ QOB120GFI1200 2-Space Class A Ground Fault Protecting Miniature Circuit Breaker With Visi-Trip™ Indicator, 120 VAC 1 A Auxiliary Switch, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

QO and QOB 1, 2 and 3-pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This one-pole QO bolt on miniature circuit breaker is rated as 20A, 120/240 V. This circuit breaker provides 10 kA breaking capacity. This circuit breaker is UL listed as SWD (switching duty) rated. It is suitable for switching 120 VAC fluorescent lighting loads. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches are available. This circuit breaker has Class A 6mA ground fault protection and a 120 VAC auxiliary switch. The pressure plate connectors will accept one 14 to 8 AWG copper or aluminum wire. This circuit breaker has a 4.12 in H x 1.5 in W x 2.91 in D. QO circuit breakers are UL listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Square D™ QO™ Miniature Circuit Breaker, 2-Space Class A Ground Fault Protecting, 120 VAC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, 1 Pole, Pressure Plate Connection, 14 to 8 AWG Al/Cu Wire, Bolt-On Mounting, 104 deg F, 1.5 in W x 2.91 in D x 4.12 in H Dimensions

Specifications

 Amperage Rating 20 A
 Brand Name Square D
 Connection Type Pressure Plate
 Dimensions 1.5 in W x 2.91 in D x 4.12 in H
 Frequency Rating 50/60 Hz
 Manufacturer Part Number QOB120GFI1200
 Mounting Type Bolt-On
 Number of Poles 1
 PART NUMBER KEYWORDS QOB120GFI1200 ; 14893187
 Standards/Approvals CSA Certified|Green Premium™ Listed|REACH Compliant|RoHS Compliant|UL Listed|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
 Temperature Rating 104 deg F
 Type 2-Space Class A Ground Fault Protecting
 Voltage Rating 120 V AC

Features

▪ 10 kA at 120 VAC
