Southwire Company
SOU MCB3/4 3/4 EMT ALUM BENDER 03288691105

Mouse over image to zoom, click to enlarge

  • SOU MCB3/4 3/4 EMT ALUM BENDER 03288691105
  • SOU MCB3/4 3/4 EMT ALUM BENDER 03288691105
  • SOU MCB3/4 3/4 EMT ALUM BENDER 03288691105
  • SOU MCB3/4 3/4 EMT ALUM BENDER 03288691105
  • SOU MCB3/4 3/4 EMT ALUM BENDER 03288691105

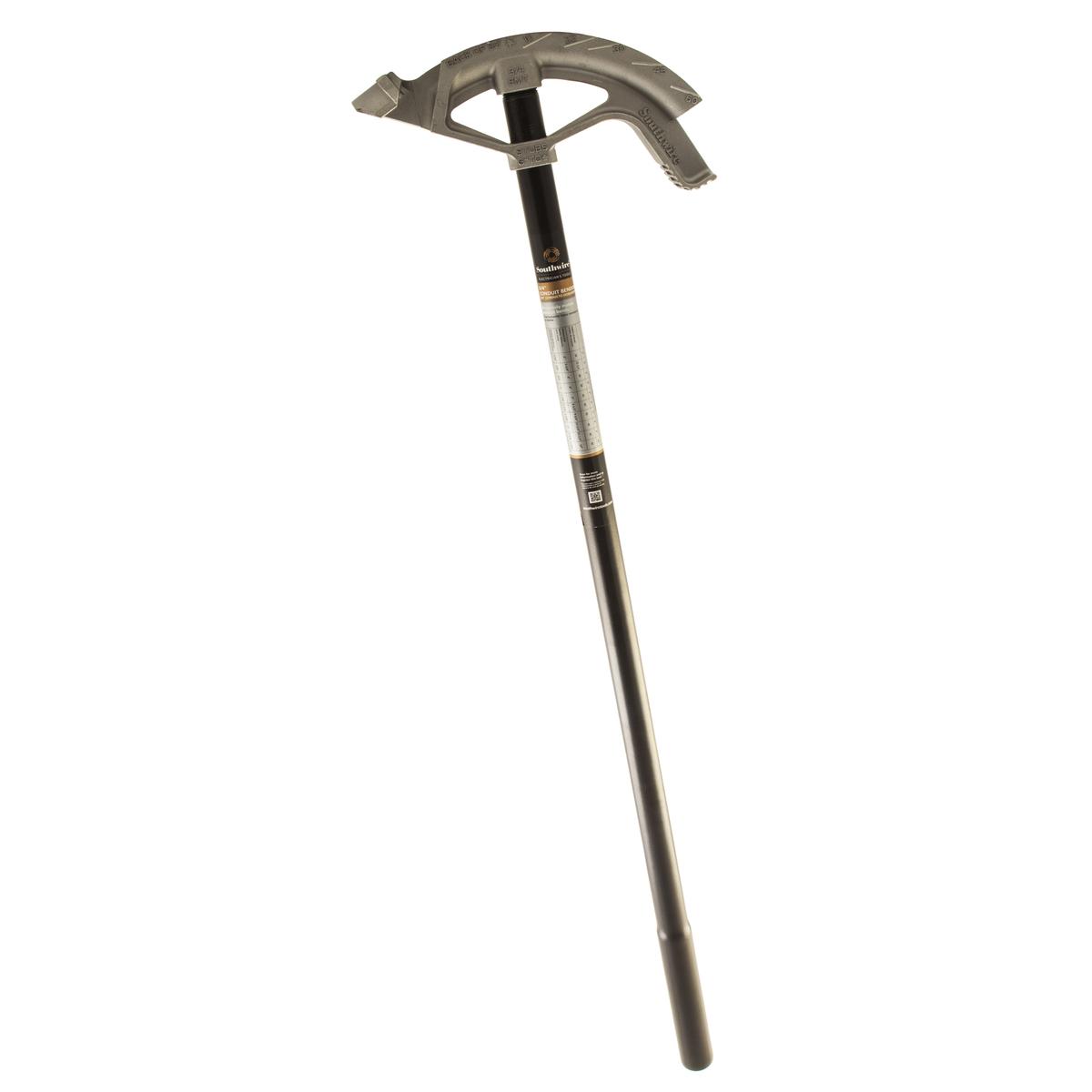

Description: Southwire® Conduit Bender, 90 deg Bend, 5-1/8 in Bend Radius, 3/4 in Thick, Die Cast Aluminum Body, Steel Handle, 3/4 in EMT, 1/2 in RMC For Pipe Diameter, 39 in H x 9 in W x 1-1/4 in D

Manufacturer PN: 582812

UPC:  32886911057

Kendall Electric Inc PN: 4034988

Invoice Description:

SOU MCB3/4 3/4 EMT ALUM BENDER 03288691105


SPEC SHEET

▸ See All in Conduit Benders - Hand


How Can We Make This Page Better?

Southwire® 582812 Conduit Bender With Handle, 5-1/8 in Bend Radius, 90 deg Bend, For Pipe Dia 3/4 in EMT, 1/2 in RMC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Conduit Hand Bender reliably and repeatedly perform common bends such as stubby-ups, offset, back-to-back, and saddle bends. Its large, serrated step provides greater control and helps prevent slippage when applying force. The raised and highly visible bender markings are cast on both sides of the bender head making measurements easy to read. Its ductile aluminum head is built to provide long-lasting durability and extra strength. Additionally, the grooved hook prevents the conduit from slipping, twisting, or rolling when performing bends.
Southwire® Conduit Bender, 90 deg Bend, 5-1/8 in Bend Radius, 3/4 in Thick, Die Cast Aluminum Body, Steel Handle, 3/4 in EMT, 1/2 in RMC For Pipe Diameter, 39 in H x 9 in W x 1-1/4 in D

Specifications

 Application Electrical Applications
 Bend Angle 90 deg
 Bend Radius 5-1/8 in
 Body Material Die Cast Aluminum
 Brand Name Southwire®
 Dimensions 39 in H x 9 in W x 1-1/4 in D
 For Pipe Diameter 3/4 in EMT, 1/2 in RMC
 Handle Material Steel
 Manufacturer Part Number 582812
 PART NUMBER KEYWORDS 582812 ; 58281201 ; 12352342 ; 032886911057 ; 32886911057 ; 03288691105 ; 00032886911057
 Pipe Tube Thickness 3/4 in
 Standards/Approvals PROP65: This product contains material that, the State of California has determined, may cause cancer. www.P65Warnings.ca.gov/product

Features

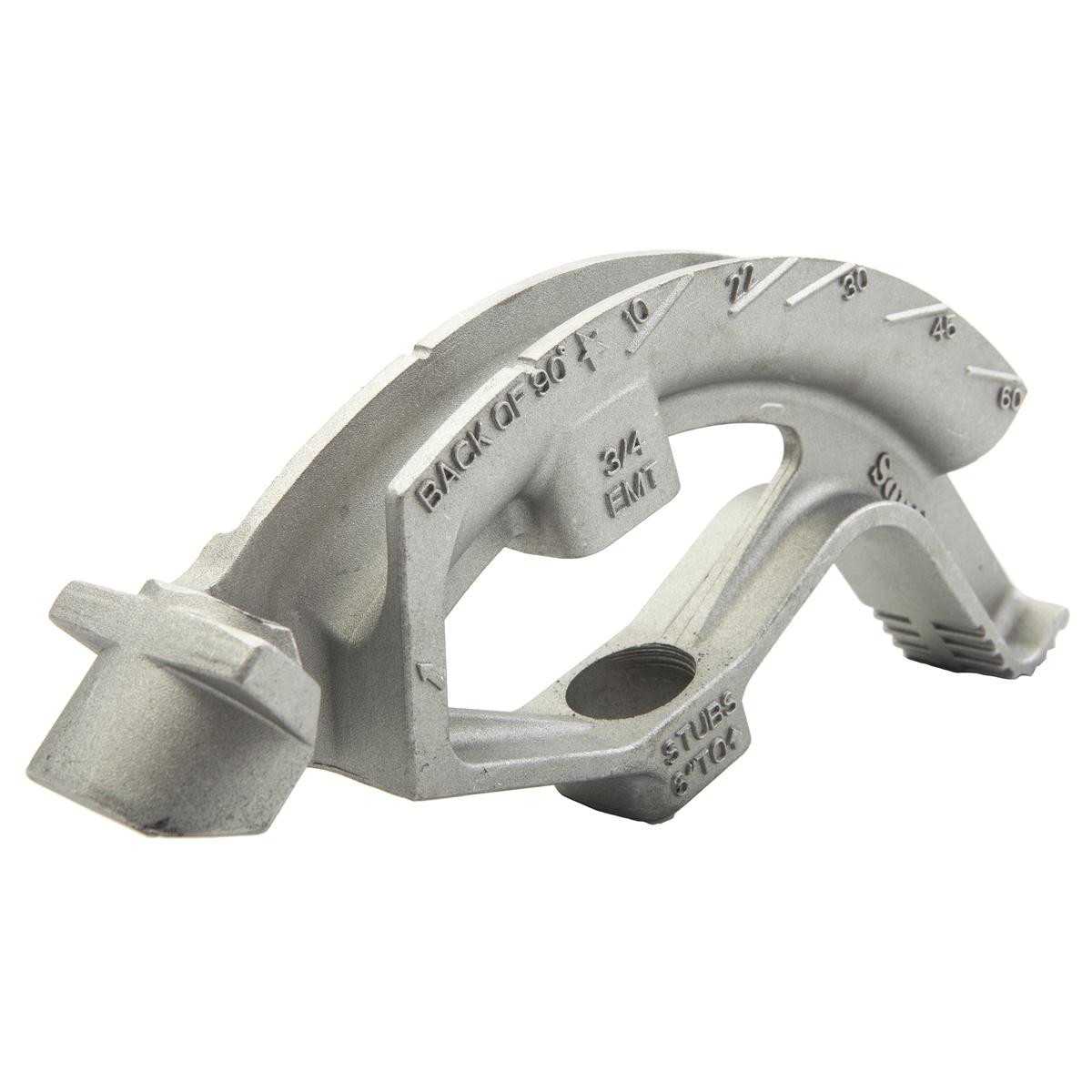

▪ Raised and highly visible bender markings are cast on both sides of the bender head
▪ Cast aluminum head is built to provide lasting durability and extra strength
▪ Grooved hook prevents conduit from slipping, twisting or rolling when performing bends
▪ Swaged steel handle permits insertion of conduit to correct overbends
