Schneider Electric
  • SO2040M200S SQD ALL-IN-ONE RING
  • SO2040M200S SQD ALL-IN-ONE RING
  • SO2040M200S SQD ALL-IN-ONE RING

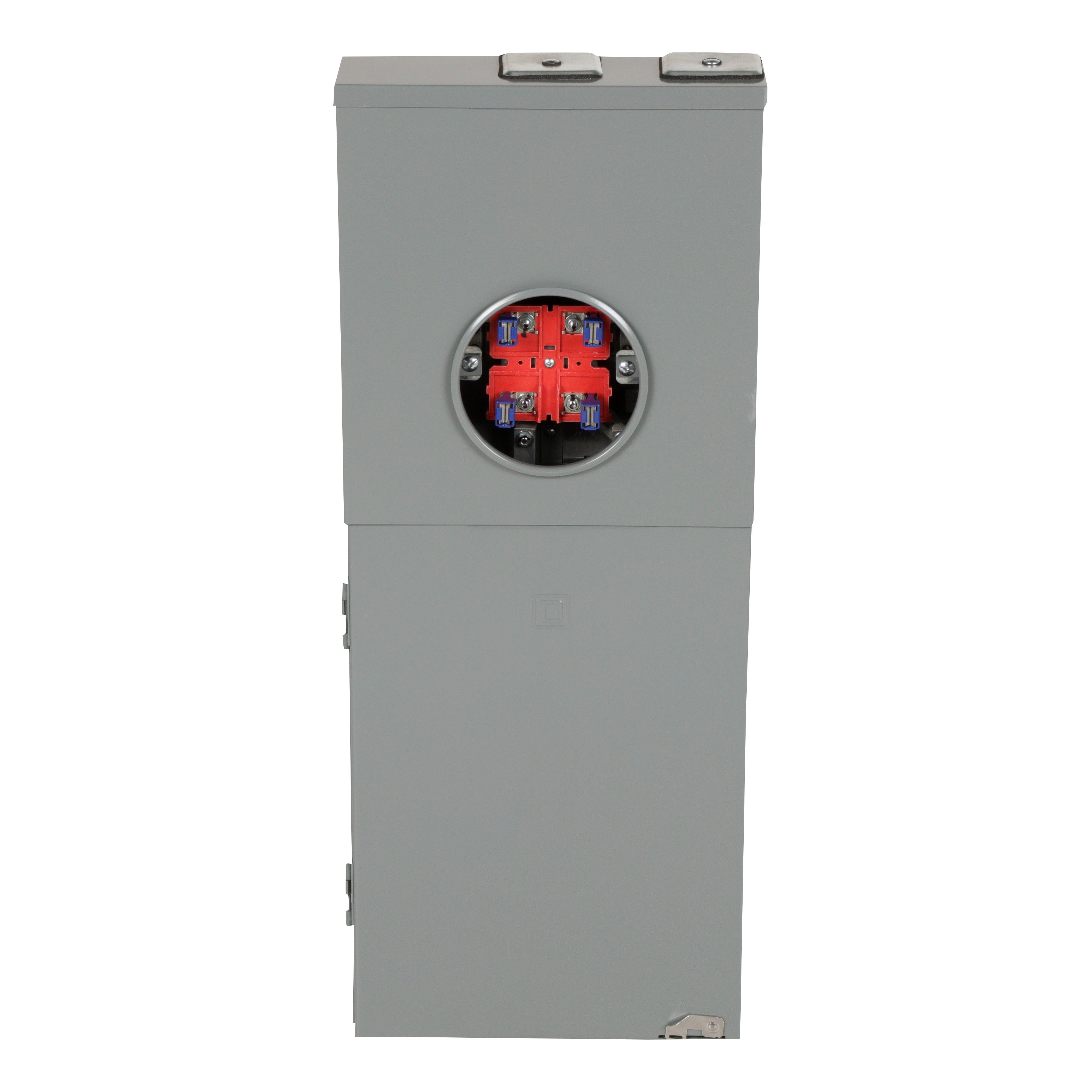

Description: Square D™ HomeLine™ Combination Service Entrance Meter Main, 20-Circuit 40-Space All-In-One Field Installed Rainproof, 120/240 VAC, 200 A, 1 Phase, Overhead Feed, 6 AWG to 350 kcmil, 8 to 2/0 AWG Aluminum/Copper Wire, A Hub, 2-1/2 in Hub, Ring Cover, Line/Service Ground Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 48.62 in H x 18.35 in W x 5.32 in D Dimensions

Manufacturer PN: SO2040M200S

UPC:  78590132803

Kendall Electric Inc PN: 4106129

Invoice Description:

SO2040M200S SQD ALL-IN-ONE RING


SPEC SHEET

▸ See All in Meter Socket Meter Main Combinations


How Can We Make This Page Better?

Square D™ HomeLine™ SO2040M200S 20-Circuit 40-Space All-In-One Field Installed Rainproof Combination Service Entrance Meter Main, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Meter main devices are used in residential applications where local codes require service disconnects to be located outside the dwelling. They include the utility meter socket and factory installed and provisions for field installation of service disconnect to feed downstream devices. Meter mains are surface mount and typically used with interior mounted sub-feed load centers.
Square D™ HomeLine™ Combination Service Entrance Meter Main, 20-Circuit 40-Space All-In-One Field Installed Rainproof, 120/240 VAC, 200 A, 1 Phase, Overhead Feed, 6 AWG to 350 kcmil, 8 to 2/0 AWG Aluminum/Copper Wire, A Hub, 2-1/2 in Hub, Ring Cover, Line/Service Ground Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 48.62 in H x 18.35 in W x 5.32 in D Dimensions

Specifications

 Amperage Rating 200 A
 Application Residential Applications
 Brand Name Square D
 Cover Type Ring
 Dimensions 48.62 in H x 18.35 in W x 5.32 in D
 Enclosure NEMA 3R
 Feed Type Overhead
 Hub Size 2/1/2002 in
 Hub Type A
 Manufacturer Part Number SO2040M200S
 Mounting Type Surface
 Phase 1
 Standards/Approvals RoHS Compliant|UL 50|UL 67|UL 414 File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|CSA Approved
 Terminal Type Line/Service Ground Lug
 Type 20-Circuit 40-Space All-In-One Field Installed Rainproof
 Voltage Rating 120/240 VAC

Features

▪ Multiple disconnect units can accommodate plug-on surge breaker™ secondary surge arrester
▪ Multiple disconnect units can be converted to semi-flush with addition of flange kit
▪ 6 AWG to 350 kcmil aluminum/copper line side, 8 to 2/0 AWG aluminum/copper service ground lug
▪ Without bypass
