Hubbell
SNAP8300UACW HUBBELL USB CHG SNAP HG 20A125V DUP 5A PT AC, WH

Mouse over image to zoom, click to enlarge

  • SNAP8300UACW HUBBELL USB CHG SNAP HG 20A125V DUP 5A PT AC, WH
  • SNAP8300UACW HUBBELL USB CHG SNAP HG 20A125V DUP 5A PT AC, WH
  • SNAP8300UACW HUBBELL USB CHG SNAP HG 20A125V DUP 5A PT AC, WH
  • SNAP8300UACW HUBBELL USB CHG SNAP HG 20A125V DUP 5A PT AC, WH

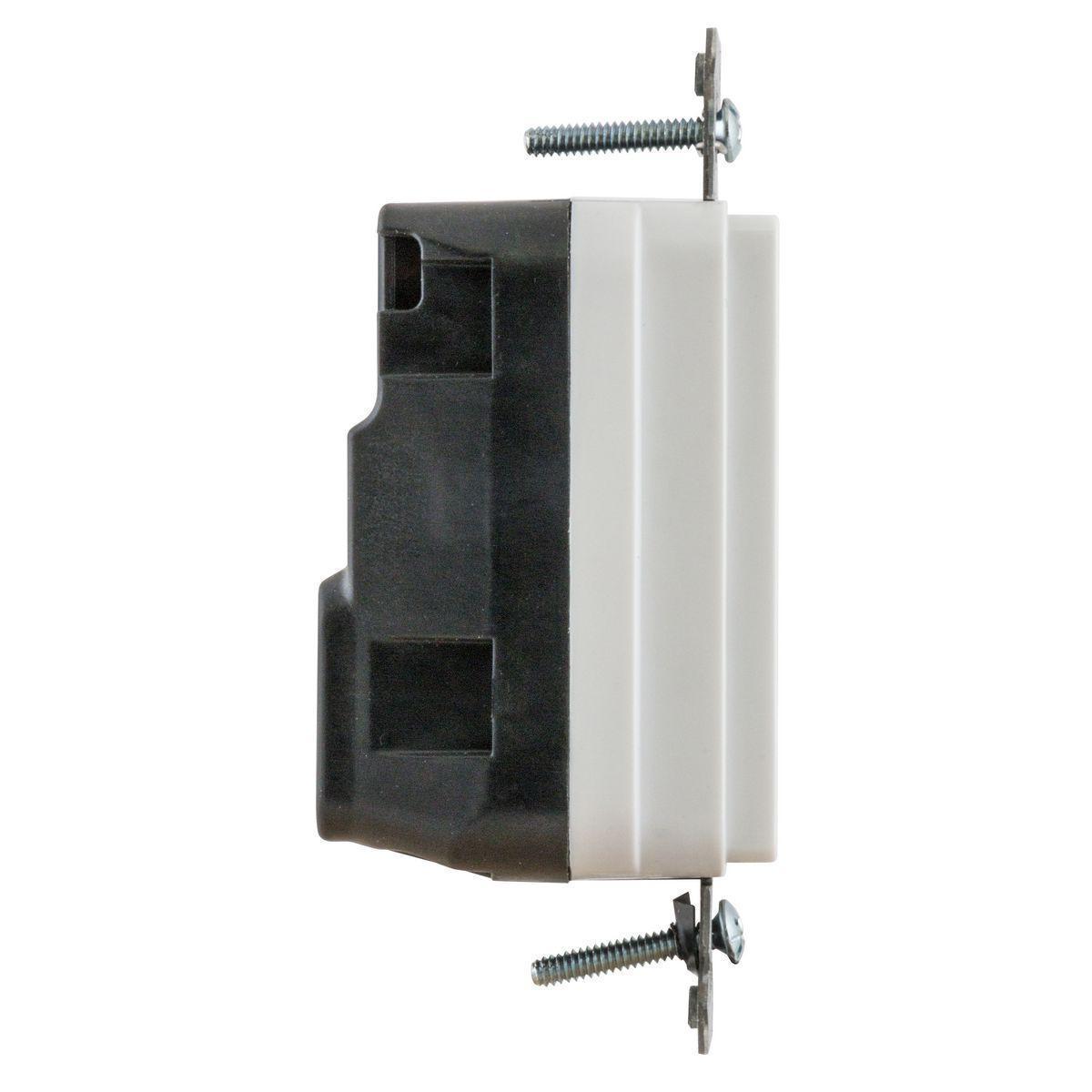

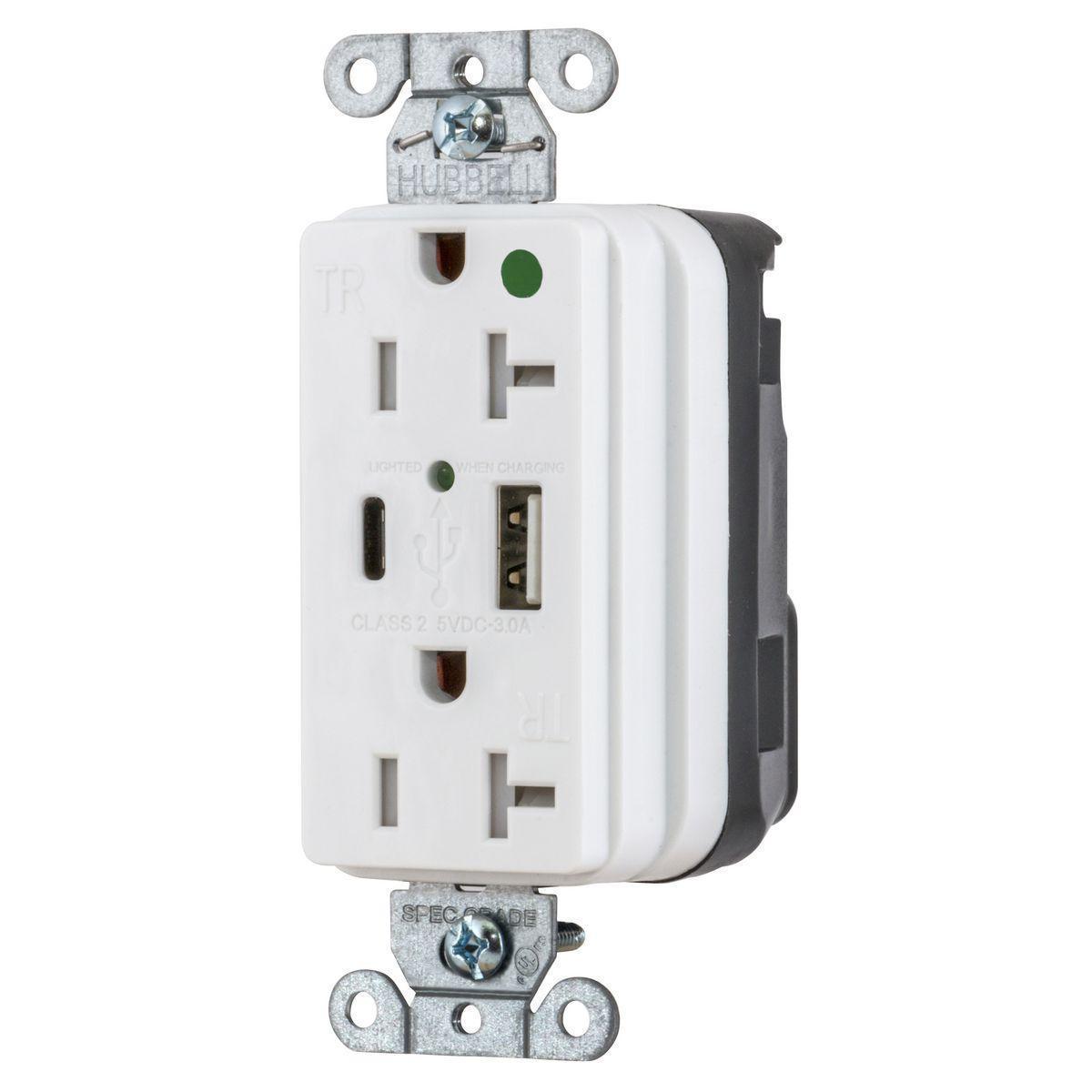

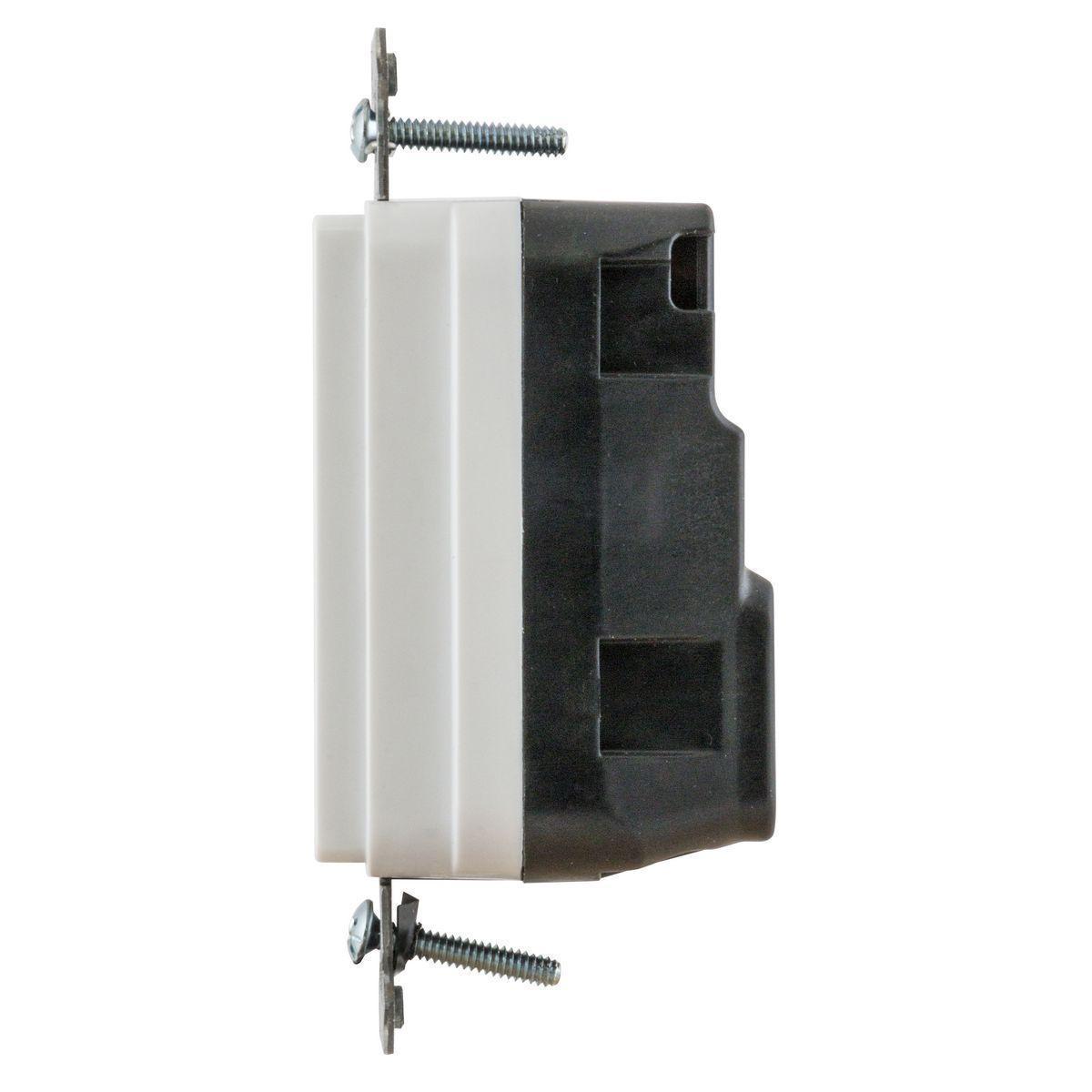

Description: Hubbell Wiring Device-Kellems SNAPConnect® USB Charger Receptacle, Decorator Duplex Straight Blade, 125 V AC, 20 A Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Type-A USB 2.0/C USB, 3 A at 9 VDC USB, 4.13 in H x 1.84 in D Size, Snap/Screw Connection, Threaded Mounting, Hospital Grade, Wiring Method: Grounding, Thermoplastic, White, Environmental Conditions: -40 to 75 deg C Operating, UL 94V-2 Flammability Rating

Manufacturer PN: SNAP8300UACW

UPC:  88377830866

Kendall Electric Inc PN: 4098339

Invoice Description:

SNAP8300UACW HUBBELL USB CHG SNAP HG 20A125V DUP 5A PT AC, WH


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems SNAPConnect® SNAP8300UACW Decorator Duplex Straight Blade USB Charger Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems SNAPConnect® USB Charger Receptacle, Decorator Duplex Straight Blade, 125 V AC, 20 A Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Type-A USB 2.0/C USB, 3 A at 9 VDC USB, 4.13 in H x 1.84 in D Size, Snap/Screw Connection, Threaded Mounting, Hospital Grade, Wiring Method: Grounding, Thermoplastic, White, Environmental Conditions: -40 to 75 deg C Operating, UL 94V-2 Flammability Rating

Specifications

 Brand Name Hubbell Premise Wiring
 Color White
 Connection Snap/Screw
 Electrical Ratings 125 V AC, 20 A
 Environmental Conditions -40 to 75 deg C Operating, UL 94V-2 Flammability Rating
 Grade Hospital
 Manufacturer Part Number SNAP8300UACW
 Material Thermoplastic
 Mounting Threaded
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS SNAP8300UACW ; 14568521 ; 883778308666 ; 88377830866 ; 00883778308666
 Size 4.13 in H x 1.84 in D
 Standards/Approvals cULus Listed|UL 498|UL 1310|CSA Certified
 Type Decorator Duplex Straight Blade
 USB Rating 3 A at 9 V DC
 USB Type Type-A USB 2.0/C
 Wiring Method Grounding

Features

▪ Combination Ports, One Type A, One Type C
▪ High Power 3 A up to 9 V USB Output
▪ USB Ports Rated 10,000 Cycles
