Schneider Electric
  • SN400LA SQD NEUTRAL ASSEMBLY
  • SN400LA SQD NEUTRAL ASSEMBLY
  • SN400LA SQD NEUTRAL ASSEMBLY
  • SN400LA SQD NEUTRAL ASSEMBLY
  • SN400LA SQD NEUTRAL ASSEMBLY
  • SN400LA SQD NEUTRAL ASSEMBLY

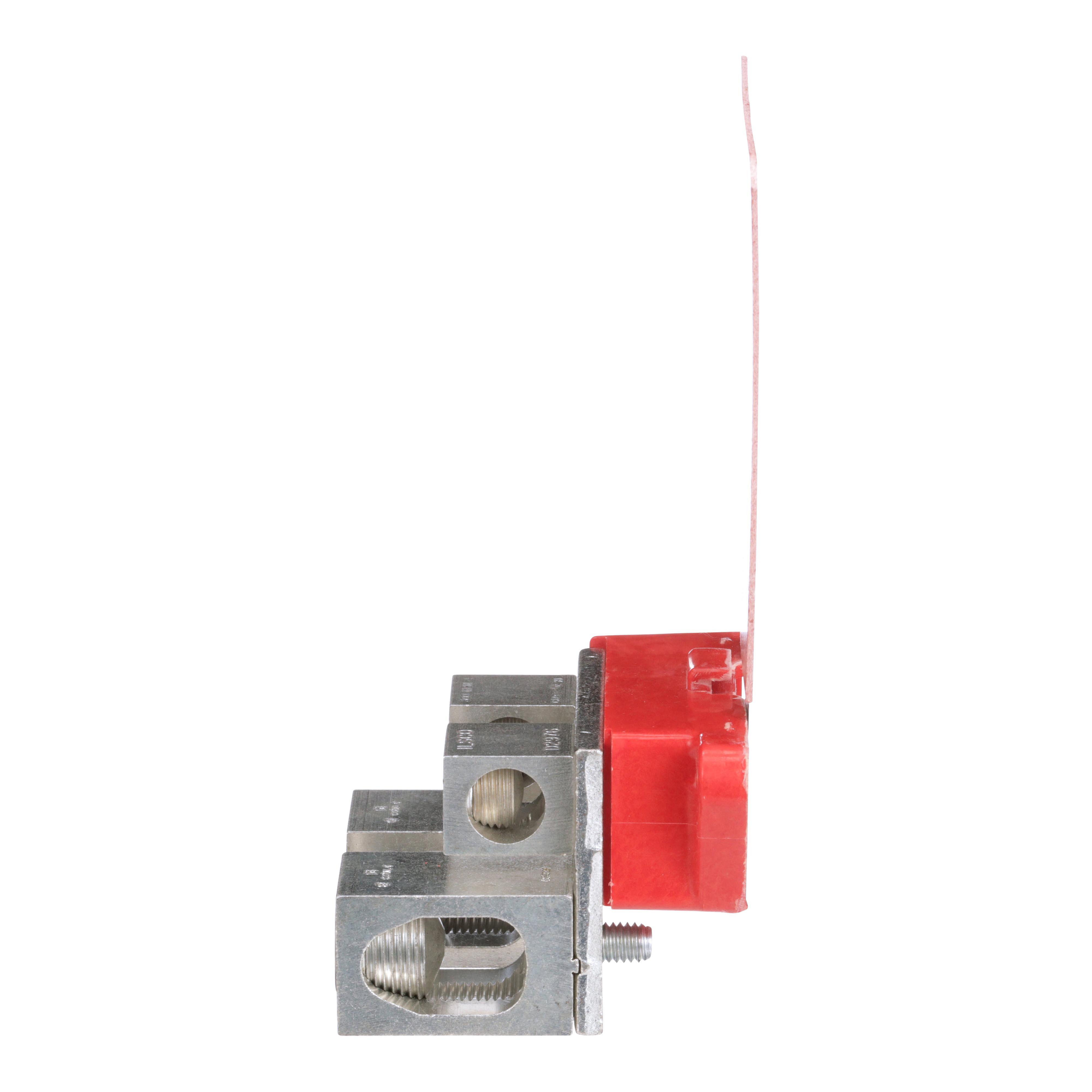

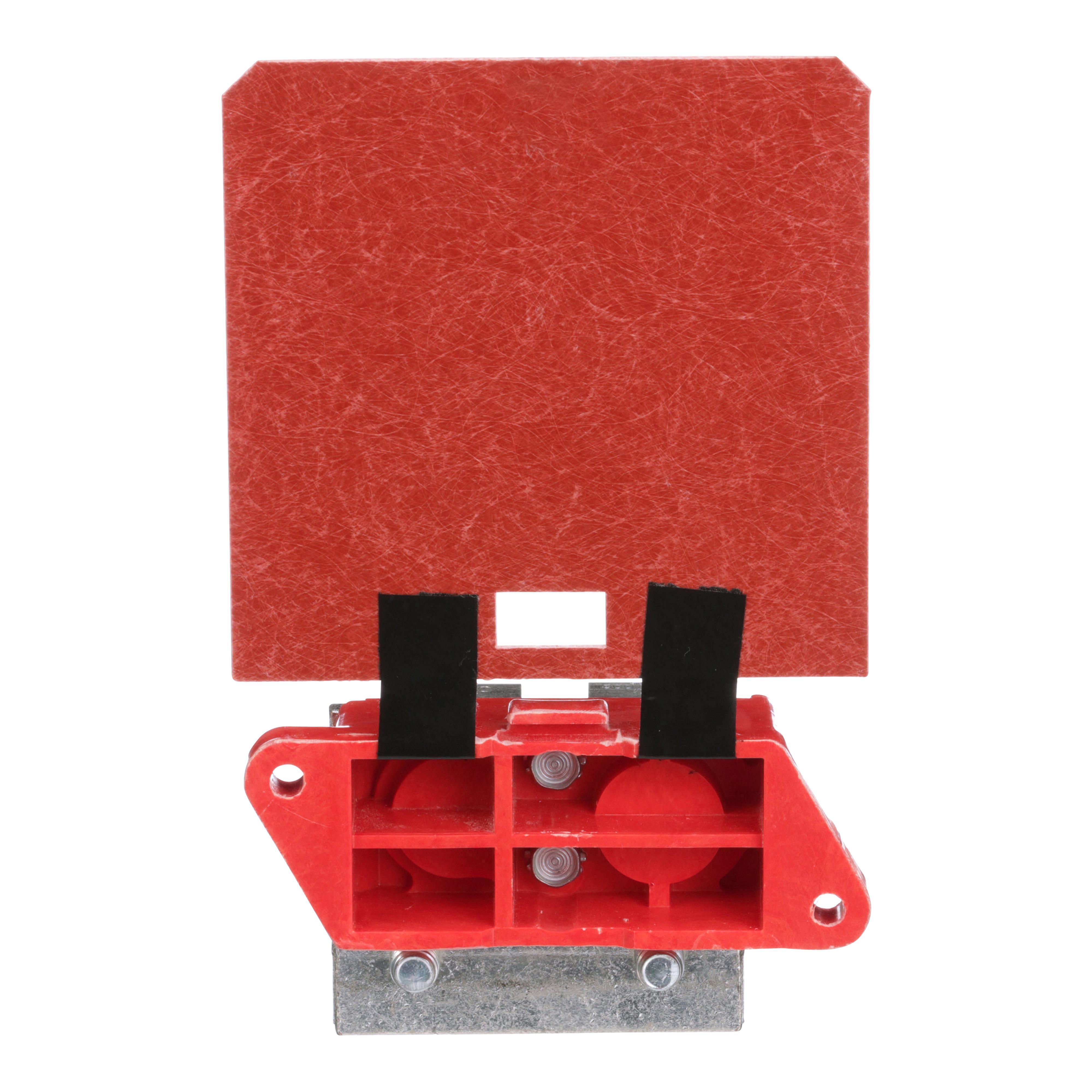

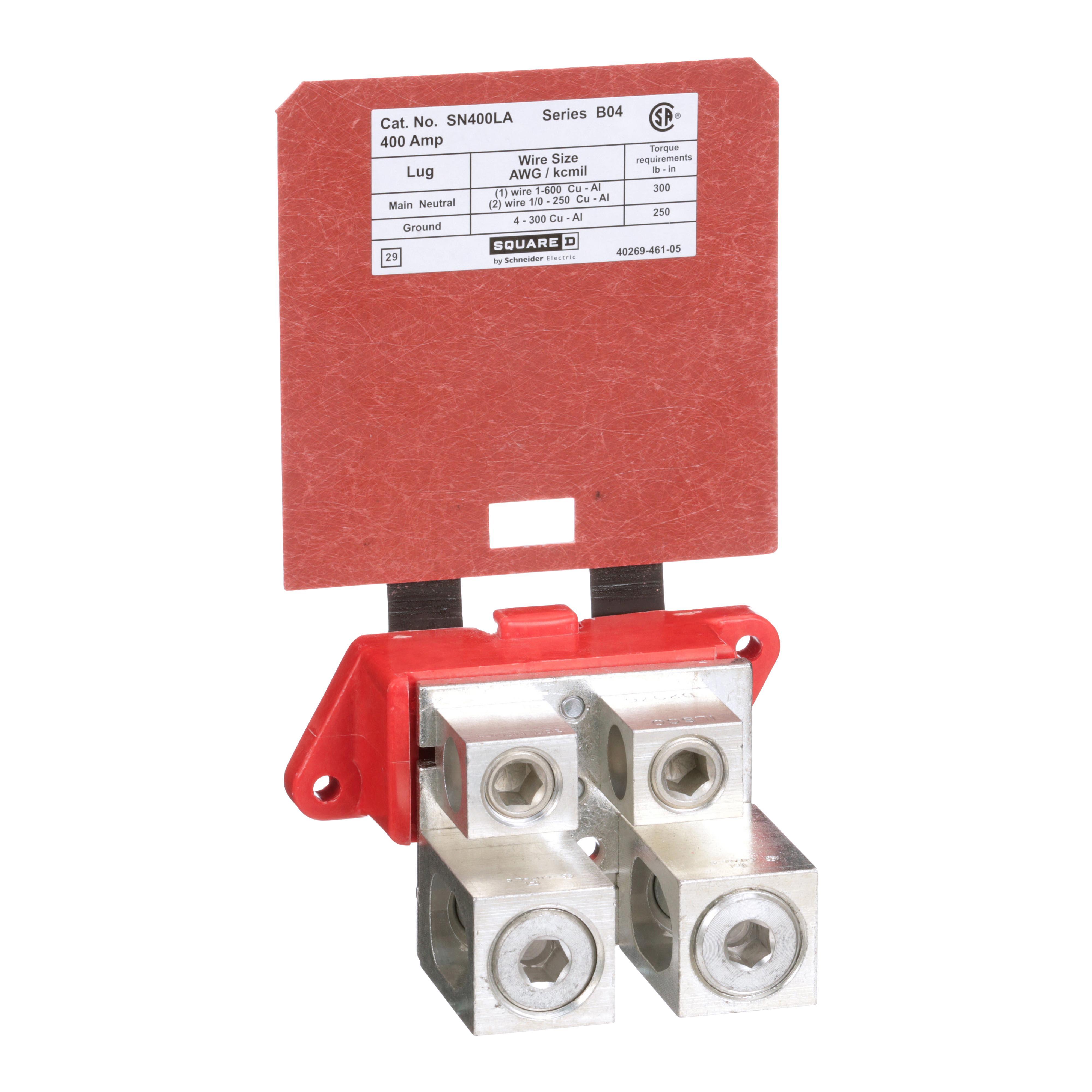

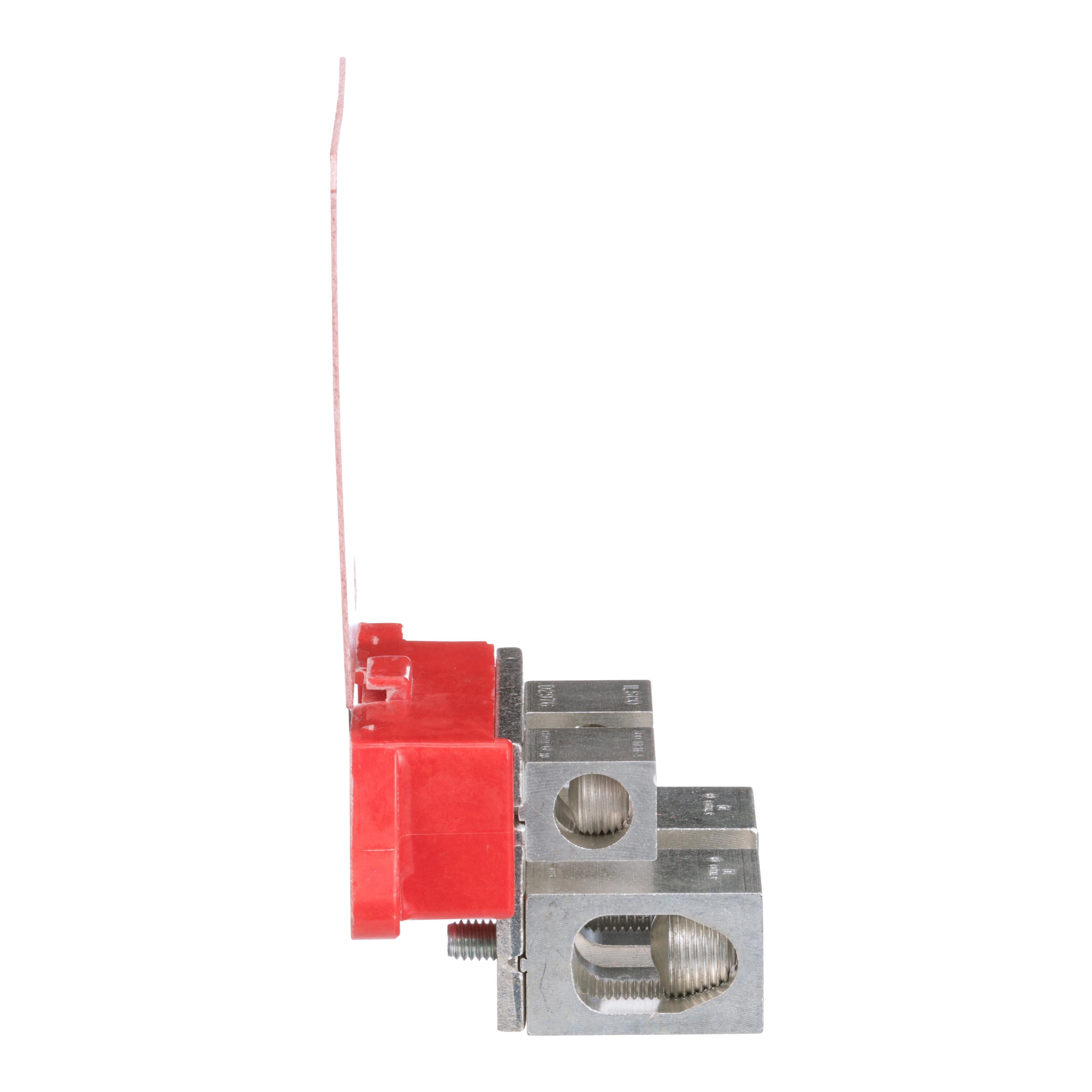

Description: Square D™, SN400LA, Neutral Assembly, Groundable Insulated Standard, For Use With: PowerPact™ 400 A HDL, HGL, HJL, HLL, JDL, JGL, JJL, JLL, LAL H and J-Frame Standard Circuit Breaker, NEMA 1/3R/4/4X/5/12/12K Enclosure

Manufacturer PN: SN400LA

UPC:  78590149598

Kendall Electric Inc PN: 3959246

Invoice Description:

SN400LA SQD NEUTRAL ASSEMBLY


SPEC SHEET

▸ See All in Switch Ground & Neutral Components


How Can We Make This Page Better?

Square D™ SN400LA Groundable Insulated Standard Neutral Assembly, For Use With PowerPact™ 400 A HDL, HGL, HJL, HLL, JDL, JGL, JJL, JLL, LAL H and J-Frame Standard Circuit Breaker, NEMA 1/3R/4/4X/5/12/12K Enclosure

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The PowerPacT™ H-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. The L-Frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPacT L, Insulated Neutral Assembly, Groundable.
Square D™, SN400LA, Neutral Assembly, Groundable Insulated Standard, For Use With: PowerPact™ 400 A HDL, HGL, HJL, HLL, JDL, JGL, JJL, JLL, LAL H and J-Frame Standard Circuit Breaker, NEMA 1/3R/4/4X/5/12/12K Enclosure

Specifications

 Brand Name Square D
 Enclosure Rating NEMA 1/3R/4/4X/5/12/12K
 Manufacturer Part Number SN400LA
 PART NUMBER KEYWORDS SN400LA ; 8071213 ; 785901495987 ; 78590149598 ; 00785901495987 ; 0785901495987
 Standards/Approvals RoHS Compliant|Buy American Act Compliant|UL Listed|CSA Certified|ECCN EAR99|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Suitable For Use With PowerPact™ 400 A HDL, HGL, HJL, HLL, JDL, JGL, JJL, JLL, LAL H and J-Frame Standard Circuit Breaker
 Type Groundable Insulated Standard

Features

▪ Worldwide availability with unique global part numbers
▪ Flexible and simple offer with proven performance
▪ Direct access to energy metering and energy efficiency
▪ Designed to have a mechanical endurance three times greater than NEMA standards
