Eaton

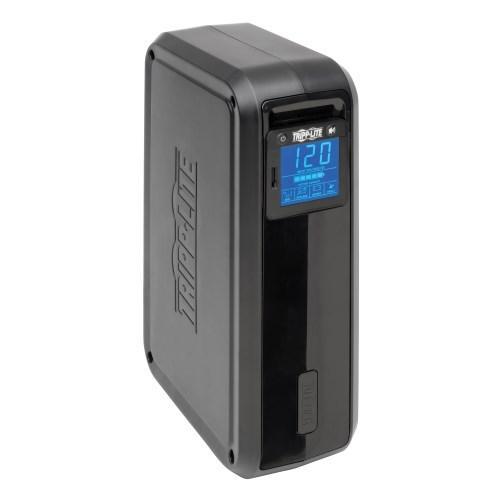

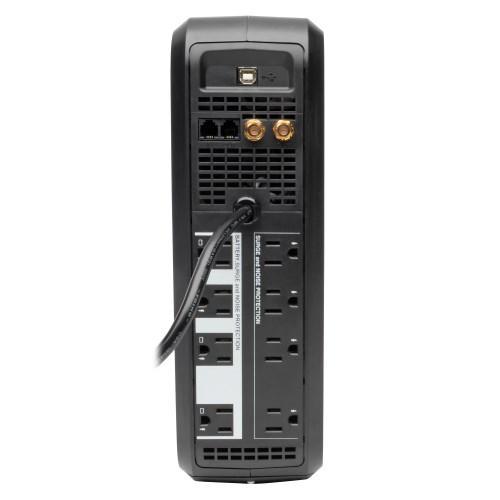

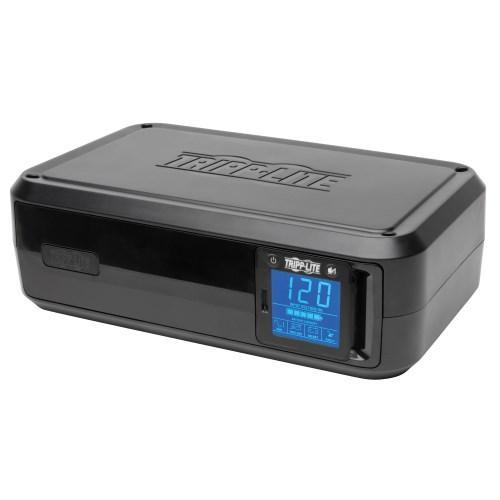

SMART1000LCD TRIPPLITE-WABER 500WATT 115V UPS

Mouse over image to zoom, click to enlarge

Description: Tripp Lite Uninterruptible Power Supply, Line Interactive, Series: SmartPro, 120 V AC Input, 110/115/120 V AC Output, 500 W, 1000 VA Power, 60 Hz Frequency, 3/10 min Backup, 1 ph, 8 Outlets, (4) UPS/(4) Surge Outlet, ABS Body, NEMA 5-15P Plug Configuration, (8) NEMA 5-15R Receptacle Configuration, 6 ft Cord Length, LCD Display, Tower Mounting, USB Interface, ON/OFF Switch Control, Environmental Conditions: 32 to 104 deg F Operating Temperature, 5 to 122 deg F Storage Temperature, 0 to 95% Non-Condensing Relative Humidity, 11.84 in H x 3.66 in W x 7.24 in D Dimensions

Manufacturer PN: SMART1000LCD

UPC: 03733212499

Kendall Electric Inc PN: 2792776

Invoice Description:

SMART1000LCD TRIPPLITE-WABER 500WATT 115V UPS

SPEC SHEET

▸ See All in Uninterruptible Power Supplies - AC

How Can We Make This Page Better?

Tripp Lite SMART1000LCD SmartPro Line Interactive Uninterruptible Power Supply, 120 V AC Input, 110/115/120 V AC Output, 500 W, 1000 VA Power Rating, 3/10 min Backup, 8 Outlets

Note: Lead times are estimates only

Description Specifications Features Resources

Description

The SMART1000LCD SmartPro LCD 120 V, 1000 VA/500 W line interactive uninterruptible power supply provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this line interactive UPS switches to battery backup mode in ms to keep your connected equipment running long enough to save files and shut down safely with no data loss. While all eight NEMA 5-15R outlets protect against surges, four outlets also provide up to 3 hr of UPS battery support for a DVR component, 60 min of support for a basic desktop PC and LCD monitor and 10 min of support at half load (250 W). Automatic voltage regulation (AVR) corrects undervoltages as low as 89 V without using any battery power. EMI/RFI noise filtering improves your equipments performance and prevents damage. A 1038- J surge suppression rating protects your equipment from harmful power surges. Space saving NEMA 5-15P plug with 6 ft cord connects to any NEMA 5-15R socket and allows furniture to be placed flush against the wall. Large rotatable LCD screen with dimmer shows real time input voltage, overload, AVR and battery statuses at a glance. With Tripp Lite free PowerAlert software, the SMART1000LCD enables safe unattended system shutdown and file saves in case of a prolonged power failure.

Tripp Lite Uninterruptible Power Supply, Line Interactive, Series: SmartPro, 120 V AC Input, 110/115/120 V AC Output, 500 W, 1000 VA Power, 60 Hz Frequency, 3/10 min Backup, 1 ph, 8 Outlets, (4) UPS/(4) Surge Outlet, ABS Body, NEMA 5-15P Plug Configuration, (8) NEMA 5-15R Receptacle Configuration, 6 ft Cord Length, LCD Display, Tower Mounting, USB Interface, ON/OFF Switch Control, Environmental Conditions: 32 to 104 deg F Operating Temperature, 5 to 122 deg F Storage Temperature, 0 to 95% Non-Condensing Relative Humidity, 11.84 in H x 3.66 in W x 7.24 in D Dimensions

Specifications

Backup Time	3/10 min
Body Material	ABS
Brand Name	Tripp Lite
Control	ON/OFF Switch
Cord Length	6 ft
Dimensions	11.84 in H x 3.66 in W x 7.24 in D
Environmental Conditions	32 to 104 deg F Operating Temperature, 5 to 122 deg F Storage Temperature, 0 to 95% Non-Condensing Relative Humidity
Frequency Rating	60 Hz

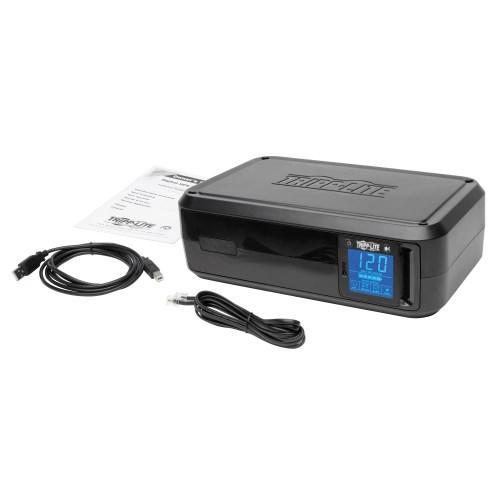

Includes	USB Cable, Telephone Cord and Owner's Manual
Input Voltage	120 V AC
Interface	USB
Manufacturer Part Number	SMART1000LCD
Mounting Type	Tower
NEMA Plug Configuration	NEMA 5-15P
NEMA Receptacle Configuration	(8) NEMA 5-15R
Number of Outlets	8
Outlet Type	(4) UPS/(4) Surge
Output Voltage	110/115/120 V AC
Phase	1
Power Rating	500 W, 1000 VA
Series	SmartPro
Standards/Approvals	Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
Type	Line Interactive
