Hubbell

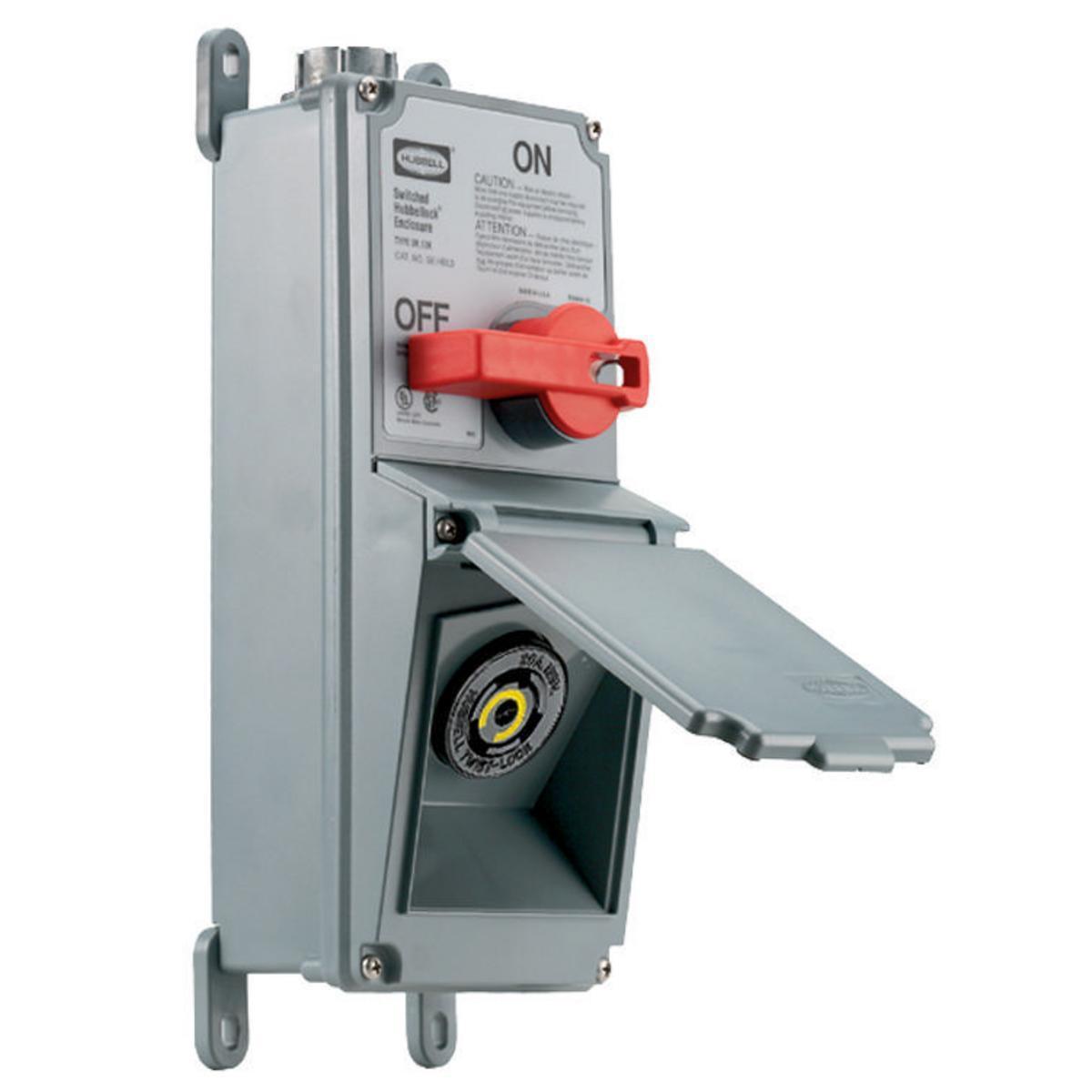

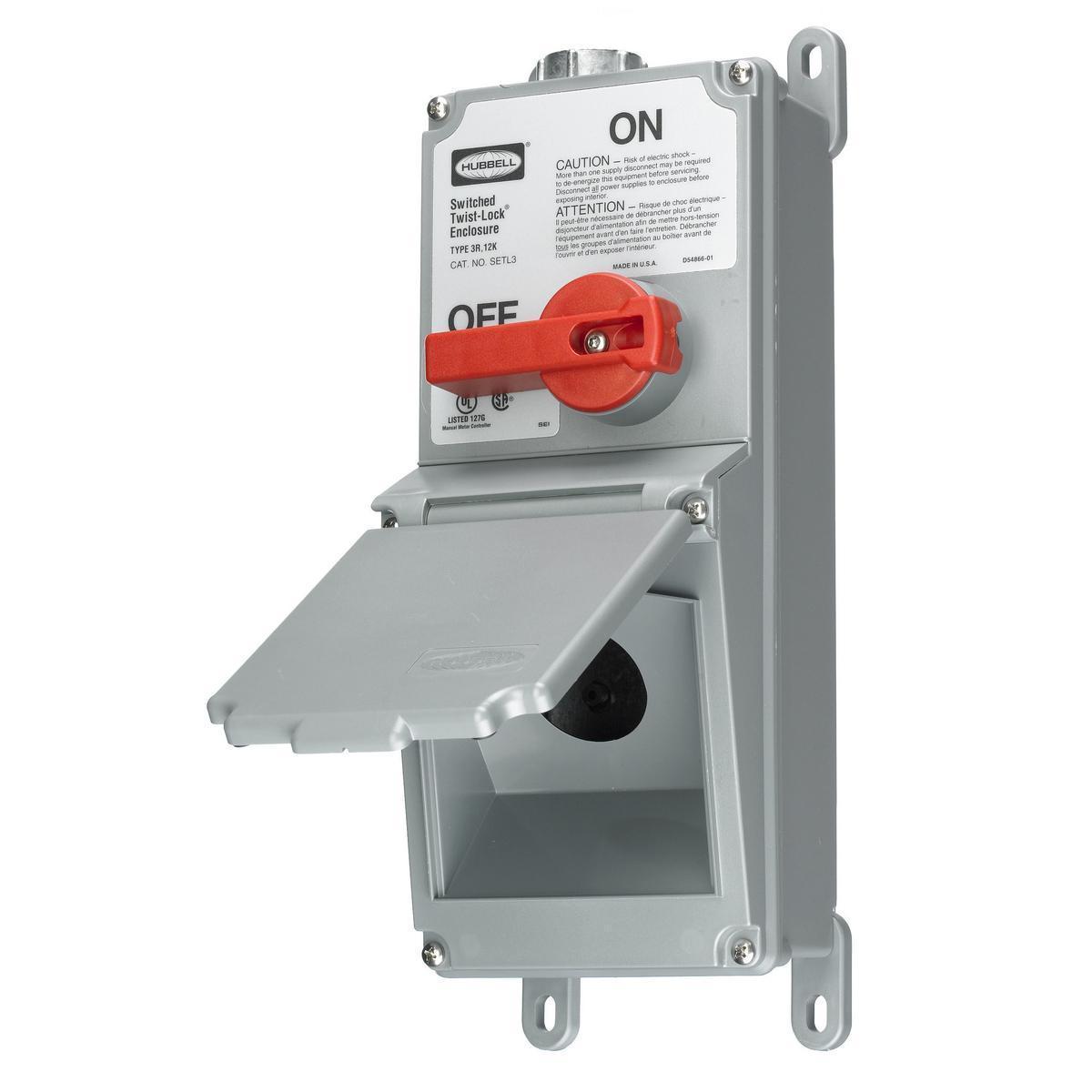

SETL3 HUB SWITCHED ENCLOSURE WITHOUT RCPT

Mouse over image to zoom, click to enlarge

  • SETL3 HUB SWITCHED ENCLOSURE WITHOUT RCPT
  • SETL3 HUB SWITCHED ENCLOSURE WITHOUT RCPT
  • SETL3 HUB SWITCHED ENCLOSURE WITHOUT RCPT

Description: Hubbell Wiring Device-Kellems, SETL3, Switched Enclosure, 2-Position Extra Heavy Duty Lever Actuated Standard Sized Foot Mount, 600 V AC, 30 A, 15 hp, 60 Hz Frequency, 3 Pole, 5 Wires, 4X NEMA Rating, -40 to 75 deg C, Screw Terminal, Composite, Gray, 11.38 x 4.88 x 4.5 in Dimensions

Manufacturer PN: SETL3

UPC:  78358500605

Kendall Electric Inc PN: 2066091

Invoice Description:

SETL3 HUB SWITCHED ENCLOSURE WITHOUT RCPT


SPEC SHEET

▸ See All in Locking Device Covers


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems SETL3 2-Position Extra Heavy Duty Lever Actuated Standard Sized Foot Mount Switched Enclosure, 600 V AC, 30 A, 3 Poles, 5 Wires, Gray

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Switches and Lighting Controls, Industrial Grade, Lever Actuated, Switched Enclosure, Three Pole, 30A 600V AC Max, Terminal Screws, Gray.
Hubbell Wiring Device-Kellems, SETL3, Switched Enclosure, 2-Position Extra Heavy Duty Lever Actuated Standard Sized Foot Mount, 600 V AC, 30 A, 15 hp, 60 Hz Frequency, 3 Pole, 5 Wires, 4X NEMA Rating, -40 to 75 deg C, Screw Terminal, Composite, Gray, 11.38 x 4.88 x 4.5 in Dimensions

Specifications

 Amperage Rating 30 A
 Application For Hubbellock® 3-pole 4-wire 30 A receptacle, switches and lighting controls and extra heavy duty industrial applications
 Brand Name Hubbell Premise Wiring
 Color Gray
 Dimensions 11.38 x 4.88 x 4.5 in
 Frequency Rating 60 Hz
 Horsepower 15 hp
 Manufacturer Part Number SETL3
 Material Composite
 NEMA Rating 4X
 Number of Poles 3
 Number of Wires 5
 Standards/Approvals UL 746C|CSA Certified
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type 2-Position Extra Heavy Duty Lever Actuated Standard Sized Foot Mount
 Video Links
 Voltage Rating 600 V AC

Features

▪ Accommodates 20- or 30 ATwist-Lock Receptacle
▪ Type 3R Rainproof or 12K Dust-tight
▪ Molded Valox Resists Abuse, Corrosion and Enhances Safety
