SES320B480Y ERICO SES(B), 320 KA, 277/480 V UN, 3PH Y 4W+G

Mouse over image to zoom, click to enlarge

  • SES320B480Y ERICO SES(B), 320 KA, 277/480 V UN, 3PH Y 4W+G
  • SES320B480Y ERICO SES(B), 320 KA, 277/480 V UN, 3PH Y 4W+G
  • SES320B480Y ERICO SES(B), 320 KA, 277/480 V UN, 3PH Y 4W+G
  • SES320B480Y ERICO SES(B), 320 KA, 277/480 V UN, 3PH Y 4W+G
  • SES320B480Y ERICO SES(B), 320 KA, 277/480 V UN, 3PH Y 4W+G

Description: nVent ERICO, SES320B480Y, Surge Protective Device, Series: SES320 B, 0 to 600 Hz Frequency, 200 kA Short Circuit, 20 kA Nominal Discharge, Modes of Protection: All modes Protected, Alarm Indicator, 3 ph, NEMA 4X Enclosure, Polycarbonate, 6.89 in H x 8.38 in W x 2.99 in D Dimensions

Manufacturer PN: SES320B480Y

UPC:  78480505562

Kendall Electric Inc PN: 4657569

Invoice Description:

SES320B480Y ERICO SES(B), 320 KA, 277/480 V UN, 3PH Y 4W+G


SPEC SHEET

How Can We Make This Page Better?

nVent ERICO SES320B480Y SES320 B Surge Protective Device, 0 to 600 Hz, 200 kA Short Circuit, 3 Phase

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

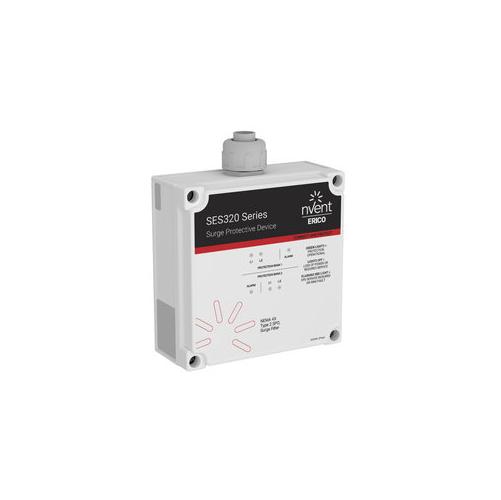

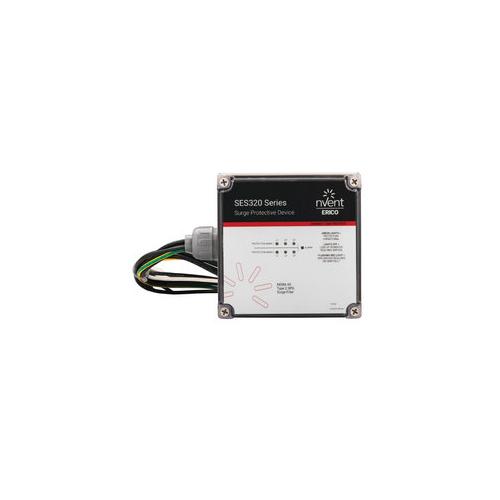

The nVent ERICO SES320 B Series of Surge Protective Devices (SPD) provides economical protection against damaging transients and surge currents. The B Series is a cUL 1449 listed SPD for Type 1 and Type 2 locations allowing for installation either on the line or load of service panels without requiring circuit breakers. With a 320 kA per phase surge rating, the SES320 B is well suited for category C locations. Typical applications for the nVent ERICO SES320 B Series include service entrances, distribution, branch panels, MCC, lighting panels, HVAC, and more. Featuring a NEMA 4X enclosure rating, the B series is also appropriate for use in outdoor applications.
nVent ERICO, SES320B480Y, Surge Protective Device, Series: SES320 B, 0 to 600 Hz Frequency, 200 kA Short Circuit, 20 kA Nominal Discharge, Modes of Protection: All modes Protected, Alarm Indicator, 3 ph, NEMA 4X Enclosure, Polycarbonate, 6.89 in H x 8.38 in W x 2.99 in D Dimensions

Specifications

 Application For Typical applications for the nVent ERICO SES320 B Series include service entrances, distribution, branch panels, MCC, lighting panels, HVAC and more
 Brand Name nVent ERICO

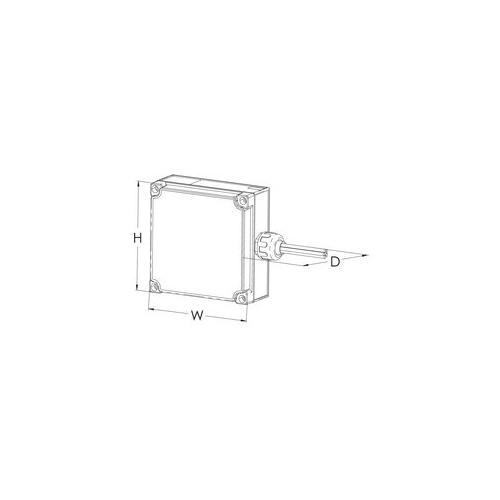

 Dimensions 6.89 in H x 8.38 in W x 2.99 in D
 Enclosure NEMA 4X
 Frequency Rating 0 to 600 Hz
 Indicator Alarm
 Manufacturer Part Number SES320B480Y
 Material Polycarbonate
 Modes of Protection All modes Protected
 Nominal Discharge Current 20 kA
 PART NUMBER KEYWORDS SES320B480Y ; 19101842 ; 784805055624 ; 78480505562 ; 0784805055624 ; 00784805055624
 Phase 3
 Series SES320 B
 Short Circuit Current Rating 200 kA
 Standards/Approvals CSA C22.2 No. 269.1|UL 1449 Edition 5 Type 1/2|ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C|ANSI/IEEE C62.41.1-2002 Cat A, Cat B, Cat C|ANSI/IEEE C62.45-2002 Cat A, Cat B, Cat C|PROP65

Features

▪ 320 kA 8/20 micros maximum surge rating per phase
▪ Excellent clamping and low UL voltage protection ratings
▪ Features relay alarming for power/phase loss and status of SPD health
▪ Compact design can be directly mounted to panel or installed in a small space
▪ Ground reference monitoring triggers an alarm when N-PE mode exceeds 20 V
▪ Optional Flush Mounting Plate
