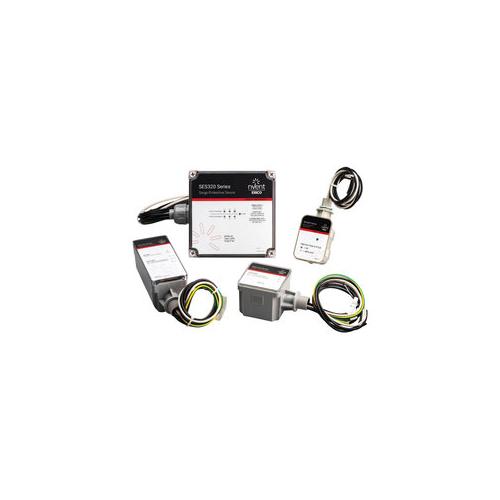

SES160F480Y ERICO SES(F) 160 KA, 277/480 V UN, 3PH

Mouse over image to zoom, click to enlarge

  • SES160F480Y ERICO SES(F) 160 KA, 277/480 V UN, 3PH
  • SES160F480Y ERICO SES(F) 160 KA, 277/480 V UN, 3PH
  • SES160F480Y ERICO SES(F) 160 KA, 277/480 V UN, 3PH
  • SES160F480Y ERICO SES(F) 160 KA, 277/480 V UN, 3PH
  • SES160F480Y ERICO SES(F) 160 KA, 277/480 V UN, 3PH

Description: nVent ERICO, SES160F480Y, Surge Protective Device, Series: SES160 F, 0 to 600 Hz Frequency, 200 kA Short Circuit, 20 kA Nominal Discharge, Modes of Protection: All modes Protected, Alarm Indicator, 3 ph, NEMA 4X Enclosure, Polycarbonate

Manufacturer PN: SES160F480Y

UPC:  78480502902

Kendall Electric Inc PN: 4657571

Invoice Description:

SES160F480Y ERICO SES(F) 160 KA, 277/480 V UN, 3PH


SPEC SHEET

▸ See All in Surge Panel Protectors


How Can We Make This Page Better?

nVent ERICO SES160F480Y SES160 F Surge Protective Device, 0 to 600 Hz, 200 kA Short Circuit, 3 Phase

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The nVent ERICO SES160F Series is an enhanced version of the SES160B Series. The SES160F Surge-Filter is robust, with a 160 kA per phase surge rating. The high surge rating increases both survivability and life cycle. With the addition of a filter nuisance high frequency transients on the power distribution system are attenuated, protecting sensitive equipment. cUL® 1449 Listed SPD for Type 2 locations. Applications include service entrance, distribution, branch panels, MCC, lighting panels, HVAC, A/V systems, IT equipment, and more.
nVent ERICO, SES160F480Y, Surge Protective Device, Series: SES160 F, 0 to 600 Hz Frequency, 200 kA Short Circuit, 20 kA Nominal Discharge, Modes of Protection: All modes Protected, Alarm Indicator, 3 ph, NEMA 4X Enclosure, Polycarbonate

Specifications

 Application For Applications include service entrance, distribution, branch panels, MCC, lighting panels, HVAC, A/V systems, IT equipment and more
 Brand Name nVent ERICO
 Enclosure NEMA 4X
 Frequency Rating 0 to 600 Hz
 Includes Ground Wire
 Indicator Alarm
 Manufacturer Part Number SES160F480Y
 Material Polycarbonate
 Modes of Protection All modes Protected
 Nominal Discharge Current 20 kA
 PART NUMBER KEYWORDS SES160F480Y ; 18988593 ; 784805029021 ; 78480502902 ; 0784805029021 ; 00784805029021
 Phase 3
 Series SES160 F
 Short Circuit Current Rating 200 kA
 Standards/Approvals CSA C22.2 No. 269.2|UL 1283 Edition 7|UL 1449 Edition 5 Type 2|ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C|ANSI/IEEE C62.41.1-2002 Cat A, Cat B, Cat C|ANSI/IEEE C62.45-2002 Cat A, Cat B, Cat C|PROP65

Features

▪ Compact design can be directly mounted to panel or installed in a small space
▪ Front-facing design eases installation and performance monitoring
▪ 160 kA 8/20 micros maximum surge rating per phase
▪ Up to 57 dB attenuation (10 kHz to 100 MHz)
▪ Optional Flush Mounting Plate
