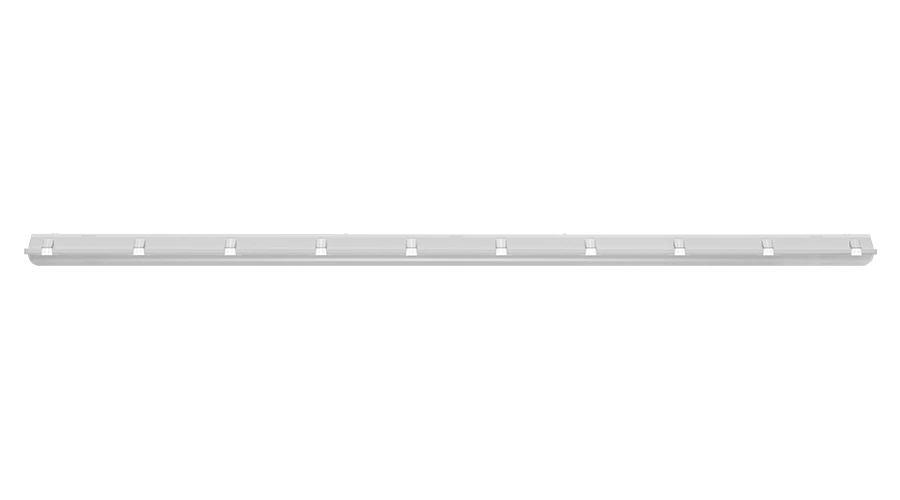

SEAL8 RAB WASHDOWN 8220-13700 LUMENS 100W/ 80W/ 60W FIELD ADJUSTABLE 3000/4000/5000K 120V-277V..

Mouse over image to zoom, click to enlarge

  • SEAL8 RAB WASHDOWN 8220-13700 LUMENS 100W/ 80W/ 60W FIELD ADJUSTABLE 3000/4000/5000K 120V-277V..
  • SEAL8 RAB WASHDOWN 8220-13700 LUMENS 100W/ 80W/ 60W FIELD ADJUSTABLE 3000/4000/5000K 120V-277V..
  • SEAL8 RAB WASHDOWN 8220-13700 LUMENS 100W/ 80W/ 60W FIELD ADJUSTABLE 3000/4000/5000K 120V-277V..

Description: RAB, SEAL8, LED Vapor Tight, Field-Adjustable, Series: SEAL, 120, 208, 240, 277 V, 0.92, 0.53, 0.46, 0.40 A, 60, 80, 100 W Lamp, 131 to 143 Lumens/W Light Output, 100000 hr Average Life, Warm Neutral Light, 3500 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, Diffused Polycarbonate Lens, 8220 to 13700 Lumens, NEMA 4X/IP66 Enclosure, V-Hook Mounting, 101.7 in H x 5.1 in W x 3.8 in D Dimensions

Manufacturer PN: SEAL8

UPC:  19255202389

Kendall Electric Inc PN: 4630986

Invoice Description:

SEAL8 RAB WASHDOWN 8220-13700 LUMENS 100W/ 80W/ 60W FIELD ADJUSTABLE 3000/4000/5000K 120V-277V..


SPEC SHEET

▸ See All in Indoor Surface Mount Fixtures


How Can We Make This Page Better?

RAB SEAL8 SEAL Field-Adjustable LED Vapor Tight, 120, 208, 240, 277 V

Log In for Pricing and Availability




Description

RAB, SEAL8, LED Vapor Tight, Field-Adjustable, Series: SEAL, 120, 208, 240, 277 V, 0.92, 0.53, 0.46, 0.40 A, 60, 80, 100 W Lamp, 131 to 143 Lumens/W Light Output, 100000 hr Average Life, Warm Neutral Light, 3500 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, Diffused Polycarbonate Lens, 8220 to 13700 Lumens, NEMA 4X/IP66 Enclosure, V-Hook Mounting, 101.7 in H x 5.1 in W x 3.8 in D Dimensions

Specifications

 Amperage Rating 0.92/0.53/0.46/0.40 A
 Average Life 100000 hr
 Ballast Type 0 to 10 V Dimmable
 Brand Name RAB
 Color Rendering Index CRI 80 CRI
 Color Temperature 3500 K
 Dimensions 101.7 in H x 5.1 in W x 3.8 in D
 Enclosure NEMA 4X/IP66
 Housing Material Polycarbonate
 Includes Dimming control wiring for 0-10V dimming systems
 Lamp Wattage 60, 80, 100 W
 Light Color Warm Neutral
 Light Output 131 to 143 Lumens/W
 Lumens 8220 to 13700 Lumens
 Manufacturer Part Number SEAL8
 Mounting Type V-Hook
 Series SEAL
 Standards/Approvals BAA Compliant|ANSI C78.377-2017|DLC 5.1|FCC|Mercury Free|RoHS|IESNA LM-79 and LM-80|NSF Certified|UL 94|UL Listed
 Type Field-Adjustable
 Voltage Rating 120/208/240/277 V

Features

▪ 0-10V dimming standard
