RAB Lighting Inc.
SEAL4 RAB SEAL 50/40/30W 5/4/3K 120V-277V..

Mouse over image to zoom, click to enlarge

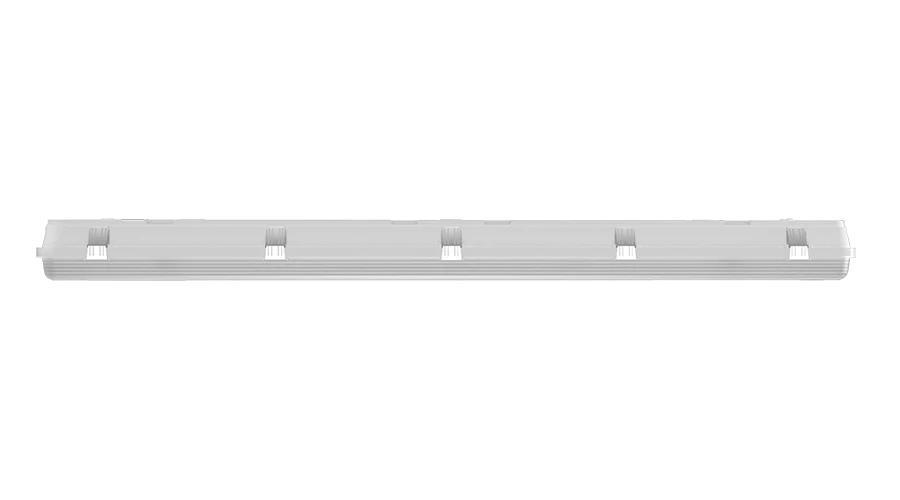

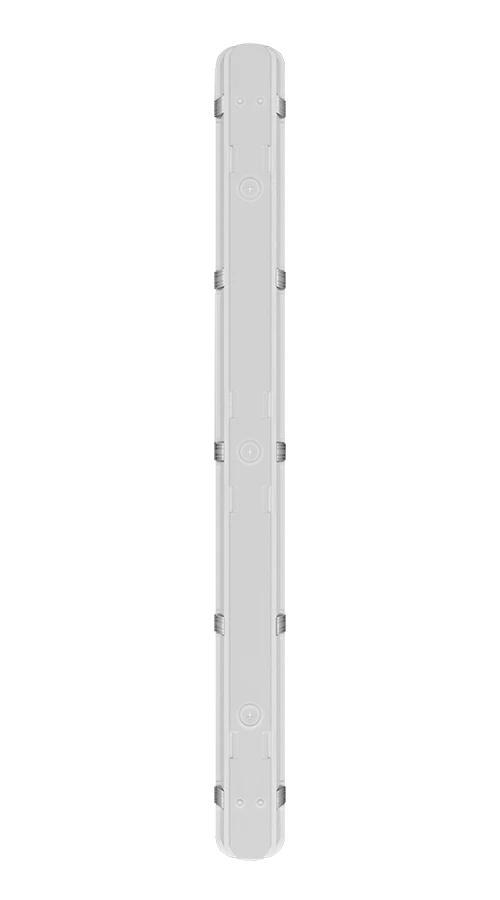

  • SEAL4 RAB SEAL 50/40/30W 5/4/3K 120V-277V..
  • SEAL4 RAB SEAL 50/40/30W 5/4/3K 120V-277V..
  • SEAL4 RAB SEAL 50/40/30W 5/4/3K 120V-277V..

Description: RAB Lighting, SEAL4, LED Vapor Tight, Field-Adjustable, Series: SEAL, 120, 208, 240, 277 V, 0.46, 0.26, 0.23, 0.20 A, 30, 40, 50 W Lamp, 130 to 142 Lumens/W Light Output, 100000 hr Average Life, Warm Neutral Light, 3500 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, Diffused Polycarbonate Lens, 4080 to 6800 Lumens, NEMA 4X/IP66 Enclosure, V-Hook Mounting, 49.6 in H x 4.5 in W x 3.7 in D Dimensions

Manufacturer PN: SEAL4

UPC:  19255202388

Kendall Electric Inc PN: 4647992

Invoice Description:

SEAL4 RAB SEAL 50/40/30W 5/4/3K 120V-277V..


SPEC SHEET

▸ See All in Indoor Surface Mount Fixtures


How Can We Make This Page Better?

RAB Lighting SEAL4 SEAL Field-Adjustable LED Vapor Tight, 120, 208, 240, 277 V

Log In for Pricing and Availability




Description

An ultra-economy linear LED washdown with field-adjustable wattage and CCT.
RAB Lighting, SEAL4, LED Vapor Tight, Field-Adjustable, Series: SEAL, 120, 208, 240, 277 V, 0.46, 0.26, 0.23, 0.20 A, 30, 40, 50 W Lamp, 130 to 142 Lumens/W Light Output, 100000 hr Average Life, Warm Neutral Light, 3500 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, Diffused Polycarbonate Lens, 4080 to 6800 Lumens, NEMA 4X/IP66 Enclosure, V-Hook Mounting, 49.6 in H x 4.5 in W x 3.7 in D Dimensions

Specifications

 Amperage Rating 0.46/0.26/0.23/0.20 A
 Average Life 100000 hr
 Ballast Type 0 to 10 V Dimmable
 Brand Name RAB Lighting
 Color Rendering Index CRI 80 CRI
 Color Temperature 3500 K
 Dimensions 49.6 in H x 4.5 in W x 3.7 in D
 Enclosure NEMA 4X/IP66
 Housing Material Polycarbonate
 Includes Dimming control wiring for 0-10V dimming systems
 Lamp Wattage 30, 40, 50 W
 Light Color Warm Neutral
 Light Output 130 to 142 Lumens/W
 Lumens 4080 to 6800 Lumens
 Manufacturer Part Number SEAL4
 Mounting Type V-Hook
 PART NUMBER KEYWORDS SEAL4 ; 19284739 ; 192552023887 ; 19255202388
 Series SEAL
 Standards/Approvals BAA Compliant|ANSI C78.377-2017|DLC 5.1|FCC|Mercury Free|RoHS|IESNA LM-79 and LM-80|NSF Certified|UL 94|UL Listed
 Type Field-Adjustable
 Voltage Rating 120/208/240/277 V

Features

▪ 0-10V dimming standard
